1N4007 Information
1N4007 by Micro Commercial Components is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Part Details for 1N4007

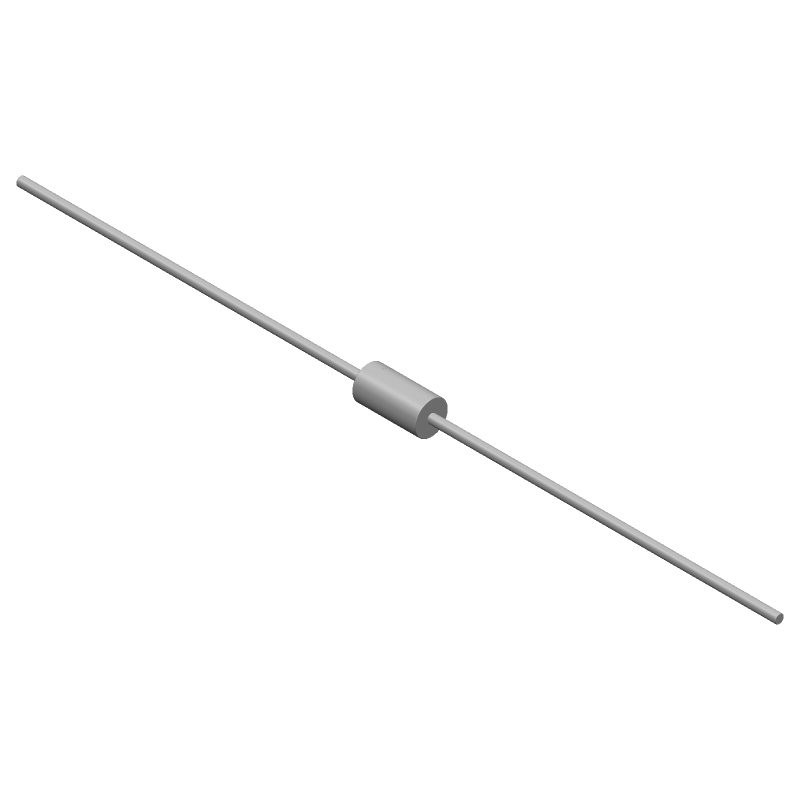

1N4007 CAD Models
1N4007 Part Data Attributes
|
|
1N4007
Micro Commercial Components
Buy Now
Datasheet
|
Compare Parts:
1N4007
Micro Commercial Components
Rectifier Diode, 1 Element, 1A, 1000V V(RRM), Silicon, DO-41, PLASTIC PACKAGE-2
|
| Rohs Code | No | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICRO COMMERCIAL COMPONENTS CORP | |
| Part Package Code | DO-41 | |
| Package Description | PLASTIC PACKAGE-2 | |
| Pin Count | 2 | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.80 | |
| Samacsys Manufacturer | MCC | |
| Additional Feature | METALLURGICALLY BONDED | |
| Case Connection | ISOLATED | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 1 V | |
| JEDEC-95 Code | DO-41 | |
| JESD-30 Code | O-PALF-W2 | |
| JESD-609 Code | e0 | |
| Non-rep Pk Forward Current-Max | 30 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 175 °C | |
| Output Current-Max | 1 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | ROUND | |
| Package Style | LONG FORM | |
| Peak Reflow Temperature (Cel) | 240 | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 1000 V | |
| Reverse Current-Max | 5 µA | |
| Reverse Recovery Time-Max | 2 µs | |
| Surface Mount | NO | |
| Terminal Finish | TIN LEAD | |
| Terminal Form | WIRE | |
| Terminal Position | AXIAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
Alternate Parts for 1N4007
This table gives cross-reference parts and alternative options found for 1N4007. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 1N4007, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| UF4007GPL-BP | Micro Commercial Components | Check for Price | Rectifier Diode, | 1N4007 vs UF4007GPL-BP |
| 1N4007 | Solitron Devices Inc | Check for Price | Rectifier Diode, 1 Element, 1A, 1000V V(RRM), Silicon, MINIATURE PACKAGE-2 | 1N4007 vs 1N4007 |
| 1N4007RL | onsemi | Check for Price | Standard Rectifier, 1000 V, 1.0 A, Axial Lead 5.20x2.70mm, 25.4x0.71mm Pkg, Lead len/dia, 5000-REEL | 1N4007 vs 1N4007RL |
| 1N4007G | American Power Devices Inc | Check for Price | Rectifier Diode, 1 Element, 1A, 1000V V(RRM) | 1N4007 vs 1N4007G |
| UF4007 | Changzhou Starsea Electronics Co Ltd | Check for Price | Rectifier Diode | 1N4007 vs UF4007 |
| UF4007 | Jinan Gude Electronic Device Co Ltd | Check for Price | Rectifier Diode, 1 Element, 1A, 1000V V(RRM) | 1N4007 vs UF4007 |
| UF4007T&A | Continental Device India Ltd | Check for Price | Rectifier Diode, | 1N4007 vs UF4007T&A |
| UF4007 | SEMIKRON | Check for Price | Rectifier Diode, 1 Element, 1A, 1000V V(RRM), Silicon, DO-204AL, PLASTIC, DO-41, 2 PIN | 1N4007 vs UF4007 |
| MUR1100 | Microsemi Corporation | Check for Price | Rectifier Diode, 1 Element, 1A, 1000V V(RRM) | 1N4007 vs MUR1100 |
| 1N4007 | Taiwan Semiconductor | Check for Price | Rectifier Diode, 1 Element, 1A, 1000V V(RRM), Silicon, DO-41, GREEN, PLASTIC PACKAGE-2 | 1N4007 vs 1N4007 |
1N4007 Frequently Asked Questions (FAQ)
-
The 1N4007 can handle a maximum surge current of 30A for a duration of 1/2 cycle at 60Hz.
-
No, the 1N4007 is not suitable for high-frequency switching applications due to its relatively high reverse recovery time (trr) of 3μs.
-
Yes, the 1N4007 can be used in a bridge rectifier circuit, but it's essential to ensure that the diodes are properly heat-sinked and the circuit is designed to handle the maximum surge current rating.
-
The 1N4007 can operate safely in the temperature range of -65°C to 150°C, but the maximum junction temperature should not exceed 150°C.
-
No, the 1N4007 is a standard recovery diode, not a fast-recovery diode. It has a relatively slow reverse recovery time (trr) of 3μs.
