Diodes / Rectifier Diodes / 1N4002GP
Datasheets
1N4002GP by:

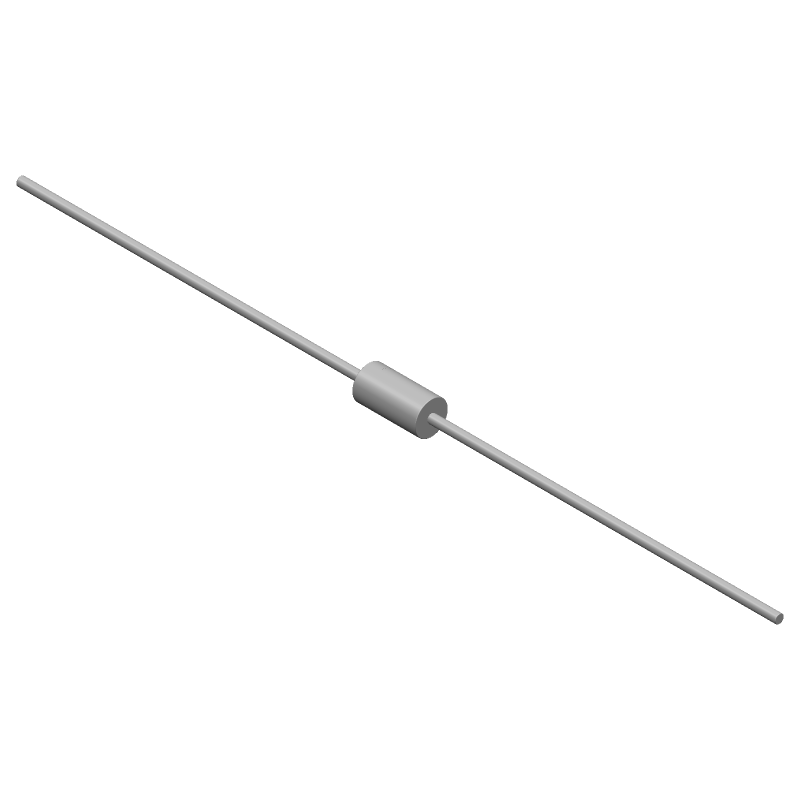

Rectifier Diode, 1 Element, 1A, 100V V(RRM), Silicon, DO-41, PLASTIC PACKAGE-2

Part Details for 1N4002GP by Micro Commercial Components

Results Overview of 1N4002GP by Micro Commercial Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Space Technology Aerospace and Defense Energy and Power Systems

1N4002GP Information

1N4002GP by Micro Commercial Components is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Part Details for 1N4002GP

1N4002GP Part Data Attributes

Parametric Data
1N4002GP Micro Commercial Components
Buy Now Datasheet
Compare Parts:
1N4002GP Micro Commercial Components Rectifier Diode, 1 Element, 1A, 100V V(RRM), Silicon, DO-41, PLASTIC PACKAGE-2
Rohs Code No
Part Life Cycle Code Not Recommended
Ihs Manufacturer MICRO COMMERCIAL COMPONENTS CORP
Part Package Code DO-41
Package Description PLASTIC PACKAGE-2
Pin Count 2
Reach Compliance Code unknown
ECCN Code EAR99
HTS Code 8541.10.00.80
Samacsys Manufacturer MCC
Additional Feature METALLURGICALLY BONDED
Case Connection ISOLATED
Configuration SINGLE
Diode Element Material SILICON
Diode Type RECTIFIER DIODE
Forward Voltage-Max (VF) 1.1 V
JEDEC-95 Code DO-41
JESD-30 Code O-PALF-W2
JESD-609 Code e3
Non-rep Pk Forward Current-Max 30 A
Number of Elements 1
Number of Phases 1
Number of Terminals 2
Output Current-Max 1 A
Package Body Material PLASTIC/EPOXY
Package Shape ROUND
Package Style LONG FORM
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Rep Pk Reverse Voltage-Max 100 V
Reverse Current-Max 5 µA
Reverse Recovery Time-Max 2 µs
Surface Mount NO
Terminal Finish Tin (Sn)
Terminal Form WIRE
Terminal Position AXIAL
Time@Peak Reflow Temperature-Max (s) 3

Alternate Parts for 1N4002GP

This table gives cross-reference parts and alternative options found for 1N4002GP. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 1N4002GP, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
1N4002GPPTR-RPCU Central Semiconductor Corp Check for Price Rectifier Diode, 1 Element, 1A, 100V V(RRM), Silicon, DO-41, DO-41SP, 2 PIN 1N4002GP vs 1N4002GPPTR-RPCU
1N4002GP General Instrument Corp Check for Price Rectifier Diode, 1 Element, 1A, 100V V(RRM), Silicon, DO-204AL, 1N4002GP vs 1N4002GP
1N4002GPE/51 Vishay Semiconductors Check for Price Rectifier Diode, 1 Element, 1A, 100V V(RRM), Silicon, DO-204AL, PLASTIC, DO-41, 2 PIN 1N4002GP vs 1N4002GPE/51
1N4002GPT26R Fairchild Semiconductor Corporation Check for Price Rectifier Diode, 1 Element, 1A, 100V V(RRM), Silicon, DO-41 1N4002GP vs 1N4002GPT26R
1N4002GP-B Micro Commercial Components Check for Price Rectifier Diode, 1N4002GP vs 1N4002GP-B
1N4002GP Fairchild Semiconductor Corporation Check for Price Rectifier Diode, 1 Element, 1A, 100V V(RRM), Silicon, DO-41, D4, 2 PIN 1N4002GP vs 1N4002GP
1N4002GPE/100 Vishay Semiconductors Check for Price Rectifier Diode, 1 Element, 1A, 100V V(RRM), Silicon, DO-204AL, PLASTIC, DO-41, 2 PIN 1N4002GP vs 1N4002GPE/100
Part Number Manufacturer Composite Price Description Compare
1N4002GP-BP Micro Commercial Components Check for Price Rectifier Diode, 1 Element, 1A, 100V V(RRM), Silicon, DO-41, ROHS COMPLIANT, PLASTIC PACKAGE-2 1N4002GP vs 1N4002GP-BP
1N4002GP-AP Micro Commercial Components Check for Price Rectifier Diode, 1 Element, 1A, 100V V(RRM), Silicon, DO-41, ROHS COMPLIANT, PLASTIC PACKAGE-2 1N4002GP vs 1N4002GP-AP
1N4002GPAMP Fagor Electrónica Check for Price Rectifier Diode, 1 Element, 1A, 100V V(RRM), Silicon, DO-204AL, DO-41, 2 PIN 1N4002GP vs 1N4002GPAMP
1N4002GPT26A Fairchild Semiconductor Corporation Check for Price Rectifier Diode, 1 Element, 1A, 100V V(RRM), Silicon, DO-41 1N4002GP vs 1N4002GPT26A
1N4002GP Surge Components Inc Check for Price Rectifier Diode, 1 Element, 1A, Silicon, DO-41, DO-41, 2 PIN 1N4002GP vs 1N4002GP
1N4002GPPBK Central Semiconductor Corp Check for Price Rectifier Diode, 1 Element, 1A, 100V V(RRM), Silicon, DO-41 1N4002GP vs 1N4002GPPBK
1N4002GP-TP Micro Commercial Components Check for Price Rectifier Diode, 1 Element, 1A, 100V V(RRM), Silicon, DO-41, ROHS COMPLIANT, PLASTIC PACKAGE-2 1N4002GP vs 1N4002GP-TP
1N4002GP/64 Vishay Semiconductors Check for Price Rectifier Diode, 1 Element, 1A, 100V V(RRM), Silicon, DO-204AL, PLASTIC, DO-41, 2 PIN 1N4002GP vs 1N4002GP/64
BYT51B-TR Vishay Intertechnologies Check for Price Rectifier Diode, Avalanche, 1 Element, 1A, 100V V(RRM), Silicon, HALOGEN FREE AND ROHS COMPLIANT, HERMETIC SEALED, GLASS PACKAGE-2 1N4002GP vs BYT51B-TR
1N4002GPTR Fagor Electrónica Check for Price Rectifier Diode, 1 Element, 1A, 100V V(RRM), Silicon, DO-204AL, DO-41, 2 PIN 1N4002GP vs 1N4002GPTR
