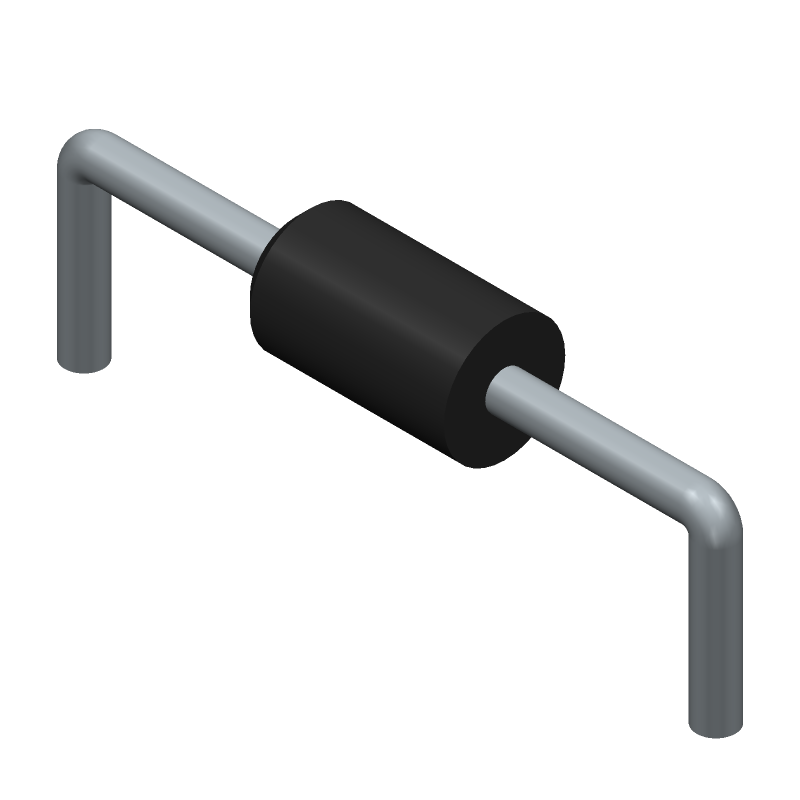

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 1N4002G by onsemi
Results Overview of 1N4002G by onsemi
- Distributor Offerings: (33 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Space Technology
Aerospace and Defense
Energy and Power Systems
1N4002G Information
1N4002G by onsemi is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for 1N4002G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
42K2816
|
Newark | Standard Diode, 1A, 100V, 59-10, Repetitive Peak Reverse Voltage:100V, Average Forward Current:1A, Diode Configuration:Single, Forward Voltage Max:1.1V, Reverse Recovery Time:-, Forward Surge Current:30A, Diode Case Style:Do-204Al Rohs Compliant: Yes |Onsemi 1N4002G RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 7515 |
|
$0.0440 / $0.1820 | Buy Now |
|
DISTI #
1N4002GOS-ND
|
DigiKey | DIODE STANDARD 100V 1A AXIAL Min Qty: 1 Lead time: 18 Weeks Container: Bulk |
9062 In Stock |
|
$0.0344 / $0.1800 | Buy Now |
|
DISTI #
42K2816
|
Avnet Americas | Standard Recovery Diode, 100 V, 1 A, Single, 1.1 V, 30 A - Bulk (Alt: 42K2816) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 15 Weeks, 1 Days Container: Bulk | 7565 Partner Stock |
|
$0.0590 / $0.1900 | Buy Now |
|
DISTI #
1N4002G
|
Avnet Americas | Standard Recovery Diode, 100 V, 1 A, Single, 1.1 V, 30 A - Bulk (Alt: 1N4002G) RoHS: Compliant Min Qty: 22000 Package Multiple: 1000 Lead time: 18 Weeks, 0 Days Container: Bulk | 0 |
|
$0.0306 / $0.0336 | Buy Now |
|
DISTI #
863-1N4002G
|
Mouser Electronics | Rectifiers 100V 1A Standard RoHS: Compliant | 22159 |
|
$0.0350 / $0.1700 | Buy Now |
|
DISTI #
P40:2555_12572527
|
Arrow Electronics | Diode Switching 100V 1A 2-Pin DO-41 Bag Min Qty: 1 Package Multiple: 1 Lead time: 98 Weeks Date Code: 2308 | Europe - 42454 |
|
$0.0211 / $0.0686 | Buy Now |
|
DISTI #
V36:1790_07296349
|
Arrow Electronics | Diode Switching 100V 1A 2-Pin DO-41 Bag Min Qty: 1 Package Multiple: 1 Lead time: 18 Weeks Date Code: 2344 | Americas - 25727 |
|
$0.0317 / $0.1633 | Buy Now |
|
DISTI #
E02:0323_00076466
|
Arrow Electronics | Diode Switching 100V 1A 2-Pin DO-41 Bag Min Qty: 1 Package Multiple: 1 Lead time: 18 Weeks Date Code: 2427 | Europe - 13500 |
|
$0.0322 / $0.1657 | Buy Now |
|
DISTI #
V79:2366_17789608
|
Arrow Electronics | Diode Switching 100V 1A 2-Pin DO-41 Bag Min Qty: 1 Package Multiple: 1 Lead time: 48 Weeks Date Code: 2247 | Americas - 362 |
|
$0.0317 / $0.1633 | Buy Now |
|
|
Future Electronics | 1N4002 Series 1 A 100 V Axial Lead Standard Recovery Rectifier - CASE 59-10 RoHS: Compliant pbFree: Yes Min Qty: 1 Package Multiple: 1 Lead time: 18 Weeks Container: Box | 13095Box |
|
$0.0300 / $0.0343 | Buy Now |
Part Details for 1N4002G
1N4002G CAD Models
1N4002G Part Data Attributes
|
|
1N4002G
onsemi
Buy Now
Datasheet
|
Compare Parts:
1N4002G
onsemi
Standard Recovery Rectifier, 100 V, 1.0 A, Axial Lead 5.20x2.70mm, 25.4x0.71mm Pkg, Lead len/dia, 1000-BLKBG
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | Axial Lead 5.20x2.70mm, 25.4x0.71mm Pkg, Lead len/dia | |
| Pin Count | 2 | |
| Manufacturer Package Code | 59-10 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.80 | |
| Factory Lead Time | 15 Weeks, 1 Day | |
| Samacsys Manufacturer | onsemi | |
| Application | GENERAL PURPOSE | |
| Case Connection | ISOLATED | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 1.1 V | |
| JEDEC-95 Code | DO-41 | |
| JESD-30 Code | O-PALF-W2 | |
| JESD-609 Code | e3 | |
| Non-rep Pk Forward Current-Max | 30 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -65 °C | |
| Output Current-Max | 1 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | ROUND | |
| Package Style | LONG FORM | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 100 V | |
| Reverse Current-Max | 10 µA | |
| Reverse Test Voltage | 100 V | |
| Surface Mount | NO | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | WIRE | |
| Terminal Position | AXIAL |
1N4002G Frequently Asked Questions (FAQ)
-
The recommended footprint for the 1N4002G is a standard SOD-123 package with a pad size of 2.5mm x 1.5mm.
-
While the 1N4002G is a standard rectifier diode, it's not recommended for high-frequency switching applications due to its relatively high reverse recovery time (trr) of 3μs. For high-frequency applications, consider using a faster diode like the 1N4933G.
-
To ensure the 1N4002G can handle the maximum allowed Vrrm, make sure to follow proper PCB layout and design guidelines, including using a sufficient creepage distance and clearance, and avoiding any voltage spikes or transients that could exceed the rated Vrrm.
-
The junction-to-case thermal resistance (RθJC) of the 1N4002G is approximately 20°C/W. This value is not explicitly stated in the datasheet, but can be estimated based on the package type and size.
-
The 1N4002G is rated for operation up to 150°C, but its performance may degrade at higher temperatures. If your application requires operation above 125°C, consider using a diode with a higher temperature rating, such as the 1N4007G.
