1KSMB7.5CA Information
1KSMB7.5CA by Littelfuse Inc is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for 1KSMB7.5CA
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
01P9644
|
Newark | Tvs Diode 1K Smb Suf Mt Tr/ Tr Rohs Compliant: Yes |Littelfuse 1KSMB7.5CA RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.2220 / $0.2950 | Buy Now |
|
DISTI #
1KSMB7.5CA-ND
|
DigiKey | TVS DIODE 6.4VWM 11.3V DO214AA Min Qty: 3000 Lead time: 12 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$0.2095 / $0.2359 | Buy Now |
|
DISTI #
576-1KSMB7.5CA
|
Mouser Electronics | ESD Protection Diodes / TVS Diodes 7.5V 1KW 5% BiDirectional RoHS: Compliant | 0 |
|
$0.2090 / $1.0800 | Order Now |
|
DISTI #
75572772
|
RS | TVS Diode 1K SMB Suf MT TR Min Qty: 3000 Package Multiple: 1 Lead time: 8 Weeks, 0 Days Container: Bulk | 0 |
|
$0.4150 / $0.4510 | RFQ |
|
DISTI #
1KSMB7.5CA
|
TTI | ESD Protection Diodes / TVS Diodes 7.5V 1KW 5% BiDirectional RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Container: Reel | Americas - 0 |
|
$0.2070 / $0.2330 | Buy Now |
Part Details for 1KSMB7.5CA

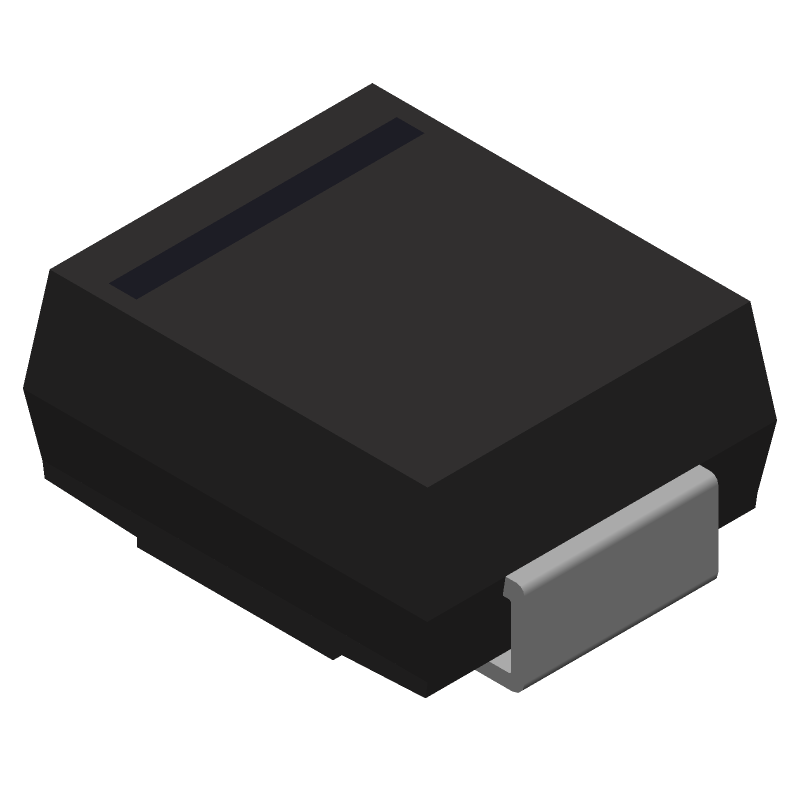

1KSMB7.5CA CAD Models
1KSMB7.5CA Part Data Attributes
|
|
1KSMB7.5CA
Littelfuse Inc
Buy Now
Datasheet
|
Compare Parts:
1KSMB7.5CA
Littelfuse Inc
Trans Voltage Suppressor Diode, 1000W, 6.4V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AA, HALOGEN FREE AND ROHS COMPLIANT, PLASTIC, SMB, 2 PIN
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | LITTELFUSE INC | |
| Part Package Code | DO-214AA | |
| Pin Count | 2 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Samacsys Manufacturer | LITTELFUSE | |
| Additional Feature | EXCELLENT CLAMPING CAPABILITY | |
| Breakdown Voltage-Max | 7.88 V | |
| Breakdown Voltage-Min | 7.13 V | |
| Breakdown Voltage-Nom | 7.5 V | |
| Clamping Voltage-Max | 11.3 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JEDEC-95 Code | DO-214AA | |
| JESD-30 Code | R-PDSO-C2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Peak Rev Power Dis-Max | 1000 W | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | BIDIRECTIONAL | |
| Power Dissipation-Max | 5 W | |
| Qualification Status | Not Qualified | |
| Reference Standard | UL RECOGNIZED | |
| Rep Pk Reverse Voltage-Max | 6.4 V | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | C BEND | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 40 |
1KSMB7.5CA Frequently Asked Questions (FAQ)
-
The recommended mounting torque for the 1KSMB7.5CA is 0.5 N·m (0.37 lb·in) to 1.5 N·m (1.06 lb·in) as per the manufacturer's guidelines.
-
While the 1KSMB7.5CA has a high operating temperature range of -55°C to 150°C, it's essential to derate the device's voltage and current ratings above 125°C to ensure reliable operation.
-
The 1KSMB7.5CA is designed to withstand high surge currents, with a peak pulse current rating of 100A. However, it's crucial to ensure that the device is properly sized for the specific application to prevent overheating or damage.
-
Yes, the 1KSMB7.5CA is compatible with lead-free soldering processes, with a peak soldering temperature of 260°C for 10 seconds.
-
The typical response time of the 1KSMB7.5CA is less than 1ns, making it suitable for high-speed applications.
