1N5233B-TAP Information
1N5233B-TAP by Vishay Intertechnologies is a Zener Diode.
Zener Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for 1N5233B-TAP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
18M3536
|
Newark | Zener Diode, 500Mw, 6V, Do-35, Zener Voltage Nom:6V, Power Dissipation:500Mw, Diode Case Style:Do-35, No. Of Pins:2Pins, Operating Temperature Max:175°C, Diode Mounting:Through Hole, Product Range:-, Qualification:- Rohs Compliant: Yes |Vishay 1N5233B-TAP RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 3162 |
|
$0.0060 | Buy Now |
|
DISTI #
18M3536
|
Avnet Americas | ZENER DIODE DO35 - Product that comes on tape, but is not reeled (Alt: 18M3536) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 11 Weeks, 1 Days Container: Ammo Pack | 3162 Partner Stock |
|
$0.0630 | Buy Now |
|
DISTI #
1N5233B-TAP
|
Avnet Americas | ZENER DIODE DO35 - Ammo Pack (Alt: 1N5233B-TAP) RoHS: Compliant Min Qty: 30000 Package Multiple: 30000 Lead time: 9 Weeks, 0 Days Container: Ammo Pack | 0 |
|
$0.0199 / $0.0215 | Buy Now |
|
DISTI #
78-1N5233B-TAP
|
Mouser Electronics | Zener Diodes 6.0 Volt 0.5W 5% RoHS: Compliant | 85001 |
|
$0.0210 / $0.1000 | Buy Now |
|
DISTI #
V72:2272_18190647
|
Arrow Electronics | Diode Zener Single 6V 5% 500mW 2-Pin DO-35 Ammo Min Qty: 1 Package Multiple: 1 Lead time: 9 Weeks Date Code: 1738 Container: Cut Strips | Americas - 30005 |
|
$0.0154 / $0.0205 | Buy Now |
|
DISTI #
31267611
|
Verical | Diode Zener Single 6V 5% 500mW 2-Pin DO-35 Ammo Min Qty: 382 Package Multiple: 1 Date Code: 1738 | Americas - 30005 |
|
$0.0154 / $0.0185 | Buy Now |
|
|
Bristol Electronics | 10000 |
|
RFQ | ||
|
|
Quest Components | 8000 |
|
$0.0380 / $0.1900 | Buy Now |
Part Details for 1N5233B-TAP
1N5233B-TAP CAD Models
1N5233B-TAP Part Data Attributes
|
|

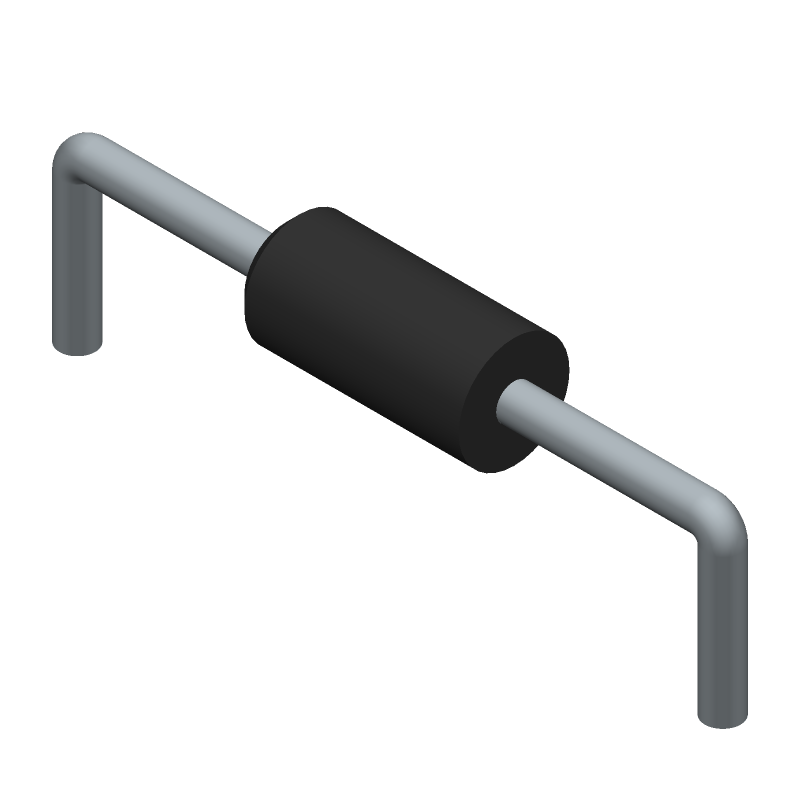

1N5233B-TAP
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
1N5233B-TAP
Vishay Intertechnologies
Zener Diode, 6V V(Z), 5%, 0.5W, Silicon, Unidirectional, DO-204AH, DO-35, 2 PIN
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | DO-35, 2 PIN | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 9 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Case Connection | ISOLATED | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | ZENER DIODE | |
| Dynamic Impedance-Max | 7 Ω | |
| JEDEC-95 Code | DO-204AH | |
| JESD-30 Code | O-PALF-W2 | |
| JESD-609 Code | e2 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 175 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | ROUND | |
| Package Style | LONG FORM | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | UNIDIRECTIONAL | |
| Power Dissipation-Max | 0.5 W | |
| Qualification Status | Not Qualified | |
| Reference Standard | AEC-Q101 | |
| Reference Voltage-Nom | 6 V | |
| Surface Mount | NO | |
| Technology | ZENER | |
| Terminal Finish | Tin/Silver (Sn96.5Ag3.5) | |
| Terminal Form | WIRE | |
| Terminal Position | AXIAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Voltage Tol-Max | 5% | |
| Working Test Current | 20 mA |
