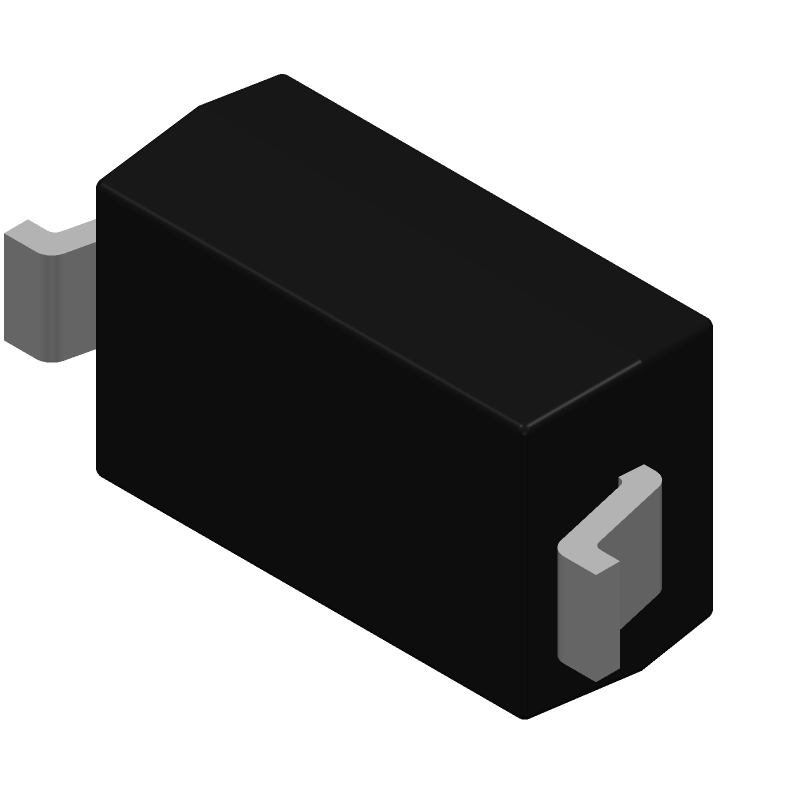

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 1N4148W-TPS01 by Micro Commercial Components
Results Overview of 1N4148W-TPS01 by Micro Commercial Components
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Electronic Manufacturing
Telecommunications
1N4148W-TPS01 Information
1N4148W-TPS01 by Micro Commercial Components is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| 1N4148WS | Toshiba Electronic Devices & Storage Corporation | Switching Diode, 100 V, 0.25 A, 2 in 1, SOD-323 | |
| 1N4148WT | Toshiba Electronic Devices & Storage Corporation | Switching Diode, 100 V, 0.25 A, SOD-523 |
Price & Stock for 1N4148W-TPS01
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
353-1N4148W-TPS01-ND
|
DigiKey | DIODE STANDARD 100V 150MA SOD123 Min Qty: 3000 Lead time: 16 Weeks Container: Bulk | Temporarily Out of Stock |
|
$0.0309 | Buy Now |
|
DISTI #
833-1N4148W-TPS01
|
Mouser Electronics | Small Signal Switching Diodes 400mW HIGH SPEED SWITCHING DIODES | 0 |
|
$0.0160 / $0.1800 | Order Now |
|
|
Cytech Systems Limited | 1000 |
|
RFQ | ||
|
|
Vyrian | Diodes | 1393 |
|
RFQ |
Part Details for 1N4148W-TPS01
1N4148W-TPS01 CAD Models
1N4148W-TPS01 Part Data Attributes
|
|
1N4148W-TPS01
Micro Commercial Components
Buy Now
Datasheet
|
Compare Parts:
1N4148W-TPS01
Micro Commercial Components
Rectifier Diode, 100V V(RRM),
|
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICRO COMMERCIAL COMPONENTS CORP | |
| Reach Compliance Code | unknown | |
| Samacsys Manufacturer | MCC | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 0.715 V | |
| Rep Pk Reverse Voltage-Max | 100 V | |
| Reverse Current-Max | 50 µA | |
| Reverse Recovery Time-Max | 0.004 µs |
1N4148W-TPS01 Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for the 1N4148W-TPS01 is between 250°C to 260°C for a maximum of 10 seconds.
-
Yes, the 1N4148W-TPS01 is suitable for high-frequency applications due to its low capacitance and fast switching time.
-
The maximum allowable voltage for the 1N4148W-TPS01 is 100V, but it's recommended to operate it at a maximum of 75V to ensure reliability.
-
Yes, the 1N4148W-TPS01 can be used in switching power supplies due to its fast switching time and low voltage drop.
-
Yes, the 1N4148W-TPS01 is suitable for automotive applications due to its high reliability and ability to withstand high temperatures.
