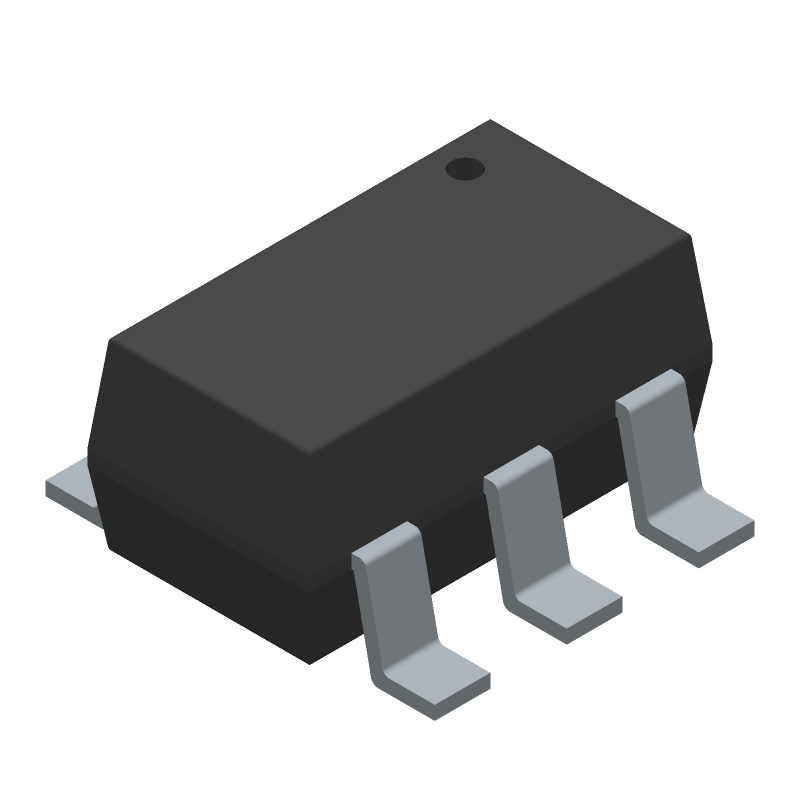

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 1EDN8511BXUSA1 by Infineon Technologies AG
Results Overview of 1EDN8511BXUSA1 by Infineon Technologies AG
- Distributor Offerings: (15 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Automotive
1EDN8511BXUSA1 Information
1EDN8511BXUSA1 by Infineon Technologies AG is an MOSFET Driver.
MOSFET Drivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for 1EDN8511BXUSA1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
93AC7394
|
Newark | Gate Driver, Gan Hemt, Igbt, 1Ch, Sot-23, No. Of Channels:1Channels, Gate Driver Type:Non-Isolated, Driver Configuration:Low Side, Power Switch Type:Gan Hemt, Igbt, Mosfet, No. Of Pins:6Pins, Ic Case/Package:Sot-23, Sink Current:8Arohs Compliant: Yes |Infineon 1EDN8511BXUSA1 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 691 |
|
$0.2310 / $0.4880 | Buy Now |
|
DISTI #
01AM1365
|
Newark | Gate Driver Ic, Gan Hemt, 1Ch, Sot-23-6 Rohs Compliant: Yes |Infineon 1EDN8511BXUSA1 RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 1 Container: Reel | 0 |
|
$0.2440 | Buy Now |
|
DISTI #
1EDN8511BXUSA1CT-ND
|
DigiKey | IC GATE DRVR LOW-SIDE SOT23-6 Min Qty: 1 Lead time: 13 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
33560 In Stock |
|
$0.2448 / $0.5900 | Buy Now |
|
DISTI #
1EDN8511BXUSA1
|
Avnet Americas | - Tape and Reel (Alt: 1EDN8511BXUSA1) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 13 Weeks, 0 Days Container: Reel | 3000 |
|
$0.2218 / $0.2360 | Buy Now |
|
DISTI #
93AC7394
|
Avnet Americas | - Tape and Reel (Alt: 93AC7394) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 111 Weeks, 0 Days Container: Reel | 896 Partner Stock |
|
$0.2970 / $0.4910 | Buy Now |
|
DISTI #
726-1EDN8511BXUSA1
|
Mouser Electronics | Gate Drivers DRIVER IC RoHS: Compliant | 53782 |
|
$0.2410 / $0.5400 | Buy Now |
|
DISTI #
V72:2272_19082728
|
Arrow Electronics | Driver 2-OUT Low Side Half Brdg Inv/Non-Inv 6-Pin SOT-23 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 13 Weeks Date Code: 2223 Container: Cut Strips | Americas - 769 |
|
$0.2361 / $0.2786 | Buy Now |
|
|
Future Electronics | 1EDN8511B Series 1-Ch 4.5 V to 20 V 4 A/8 A SMT Gate Driver IC - SOT23-6 RoHS: Compliant pbFree: Yes Min Qty: 3000 Package Multiple: 3000 Lead time: 13 Weeks Container: Reel | 3000Reel |
|
$0.2500 / $0.2600 | Buy Now |
|
DISTI #
79014668
|
Verical | Driver 2-OUT Low Side Half Brdg Inv/Non-Inv 6-Pin SOT-23 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Date Code: 2411 | Americas - 27000 |
|
$0.2965 | Buy Now |
|
DISTI #
63378642
|
Verical | Driver 2-OUT Low Side Half Brdg Inv/Non-Inv 6-Pin SOT-23 T/R RoHS: Compliant Min Qty: 25 Package Multiple: 1 Date Code: 2223 | Americas - 769 |
|
$0.2361 / $0.2439 | Buy Now |
Part Details for 1EDN8511BXUSA1
1EDN8511BXUSA1 CAD Models
1EDN8511BXUSA1 Part Data Attributes
|
|
1EDN8511BXUSA1
Infineon Technologies AG
Buy Now
Datasheet
|
Compare Parts:
1EDN8511BXUSA1
Infineon Technologies AG
Buffer/Inverter Based MOSFET Driver,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | INFINEON TECHNOLOGIES AG | |
| Package Description | SOT-23, 6 PIN | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 13 Weeks | |
| Samacsys Manufacturer | Infineon | |
| Additional Feature | JUNCTION TEMPERATURE IS CONSIDERED | |
| High Side Driver | NO | |
| Interface IC Type | BUFFER OR INVERTER BASED MOSFET DRIVER | |
| JESD-30 Code | R-PDSO-G6 | |
| JESD-609 Code | e3 | |
| Length | 2.9 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Characteristics | PUSH-PULL | |
| Output Peak Current Limit-Nom | 4 A | |
| Output Polarity | TRUE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LSSOP | |
| Package Equivalence Code | TSOP6,.11,37 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, LOW PROFILE, SHRINK PITCH | |
| Seated Height-Max | 1.45 mm | |
| Supply Voltage-Max | 20 V | |
| Supply Voltage-Min | 4.5 V | |
| Supply Voltage-Nom | 12 V | |
| Surface Mount | YES | |
| Terminal Finish | Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL | |
| Turn-off Time | 0.025 µs | |
| Turn-on Time | 0.025 µs | |
| Width | 1.6 mm |
Alternate Parts for 1EDN8511BXUSA1
This table gives cross-reference parts and alternative options found for 1EDN8511BXUSA1. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 1EDN8511BXUSA1, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 1EDN8511BXTSA1 | Infineon Technologies AG | Check for Price | Buffer/Inverter Based MOSFET Driver, | 1EDN8511BXUSA1 vs 1EDN8511BXTSA1 |
1EDN8511BXUSA1 Frequently Asked Questions (FAQ)
-
Infineon provides a recommended PCB layout in their application note AN2014-01, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance.
-
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended thermal design guidelines, use a suitable thermal interface material, and consider derating the device's power handling capabilities according to the temperature derating curve provided in the datasheet.
-
The 1EDN8511BXUSA1 has built-in ESD protection, but it's still recommended to follow standard ESD handling precautions during assembly and handling to prevent damage. Additionally, the device should be connected to a suitable ESD protection network at the system level.
-
While the 1EDN8511BXUSA1 is designed for isolated power supplies, it can be used in non-isolated designs with proper consideration of the device's voltage ratings and thermal performance. However, it's essential to ensure that the device is operated within its specified voltage and current ratings.
-
