1955416-1 Information
1955416-1 by TE Connectivity is a Multiway Rack and Panel Connector.
Multiway Rack and Panel Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for 1955416-1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2969421
|
Farnell | PLUG HOUSING, 3POS, POLYAMIDE 6, NATURAL RoHS: Compliant Min Qty: 200 Lead time: 1 Weeks, 2 Days Container: Each | 2724 |
|
$0.7698 / $0.8176 | Buy Now |
|
DISTI #
2266-1955416-1-ND
|
DigiKey | CONN MALE TAB HSG 0.25 3POS NAT Min Qty: 150 Lead time: 24 Weeks Container: Box MARKETPLACE PRODUCT |
3405 In Stock |
|
$0.5500 / $0.5800 | Buy Now |
|
DISTI #
A120438-ND
|
DigiKey | CONN MALE TAB HSG 0.25 3POS NAT Min Qty: 150 Lead time: 24 Weeks Container: Bag | Temporarily Out of Stock |
|
$0.4453 | Buy Now |
|
DISTI #
1955416-1
|
Avnet Americas | Conn Housing RCP 3 POS 5mm Crimp ST Panel Mount Loose Piece - Bulk (Alt: 1955416-1) RoHS: Compliant Min Qty: 19600 Package Multiple: 1400 Lead time: 111 Weeks, 0 Days Container: Bulk | 0 |
|
$0.4992 / $0.5096 | Buy Now |
|
DISTI #
571-1955416-1
|
Mouser Electronics | Automotive Connectors 3 POS FASTIN-FASTON CONN TAB HSG RoHS: Compliant | 0 |
|
$0.4450 | Order Now |
|
DISTI #
AMP1955416-1
|
Heilind Electronics | 3 POS. FASTIN-FASTON CONNECTOR | Americas - 0 in Stock |
|
$0.5239 | Buy Now |
|
|
Onlinecomponents.com | 3 POS. FASTIN-FASTON CONNECTOR TAB HOUSI RoHS: Compliant |
3405 Partner Stock |
|
$0.4653 / $1.3700 | Buy Now |
|
DISTI #
16823430
|
Verical | Conn Housing RCP 3 POS 5mm Crimp ST Panel Mount Natural Bag RoHS: Compliant Min Qty: 116 Package Multiple: 1 | Americas - 3405 |
|
$0.5200 / $0.5400 | Buy Now |
|
DISTI #
1955416-1
|
IBS Electronics | 3 POS. FASTIN-FASTON CONNECTOR TAB HOUSI Min Qty: 250 Package Multiple: 1 | 3405 |
|
$0.5125 / $0.5375 | Buy Now |
|
DISTI #
AMP1955416-1
|
Interstate Connecting Components | 3 POS. FASTIN-FASTON CONNECTOR | 0 |
|
$0.5239 | Buy Now |
Part Details for 1955416-1

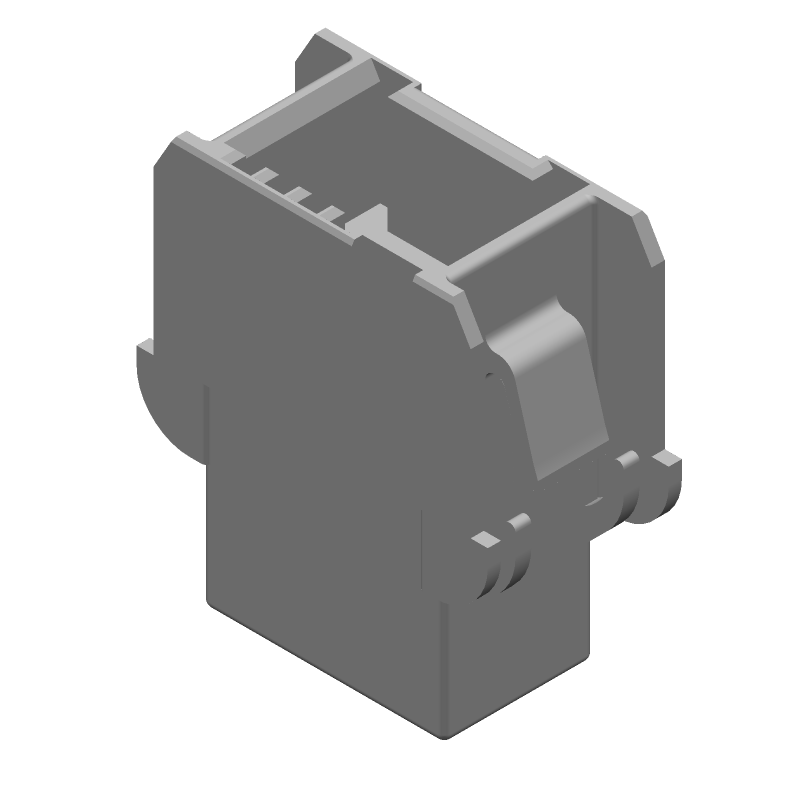

1955416-1 CAD Models
1955416-1 Part Data Attributes
|
|
1955416-1
TE Connectivity
Buy Now
Datasheet
|
Compare Parts:
1955416-1
TE Connectivity
Rack and Panel Connector, 3 Contact(s), Receptacle
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TE CONNECTIVITY LTD | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 111 Weeks | |
| Samacsys Manufacturer | TE Connectivity | |
| Body Length | 1.2 inch | |
| Body/Shell Style | RECEPTACLE | |
| Connector Type | RACK AND PANEL CONNECTOR | |
| Contact Finish Mating | NOT APPLICABLE | |
| Contact Material | NOT APPLICABLE | |
| DIN Conformance | NO | |
| EMI Shielded | NO | |
| Empty Shell | YES | |
| Filter Feature | NO | |
| IEC Conformance | NO | |
| Insulator Material | POLYAMIDE | |
| MIL Conformance | NO | |
| Mains Connector Rating | 115/230VAC | |
| Mixed Contacts | NO | |
| Mounting Type | PANEL | |
| Number Of Connectors | ONE | |
| Number of Ports | 1 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Option | GENERAL PURPOSE | |
| Panel Mount | NO | |
| Reference Standard | UL | |
| Terminal Pitch | 5 mm | |
| Total Number of Contacts | 3 | |
| UL Flammability Code | 94V-2 |
