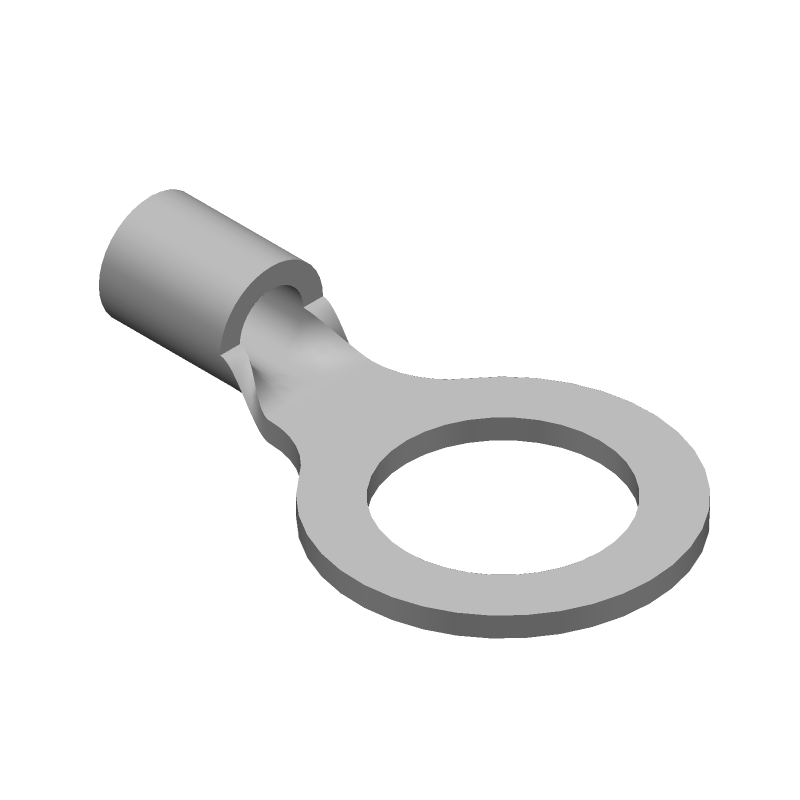

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 19069-0243 by Molex
Results Overview of 19069-0243 by Molex
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
Entertainment and Gaming
19069-0243 Information
19069-0243 by Molex is a Terminal and Terminal Block.
Terminals and Terminal Blocks are under the broader part category of Terminal Blocks.
Terminal blocks are connectors used in industrial applications to securely join wires, allowing for easy connection and disconnection without soldering. They come in various designs, including versions for power applications, and ensure reliable contact and current flow for multiple wire connections. Read more about Terminal Blocks on our Terminal Blocks part category page.
Price & Stock for 19069-0243
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
55H3684
|
Newark | C-140-38T Ring Krimptite Taped Dbl Space Rohs Compliant: Yes |Molex 19069-0243 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 2000 |
|
$0.0240 | Buy Now |
|
DISTI #
0190690243
|
Avnet Americas | Ring Tongue Terminal 10-12AWG 26.8mm 15.2mm Tin Mylar Tape - Tape and Reel (Alt: 0190690243) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 12 Weeks, 0 Days Container: Reel | 0 |
|
$0.1862 / $0.2270 | Buy Now |
|
DISTI #
0190690243
|
Avnet Americas | Ring Tongue Terminal 10-12AWG 26.8mm 15.2mm Tin Mylar Tape - Tape and Reel (Alt: 0190690243) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 12 Weeks, 0 Days Container: Reel | 0 |
|
$0.1862 / $0.2270 | Buy Now |
|
DISTI #
538-19069-0243
|
Mouser Electronics | Terminals C-140-38T RING KRIMP TITE TAPED DBL SPACE RoHS: Compliant | 2112 |
|
$0.2320 / $0.4500 | Buy Now |
|
|
Onlinecomponents.com | RoHS: Compliant | 0 |
|
$0.2304 / $0.3832 | Buy Now |
|
DISTI #
19069-0243
|
TTI | Terminals C-140-38T RING KRIMP TITE TAPED DBL SPACE RoHS: Compliant pbFree: Pb-Free Min Qty: 500 Package Multiple: 500 Container: Reel |
Americas - 6500 In Stock |
|
$0.2070 / $0.2110 | Buy Now |
|
DISTI #
MOL19069-0243
|
Interstate Connecting Components | C-140-38T RING KRIMPTITE TAPE DBL SPACE | 1137 |
|
$0.2242 / $0.2792 | Buy Now |
Part Details for 19069-0243
19069-0243 CAD Models
19069-0243 Part Data Attributes
|
|
19069-0243
Molex
Buy Now
Datasheet
|
Compare Parts:
19069-0243
Molex
Ring Terminal, 5mm2,
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MOLEX LLC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.90.40.00 | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | Molex | |
| Terminal Gender | FEMALE | |
| Terminal and Terminal Block Type | RING TERMINAL | |
| Wire Cross Section | 5 mm2 | |
| Wire Gauge | 10 AWG |
