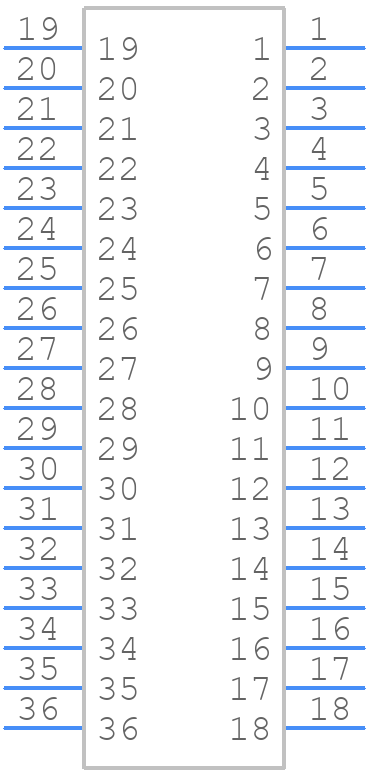

Part Symbol
-

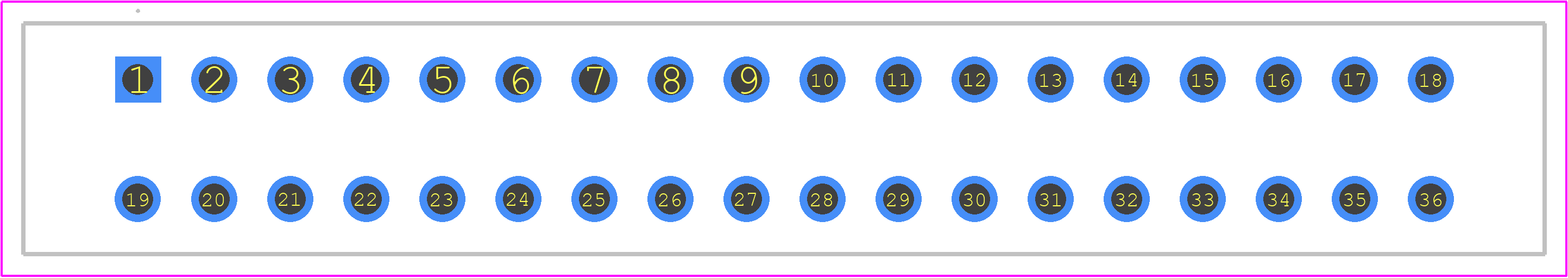

Footprint
-

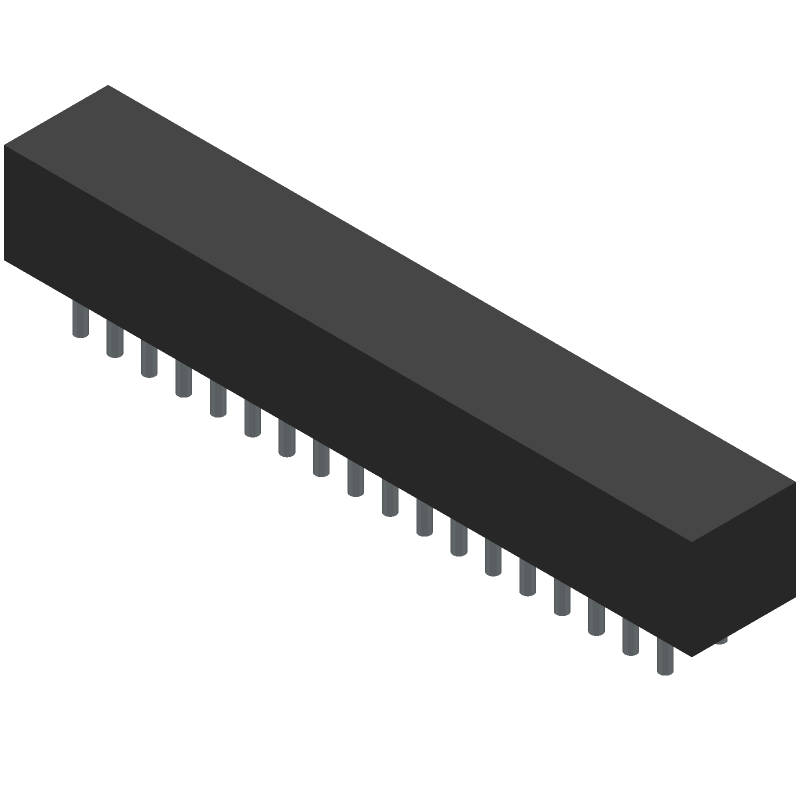

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 1875000 by Phoenix Contact
Results Overview of 1875000 by Phoenix Contact
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Medical Imaging
Robotics and Drones
1875000 Information
1875000 by Phoenix Contact is a Terminal and Terminal Block.
Terminals and Terminal Blocks are under the broader part category of Terminal Blocks.
Terminal blocks are connectors used in industrial applications to securely join wires, allowing for easy connection and disconnection without soldering. They come in various designs, including versions for power applications, and ensure reliable contact and current flow for multiple wire connections. Read more about Terminal Blocks on our Terminal Blocks part category page.
Price & Stock for 1875000
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
651-1875000
|
Mouser Electronics | Pluggable Terminal Blocks DMCV 1,5/18-G1F-3,5- LR P26THR RoHS: Compliant | 0 |
|
$5.6700 / $10.9200 | Order Now |
|
|
Dynamic Solutions GmbH | Printed-circuit board connector | 1800 |
|
RFQ |
Part Details for 1875000
1875000 CAD Models
1875000 Part Data Attributes
|
|
1875000
Phoenix Contact
Buy Now
Datasheet
|
Compare Parts:
1875000
Phoenix Contact
Barrier Strip Terminal Block,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | PHOENIX CONTACT GMBH & CO KG | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.90.40.00 | |
| Samacsys Manufacturer | Phoenix Contact | |
| Additional Feature | STANDARD: UL 94V-0, LCP | |
| Fastening Method | CONNECTOR | |
| Mounting Type | BOARD | |
| Number of Decks | 2 | |
| Number of Rows | 2 | |
| Number of Ways | 18 | |
| Rated Current | 8 A | |
| Rated Voltage | 160 V | |
| Safety Approval | CB; CUL; EAC; UL; VDE | |
| Terminal and Terminal Block Type | BARRIER STRIP TERMINAL BLOCK |
