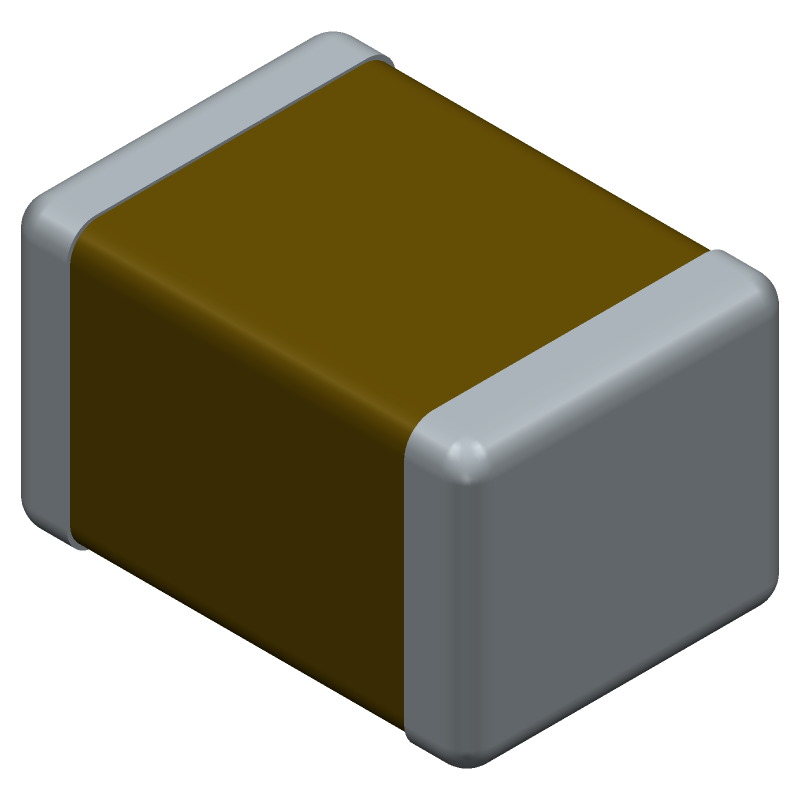

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 18125C475JAT2A by Kyocera AVX Components
Results Overview of 18125C475JAT2A by Kyocera AVX Components
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
18125C475JAT2A Information
18125C475JAT2A by Kyocera AVX Components is a Ceramic Capacitor.
Ceramic Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for 18125C475JAT2A
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
74T6686
|
Newark | R102 High Cv/Tape/Reel, 7 Inch Paper Tape Rohs Compliant: Yes |Kyocera Avx 18125C475JAT2A RoHS: Compliant Min Qty: 500 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.8220 / $1.1100 | Buy Now |
|
DISTI #
18125C475JAT2A-ND
|
DigiKey | CAP CER 4.7UF 50V X7R 1812 Min Qty: 500 Lead time: 12 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$1.0436 | Buy Now |
|
DISTI #
18125C475JAT2A
|
Avnet Americas | COMMERCIAL CHIP HICV COL - FN TAPE/REEL, 7 INCH PAPER TAPE - Tape and Reel (Alt: 18125C475JAT2A) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 12 Weeks, 0 Days Container: Reel | 0 |
|
$0.7923 / $0.9898 | Buy Now |
|
DISTI #
581-18125C475JAT2A
|
Mouser Electronics | Multilayer Ceramic Capacitors MLCC - SMD/SMT 50V 4.7uF X7R 1812 5 % RoHS: Compliant | 64 |
|
$0.9740 / $2.4700 | Buy Now |
|
DISTI #
18125C475JAT2A
|
TTI | Multilayer Ceramic Capacitors MLCC - SMD/SMT 50V 4.7uF X7R 1812 5 % RoHS: Compliant pbFree: Pb-Free Min Qty: 500 Package Multiple: 500 Container: Reel | Americas - 0 |
|
$1.0700 / $1.1300 | Buy Now |
|
DISTI #
KGM43JR71H475JV
|
Avnet Abacus | COMMERCIAL CHIP HICV COL FN TAPEREEL 7 INCH PAPER TAPE - Tape and Reel (Alt: KGM43JR71H475JV) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 16 Weeks, 0 Days Container: Reel | Abacus - 0 |
|
Buy Now |
Part Details for 18125C475JAT2A
18125C475JAT2A CAD Models
18125C475JAT2A Part Data Attributes
|
|
18125C475JAT2A
Kyocera AVX Components
Buy Now
Datasheet
|
Compare Parts:
18125C475JAT2A
Kyocera AVX Components
Capacitor, Ceramic, Chip, General Purpose, 4.7uF, 50V, ±5%, X7R, 1812 (4532 mm), Sn/NiBar, -55º ~ +125ºC, 7" Reel
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | AVX CORP | |
| Part Package Code | 1812 | |
| Package Description | , 1812 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.24.00.20 | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | Kyocera AVX | |
| Capacitance | 4.7 µF | |
| Capacitor Type | CERAMIC CAPACITOR | |
| Dielectric Material | CERAMIC | |
| Height | 2.79 mm | |
| JESD-609 Code | e3 | |
| Length | 4.5 mm | |
| Mounting Feature | SURFACE MOUNT | |
| Multilayer | Yes | |
| Negative Tolerance | 5% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Packing Method | TR, EMBOSSED, 7 INCH | |
| Positive Tolerance | 5% | |
| Rated (DC) Voltage (URdc) | 50 V | |
| Size Code | 1812 | |
| Surface Mount | YES | |
| Temperature Characteristics Code | X7R | |
| Temperature Coefficient | 15% ppm/°C | |
| Terminal Finish | MATTE TIN OVER NICKEL | |
| Terminal Shape | WRAPAROUND | |
| Width | 3.2 mm |
Alternate Parts for 18125C475JAT2A
This table gives cross-reference parts and alternative options found for 18125C475JAT2A. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 18125C475JAT2A, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| M3253507E2A475JRTB | Kyocera AVX Components | Check for Price | Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, X7R, 15% TC, 4.7uF, Surface Mount, 1812, CHIP | 18125C475JAT2A vs M3253507E2A475JRTB |
18125C475JAT2A Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for the 18125C475JAT2A capacitor is between 250°C to 260°C for a maximum of 10 seconds.
-
Yes, the 18125C475JAT2A capacitor is suitable for high-frequency applications due to its low equivalent series resistance (ESR) and high self-resonant frequency.
-
The maximum operating voltage derating for the 18125C475JAT2A capacitor is 80% of the rated voltage at 125°C, and 90% of the rated voltage at 85°C.
-
The 18125C475JAT2A capacitor is not suitable for use in humid environments. It is recommended to use a capacitor with a higher moisture resistance rating, such as the 18125C475JAT2A-V, for applications in humid environments.
-
The 18125C475JAT2A capacitor is lead-free and RoHS compliant, making it suitable for use in applications that require environmental compliance.
