176282-1 Information
176282-1 by TE Connectivity is a Power Connector.
Power Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for 176282-1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
18AH0013
|
Newark | Connector Housing, Rcpt, 2Pos, 3.96Mm, Product Range:Universal Power Series, Gender:Receptacle, No. Of Positions:2Ways, Pitch Spacing:3.96Mm, For Use With:Amp Universal Power Series 175149 & 175150 Pin Contacts, Svhc:No Svhc Rohs Compliant: Yes |Amp Te Connectivity 176282-1 RoHS: Compliant Min Qty: 10 Package Multiple: 1 Date Code: 0 Container: Bulk | 4911 |
|
$0.1760 / $0.2430 | Buy Now |
|
DISTI #
11H9599
|
Newark | Amp Universal Power Cap 2P Rohs Compliant: Yes |Amp Te Connectivity 176282-1 RoHS: Compliant Min Qty: 6000 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$0.1510 | Buy Now |
|
DISTI #
176282-1-ND
|
DigiKey | CONN RCPT HSG 2POS 3.96MM Min Qty: 1 Lead time: 14 Weeks Container: Bulk |
293568 In Stock |
|
$0.1423 / $0.2500 | Buy Now |
|
DISTI #
571-176282-1
|
Mouser Electronics | Power to the Board HSG CAP 1X02C F/H NAT RoHS: Compliant | 25315 |
|
$0.1290 / $0.2400 | Buy Now |
|
DISTI #
V36:1790_11615236
|
Arrow Electronics | Conn Housing RCP 2 POS 3.96mm Crimp ST Cable Mount Natural Bag RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 14 Weeks Date Code: 2313 | Americas - 9320 |
|
$0.1101 | Buy Now |
|
DISTI #
AMP176282-1
|
Heilind Electronics | AMP UNIVERSAL POWER CAP 2P | Americas - 641 in Stock |
|
$0.1627 | Buy Now |
|
|
Onlinecomponents.com | AMP UNIVERSAL POWER CAP 2P RoHS: Compliant |
15650 Partner Stock 14000 Factory Stock |
|
$0.1121 / $0.1634 | Buy Now |
|
DISTI #
65672209
|
Verical | Conn Housing RCP 2 POS 3.96mm Crimp ST Cable Mount Natural Bag RoHS: Compliant Min Qty: 441 Package Multiple: 1 | Americas - 14770 |
|
$0.1250 / $0.1420 | Buy Now |
|
DISTI #
69169142
|
Verical | Conn Housing RCP 2 POS 3.96mm Crimp ST Cable Mount Natural Bag RoHS: Compliant Min Qty: 52 Package Multiple: 1 Date Code: 2313 | Americas - 9320 |
|
$0.1101 | Buy Now |
|
DISTI #
87083352
|
Verical | Conn Housing RCP 2 POS 3.96mm Crimp ST Cable Mount Natural Bag RoHS: Compliant Min Qty: 625 Package Multiple: 1 Date Code: 2401 | Americas - 5500 |
|
$0.1752 | Buy Now |
Part Details for 176282-1

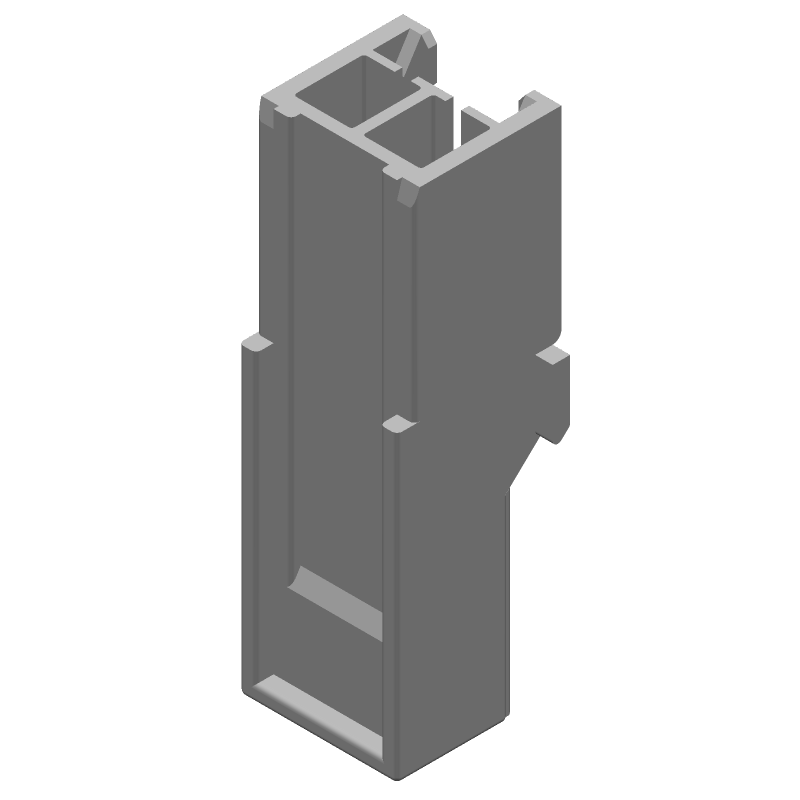

176282-1 CAD Models
176282-1 Part Data Attributes
|
|
176282-1
TE Connectivity
Buy Now
Datasheet
|
Compare Parts:
176282-1
TE Connectivity
AMP UNIVERSAL POWER CAP 2P
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TE CONNECTIVITY LTD | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.69.40.30 | |
| Factory Lead Time | 15 Weeks | |
| Samacsys Manufacturer | TE Connectivity | |
| Additional Feature | COMPATIBLE CONTACTS: 175149-1; 175149-2; 175150-1; 175150-2 | |
| Body Breadth | 0.331 inch | |
| Body Depth | 0.33 inch | |
| Body Length | 1.14 inch | |
| Body/Shell Style | RECEPTACLE | |
| Connector Type | RECTANGULAR POWER CONNECTOR | |
| Contact Arrangement | S0P2 | |
| Contact Finish Mating | NOT APPLICABLE | |
| Contact Gender | MALE | |
| Contact Material | NOT APPLICABLE | |
| Contact Pattern | RECTANGULAR | |
| Contact Style | SQ PIN-SKT | |
| DIN Conformance | NO | |
| Durability | 25 Cycles | |
| EMI Shielded | NO | |
| Empty Shell | YES | |
| Filter Feature | NO | |
| IEC Conformance | NO | |
| Insertion Force-Max | 8.896 N | |
| Insulation Resistance | 100000000 Ω | |
| Insulator Color | NATURAL | |
| Insulator Material | POLYAMIDE66 | |
| MIL Conformance | NO | |
| Mains Connector Rating | 7A | |
| Mating Information | MULTIPLE MATING PARTS AVAILABLE | |
| Mixed Contacts | NO | |
| Mounting Option 1 | LOCKING | |
| Mounting Option 2 | LATCHING | |
| Mounting Style | STRAIGHT | |
| Mounting Type | CABLE | |
| Number Of Connectors | ONE | |
| Number of Ports | 1 | |
| Number of Rows Loaded | 1 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -30 °C | |
| Option | GENERAL PURPOSE | |
| Panel Mount | NO | |
| Polarization Key | POLARIZED | |
| Rated Current (Signal) | 7 A | |
| Reference Standard | UL | |
| Terminal Pitch | 3.96 mm | |
| Termination Type | CRIMP | |
| Total Number of Contacts | 2 | |
| UL Flammability Code | 94V-0 | |
| Withdrawl Force-Min | .556 N |
Alternate Parts for 176282-1
This table gives cross-reference parts and alternative options found for 176282-1. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 176282-1, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 176282-6 | TE Connectivity | $0.3670 | AMP UNIVERSAL POWER CAP 2P | 176282-1 vs 176282-6 |
| 43680-2002 | Molex | $0.5075 | Rectangular Power Connector, 2 Contact(s), Male, Plug, | 176282-1 vs 43680-2002 |
| 176282-9 | TE Connectivity | Check for Price | AMP UNIVERSAL POWER CAP 2P | 176282-1 vs 176282-9 |
| 66480-015 | DuPont | Check for Price | Rectangular Power Connector, 2 Contact(s), Male, Plug | 176282-1 vs 66480-015 |
176282-1 Frequently Asked Questions (FAQ)
-
The recommended torque value is 0.5-0.7 Nm (5-7 in-lbs) for the screw terminals on the 176282-1 connector.
-
Yes, the 176282-1 connector is designed to withstand high-vibration environments, making it suitable for applications such as industrial automation, transportation, and aerospace.
-
The 176282-1 connector has a UL94-V0 rated plastic housing, which provides good resistance to chemicals and solvents. However, it's recommended to test the connector in the specific chemical environment to ensure compatibility.
-
The 176282-1 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F), making it suitable for a wide range of applications.
-
The 176282-1 connector is rated for up to 13A per contact, making it suitable for moderate to high-current applications. However, it's essential to consider the wire gauge, insulation, and overall system design to ensure safe and reliable operation.
