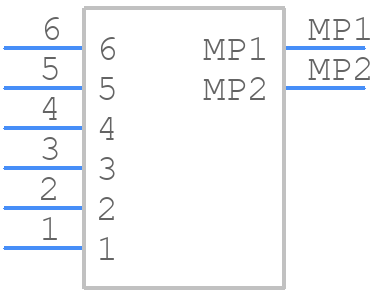

Part Symbol
-

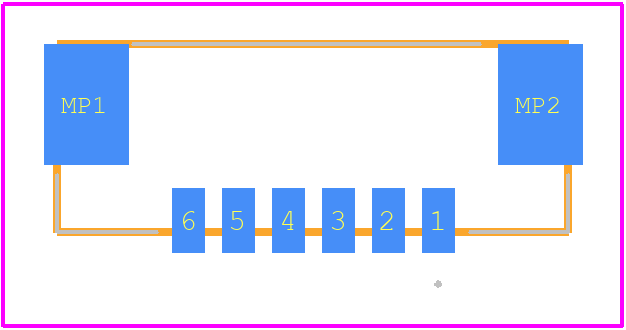

Footprint
-

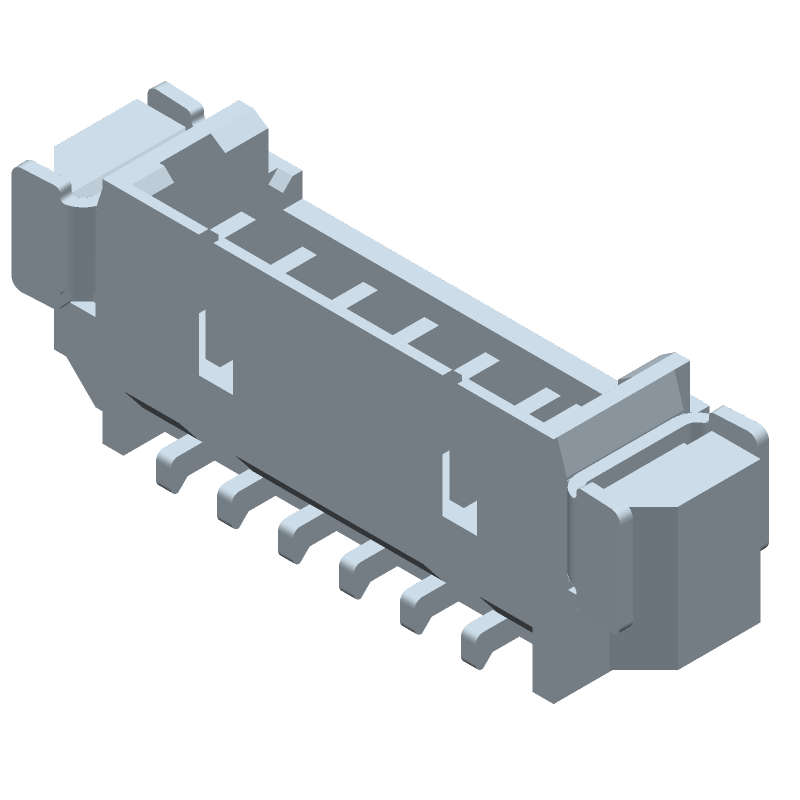

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 1734261-6 by TE Connectivity
Results Overview of 1734261-6 by TE Connectivity
- Distributor Offerings: (16 listings)
- Number of FFF Equivalents: (3 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Agriculture Technology
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Healthcare
Electronic Manufacturing
Entertainment and Gaming
1734261-6 Information
1734261-6 by TE Connectivity is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for 1734261-6
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2977671
|
Farnell | CONNECTOR, HEADER, 6POS, 1ROW, 1.25MM RoHS: Compliant Min Qty: 1000 Lead time: 1 Weeks, 2 Days Container: Each | 19000 |
|
$1.1621 / $1.2364 | Buy Now |
|
DISTI #
A98753CT-ND
|
DigiKey | CONN HEADER SMD R/A 6POS 1.25MM Min Qty: 1 Lead time: 6 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
26153 In Stock |
|
$0.6968 / $0.9200 | Buy Now |
|
DISTI #
V36:1790_11641569
|
Arrow Electronics | Conn High Performance Interconnect HDR 6 POS 1.25mm Solder RA Side Entry SMD T/R RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 1 Weeks Date Code: 2132 | Americas - 5000 |
|
$0.8871 | Buy Now |
|
DISTI #
V72:2272_11641569
|
Arrow Electronics | Conn High Performance Interconnect HDR 6 POS 1.25mm Solder RA Side Entry SMD T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 1 Weeks Date Code: 2111 Container: Cut Strips | Americas - 1603 |
|
$0.8960 / $0.9487 | Buy Now |
|
DISTI #
73774440
|
RS | 1.25 WTB, HDR, SMT, RA, 6P, PCB Headers and Receptacles Min Qty: 28000 Package Multiple: 1 Lead time: 12 Weeks, 0 Days Container: Bulk | 0 |
|
$1.1400 / $1.4200 | RFQ |
|
|
Onlinecomponents.com | 1.25 WTB, HDR, SMT, RA, 6P RoHS: Compliant |
23620 In Stock |
|
$0.7900 / $0.8910 | Buy Now |
|
DISTI #
17351901
|
Verical | Conn High Performance Interconnect HDR 6 POS 1.25mm Solder RA Side Entry SMD T/R RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 | Americas - 18000 |
|
$0.8200 / $0.8300 | Buy Now |
|
DISTI #
66987426
|
Verical | Conn High Performance Interconnect HDR 6 POS 1.25mm Solder RA Side Entry SMD T/R RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 | Americas - 5000 |
|
$0.8200 / $0.8300 | Buy Now |
|
DISTI #
60939945
|
Verical | Conn High Performance Interconnect HDR 6 POS 1.25mm Solder RA Side Entry SMD T/R RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Date Code: 2132 | Americas - 5000 |
|
$1.0573 | Buy Now |
|
DISTI #
54349779
|
Verical | Conn High Performance Interconnect HDR 6 POS 1.25mm Solder RA Side Entry SMD T/R RoHS: Compliant Min Qty: 12 Package Multiple: 1 Date Code: 2111 | Americas - 1603 |
|
$0.8960 / $0.9399 | Buy Now |
Part Details for 1734261-6
1734261-6 CAD Models
1734261-6 Part Data Attributes
|
|
1734261-6
TE Connectivity
Buy Now
Datasheet
|
Compare Parts:
1734261-6
TE Connectivity
1.25 WTB, HDR, SMT, RA, 6P
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TE CONNECTIVITY LTD | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.69.40.40 | |
| Samacsys Manufacturer | TE Connectivity | |
| Board Mounting Option | PEG | |
| Body Breadth | 0.185 inch | |
| Body Depth | 0.136 inch | |
| Body Length | 0.503 inch | |
| Body/Shell Style | PLUG | |
| Connector Type | BOARD CONNECTOR | |
| Contact Finish Mating | NOT APPLICABLE | |
| Contact Gender | MALE | |
| Contact Material | NOT APPLICABLE | |
| Contact Pattern | RECTANGULAR | |
| Contact Style | SQ PIN-SKT | |
| DIN Conformance | NO | |
| Durability | 25 Cycles | |
| EMI Shielded | NO | |
| Empty Shell | NO | |
| Filter Feature | NO | |
| IEC Conformance | NO | |
| Insertion Force-Max | 9.7856 N | |
| Insulation Resistance | 100000000 Ω | |
| Insulator Color | NATURAL | |
| Insulator Material | POLYETHYLENE | |
| MIL Conformance | NO | |
| Mains Connector Rating | 3A | |
| Mating Contact Pitch | 0.049 inch | |
| Mixed Contacts | NO | |
| Mounting Option 1 | LOCKING | |
| Mounting Style | RIGHT ANGLE | |
| Mounting Type | BOARD | |
| Number Of Connectors | ONE | |
| Number Of PCB Rows | 1 | |
| Number of Ports | 1 | |
| Number of Rows Loaded | 1 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -25 °C | |
| Option | GENERAL PURPOSE | |
| PCB Contact Pattern | RECTANGULAR | |
| Panel Mount | NO | |
| Plating Thickness | 100u inch | |
| Polarization Key | POLARIZED | |
| Rated Current (Signal) | 3 A | |
| Rated Voltage | 100 V | |
| Reference Standard | UL | |
| Terminal Pitch | 1.25 mm | |
| Termination Type | SURFACE MOUNT | |
| Total Number of Contacts | 6 | |
| UL Flammability Code | 94V-0 | |
| Wire Size-Max | 28 AWG | |
| Withdrawl Force-Min | .973 N |
