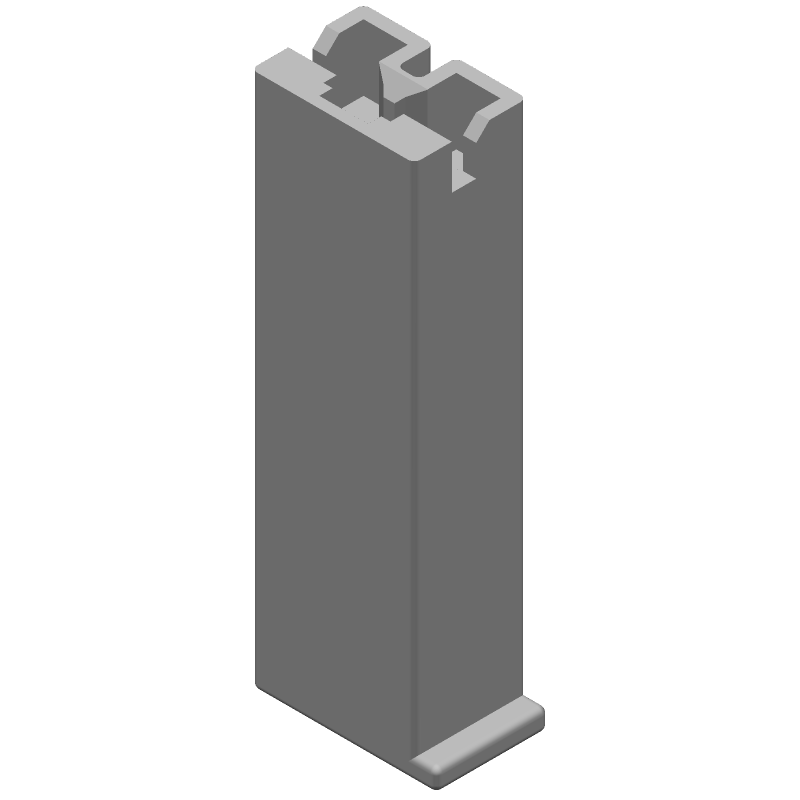

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 172074-1 by TE Connectivity
Results Overview of 172074-1 by TE Connectivity
- Distributor Offerings: (22 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Renewable Energy
Robotics and Drones
172074-1 Information
172074-1 by TE Connectivity is a Combination Line Connector.
Combination Line Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for 172074-1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
88W1712
|
Newark | Connector Housing, Plug, 1Pos, Product Range:-, Gender:Plug, No. Of Positions:1Positions, Pitch Spacing:-, For Use With:170324, 170325, 170326 Socket Contacts Rohs Compliant: Yes |Amp Te Connectivity 172074-1 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 16853 |
|
$0.0590 / $0.1000 | Buy Now |
|
DISTI #
34C9173
|
Newark | 187 Ser Poslock Hsg. 1Pos. Rohs Compliant: Yes |Amp Te Connectivity 172074-1 RoHS: Compliant Min Qty: 20000 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$0.0490 | Buy Now |
|
DISTI #
A112654-ND
|
DigiKey | CONN RCPT HSG 0.187 1POS NATURAL Min Qty: 1 Lead time: 15 Weeks Container: Bag |
18379 In Stock |
|
$0.0590 / $0.1000 | Buy Now |
|
DISTI #
88W1712
|
Avnet Americas | Conn Housing RCP 1 POS Crimp ST - Bulk (Alt: 88W1712) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 16 Weeks, 3 Days Container: Bulk | 104 Partner Stock |
|
$0.0680 / $0.1100 | Buy Now |
|
DISTI #
172074-1
|
Avnet Americas | Conn Housing RCP 1 POS Crimp ST - Bulk (Alt: 172074-1) RoHS: Compliant Min Qty: 20000 Package Multiple: 20000 Lead time: 20 Weeks, 5 Days Container: Bulk | 0 |
|
$0.0433 / $0.0442 | Buy Now |
|
|
Bisco Industries | 4 |
|
Buy Now | ||
|
DISTI #
AMP172074-1
|
Heilind Electronics | 187 SER POSLOCK HSG. 1POS. | Americas - 0 in Stock15000 On Order |
|
$0.0453 / $0.0481 | Buy Now |
|
|
Onlinecomponents.com | 187 HSG. PLMKII REC. NAT RoHS: Compliant |
85888 In Stock |
|
$0.0564 / $0.0611 | Buy Now |
|
DISTI #
84415402
|
Verical | Conn Housing RCP 1 POS Crimp ST Cable Mount Natural Bag RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Date Code: 2110 | Americas - 85000 |
|
$0.0673 / $0.0719 | Buy Now |
|
DISTI #
87458306
|
Verical | Conn Housing RCP 1 POS Crimp ST Cable Mount Natural Bag RoHS: Compliant Min Qty: 3000 Package Multiple: 1000 Date Code: 2136 | Americas - 7000 |
|
$0.0578 | Buy Now |
Part Details for 172074-1
172074-1 CAD Models
172074-1 Part Data Attributes
|
|
172074-1
TE Connectivity
Buy Now
Datasheet
|
Compare Parts:
172074-1
TE Connectivity
POSITIVE LOCK 187 HOUSING RECEPTACLE
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TE CONNECTIVITY LTD | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.69.40.30 | |
| Factory Lead Time | 16 Weeks, 3 Days | |
| Samacsys Manufacturer | TE Connectivity | |
| Additional Feature | COMPATIBLE CONTACTS: 170324, 170325, 170326 | |
| Body Breadth | 0.201 inch | |
| Body Depth | 0.957 inch | |
| Body Length | 0.331 inch | |
| Body/Shell Style | RECEPTACLE | |
| Connector Type | COMBINATION LINE CONNECTOR | |
| Contact Finish Mating | NOT APPLICABLE | |
| Contact Gender | FEMALE | |
| Contact Material | NOT APPLICABLE | |
| DIN Conformance | NO | |
| EMI Shielded | NO | |
| Empty Shell | YES | |
| Filter Feature | NO | |
| IEC Conformance | NO | |
| Insulator Material | POLYAMIDE | |
| MIL Conformance | NO | |
| Mains Connector Rating | 115/230VAC | |
| Mixed Contacts | NO | |
| Mounting Type | CABLE | |
| Number Of Connectors | ONE | |
| Number of Ports | 1 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Option | GENERAL PURPOSE | |
| Panel Mount | NO | |
| Polarization Key | POLARIZED | |
| Reference Standard | UL | |
| Termination Type | CRIMP | |
| Total Number of Contacts | 1 | |
| UL Flammability Code | 94V-2 |
172074-1 Frequently Asked Questions (FAQ)
-
The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals on the 172074-1 connector.
-
Yes, the 172074-1 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels.
-
The 172074-1 connector is rated for operation in temperatures ranging from -40°C to 125°C (-40°F to 257°F).
-
Yes, the 172074-1 connector is designed to be resistant to corrosion and can withstand exposure to moisture and certain chemicals, but it's essential to follow proper installation and sealing procedures to ensure reliability.
-
While it's technically possible to use a different wire gauge, it's not recommended as it may affect the connector's performance and reliability. It's best to use the recommended wire gauge to ensure optimal results.
