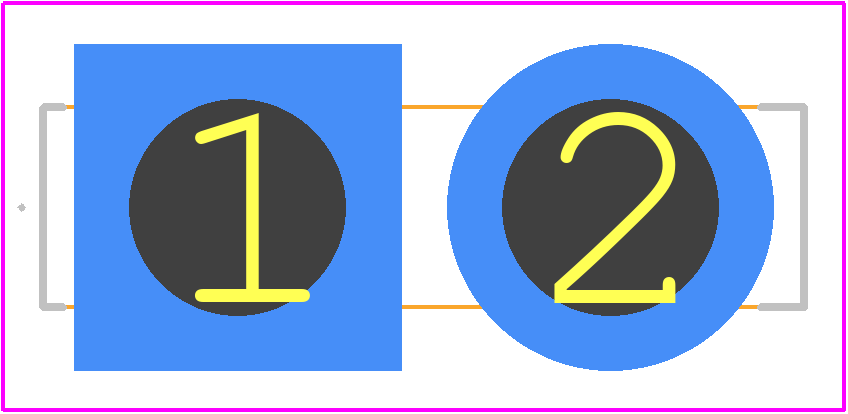

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 166.7000.5152 by Littelfuse Inc
Results Overview of 166.7000.5152 by Littelfuse Inc
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
166.7000.5152 Information
166.7000.5152 by Littelfuse Inc is an Electric Fuse.
Electric Fuses are under the broader part category of Circuit Protection Components.
Circuit protection components monitor and safeguard electronic systems from overcurrent, overvoltage, and other electrical hazards. Read more about Circuit Protection Components on our Circuit Protection part category page.
Price & Stock for 166.7000.5152
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
67K1486
|
Newark | Automotive Fuse, 15A, 80Vdc, Blow Characteristic:Time Delay, Fuse Current:15A, Voltage Rating Vdc:80V, Product Range:Fks Ato Series Rohs Compliant: Yes |Littelfuse 166.7000.5152 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 0 |
|
$3.2600 / $6.9300 | Buy Now |
|
DISTI #
F5162-ND
|
DigiKey | FUSE AUTO 15A 80VDC BLADE ATO Min Qty: 1 Lead time: 16 Weeks Container: Bulk |
377 In Stock |
|
$3.3293 / $7.0700 | Buy Now |
|
DISTI #
E02:0323_00179982
|
Arrow Electronics | Fuse Blade 15A 80V Holder Quick Connect 19 X 5 X 13.2mm Thermoplastic UL/cULus RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 23 Weeks Date Code: 2424 | Europe - 1 |
|
$3.5986 / $5.8301 | Buy Now |
|
DISTI #
71075024
|
RS | FUSE 80V FKS ATO 15A Min Qty: 1 Package Multiple: 1 Container: Bulk | 108 |
|
$5.5700 / $6.1200 | Buy Now |
|
DISTI #
88121397
|
Verical | Fuse Blade 15A 80V Holder Quick Connect 19 X 5 X 13.2mm Thermoplastic UL/cULus RoHS: Compliant Min Qty: 3 Package Multiple: 1 Date Code: 2504 | Americas - 9 |
|
$3.1800 / $5.7370 | Buy Now |
|
DISTI #
166.7000.5152
|
TTI | Automotive Fuses 15A Blue RoHS: Compliant pbFree: Pb-Free Min Qty: 10 Package Multiple: 10 Container: Bulk |
Americas - 10000 In Stock |
|
$3.2600 / $5.2300 | Buy Now |
|
DISTI #
166.7000.5152
|
TME | Fuse: fuse, 15A, 80VDC, automotive, 19mm, push-in, FKS ATO, copper Min Qty: 1 | 0 |
|
$4.5400 / $5.0400 | RFQ |
|
DISTI #
SMC-166.7000.5152
|
Sensible Micro Corporation | OEM Excess 5-7 Days Leadtime, We are an AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days | 749 |
|
RFQ |
Part Details for 166.7000.5152
166.7000.5152 CAD Models
166.7000.5152 Part Data Attributes
|
|
166.7000.5152
Littelfuse Inc
Buy Now
Datasheet
|
Compare Parts:
166.7000.5152
Littelfuse Inc
Electric Fuse, 15A, 80VDC, Inline/holder, ROHS COMPLIANT
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | LITTELFUSE INC | |
| Package Description | ROHS COMPLIANT | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | LITTELFUSE | |
| Additional Feature | RATED BREAKING CAPACITY AT 80 VDC: 1000A | |
| Body Breadth | 5 mm | |
| Body Height | 13.2 mm | |
| Body Length or Diameter | 19 mm | |
| Circuit Protection Type | ELECTRIC FUSE | |
| JESD-609 Code | e3 | |
| Joule Integral-Nom | 162 J | |
| Mounting Feature | INLINE/HOLDER | |
| Rated Current | 15 A | |
| Rated Voltage(DC) | 80 V | |
| Reference Standard | UL | |
| Surface Mount | NO | |
| Terminal Finish | TIN | |
| Terminal Shape | TAB/BLADE |
Alternate Parts for 166.7000.5152
This table gives cross-reference parts and alternative options found for 166.7000.5152. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 166.7000.5152, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 166.7000.5156 | Littelfuse Inc | Check for Price | Electric Fuse, 15A, 80VDC, Inline/holder, ROHS COMPLIANT | 166.7000.5152 vs 166.7000.5156 |
166.7000.5152 Frequently Asked Questions (FAQ)
-
The recommended mounting orientation for the 166.7000.5152 fuse is vertical, with the fuse body upright and the terminals facing downwards. This helps prevent moisture accumulation and ensures reliable operation.
-
Yes, the 166.7000.5152 fuse is designed to withstand high-vibration environments. However, it's essential to ensure proper mounting and secure the fuse to prevent damage or dislodging.
-
The maximum operating temperature for the 166.7000.5152 fuse is 125°C (257°F). Exceeding this temperature may affect the fuse's performance and reliability.
-
The 166.7000.5152 fuse has a sealed construction, but it's still important to take precautions when using it in humid or wet environments. Ensure the fuse is properly sealed and consider using additional protection measures, such as conformal coating or potting, to prevent moisture ingress.
-
The recommended derating curve for the 166.7000.5152 fuse can be found in the Littelfuse application notes or by consulting with a Littelfuse representative. Derating is essential to ensure the fuse operates within its specified parameters and maintains its reliability.
