15FR050E Information
15FR050E by Ohmite Mfg Co is a Wire Wound Resistor.
Wire Wound Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for 15FR050E
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
64K7921
|
Newark | Current Sense Resistor, 0.05 Ohm, 5W, 1%, Resistance:0.05Ohm, Product Range:10 Series, Power Rating:5W, Resistor Technology:Wirewound, Resistor Case/Package:Axial Leaded, Resistance Tolerance:± 1%, Product Length:23.8Mm Rohs Compliant: Yes |Ohmite 15FR050E RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 151 |
|
$1.5100 / $2.7900 | Buy Now |
|
DISTI #
15FR050E-ND
|
DigiKey | RES 0.05 OHM 1% 5W AXIAL Min Qty: 1 Lead time: 23 Weeks Container: Bulk |
37036 In Stock |
|
$1.1375 / $3.1100 | Buy Now |
|
DISTI #
588-15FR050E
|
Mouser Electronics | Current Sense Resistors - Through Hole 5watts 0.05OHMS 1% RoHS: Compliant | 2996 |
|
$1.4700 / $2.8100 | Buy Now |
|
DISTI #
70022574
|
RS | Resistor, Wirewound, Res 0.05 Ohms, 5 W, Tol 1%, Axial, Silicone, Curr-Sense Min Qty: 1 Package Multiple: 1 Lead time: 23 Weeks, 0 Days Container: Bulk | 230 |
|
$2.1300 / $2.8400 | Buy Now |
|
|
Onlinecomponents.com | Res Wirewound 0.05 Ohm 1% 5W ±50ppm/°C Silicone AXL RoHS: Compliant |
2600 In Stock |
|
$1.5500 / $2.3300 | Buy Now |
|
DISTI #
65064034
|
Verical | Res Wirewound 0.05 Ohm 1% 5W ±50ppm/°C Silicone AXL RoHS: Compliant Min Qty: 30 Package Multiple: 10 Date Code: 2245 | Americas - 2600 |
|
$1.9529 / $2.7412 | Buy Now |
|
DISTI #
15FR050E
|
TTI | Current Sense Resistors - Through Hole 5watts 0.05OHMS 1% RoHS: Compliant pbFree: Pb-Free Min Qty: 10 Package Multiple: 10 Container: Bulk |
Americas - 1880 In Stock |
|
$1.4800 / $1.7100 | Buy Now |
|
DISTI #
15FR050E
|
TME | Resistor: wire-wound, THT, 50mΩ, 5W, ±1%, Ø8.4x23.8mm, -55÷275°C Min Qty: 1 | 204 |
|
$2.0700 / $3.4100 | Buy Now |
|
DISTI #
15FR050E
|
IBS Electronics | RESISTOR WIREWOUND RES 0.05 OHMS 5 W TOL 1% AXIAL SILICONE CURR-SENSE | OHMITE 15FR050E Min Qty: 10 Package Multiple: 1 | 2600 |
|
$1.8720 / $2.0540 | Buy Now |
|
DISTI #
15FR050E
|
Richardson RFPD | WIREWOUND RESISTOR Min Qty: 250 | 0 |
|
$1.6000 | Buy Now |
Part Details for 15FR050E
15FR050E CAD Models
15FR050E Part Data Attributes
|
|
15FR050E
Ohmite Mfg Co
Buy Now
Datasheet
|
Compare Parts:
15FR050E
Ohmite Mfg Co

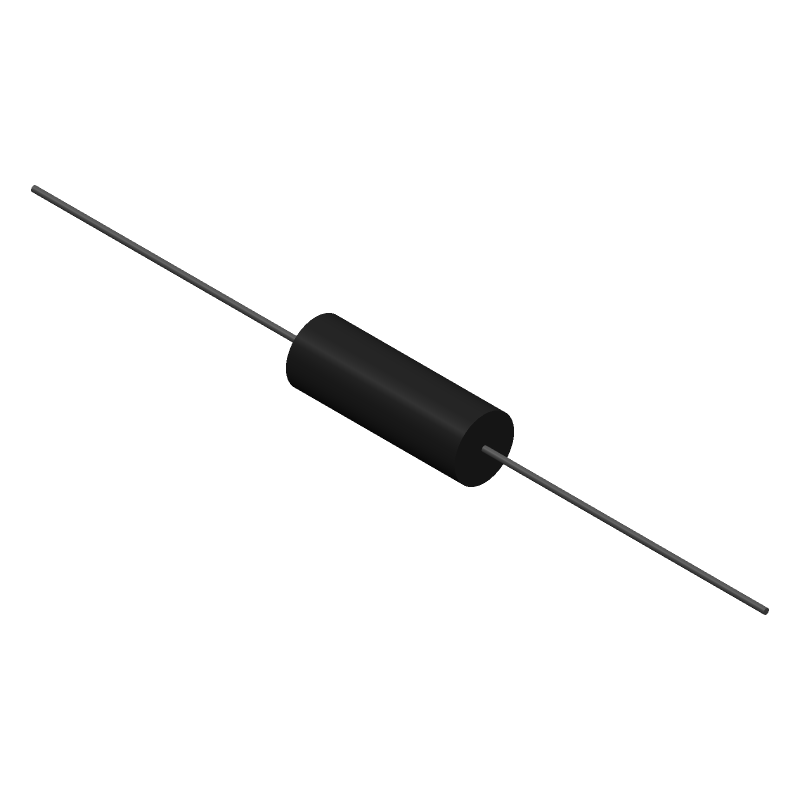

Fixed Resistor, Wire Wound, 5W, 0.05ohm, 1% +/-Tol, Through Hole Mount, AXIAL LEADED, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | OHMITE MANUFACTURING CO | |
| Package Description | AXIAL LEADED | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.21.00.80 | |
| Samacsys Manufacturer | Ohmite | |
| Additional Feature | NON-INDUCTIVE | |
| Construction | Tubular | |
| JESD-609 Code | e1 | |
| Lead Diameter | 1.02 mm | |
| Lead Length | 38.1 mm | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 275 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Diameter | 8.4 mm | |
| Package Length | 23.8 mm | |
| Package Shape | TUBULAR PACKAGE | |
| Package Style | Axial | |
| Rated Power Dissipation (P) | 5 W | |
| Rated Temperature | 25 °C | |
| Resistance | 0.05 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Surface Mount | NO | |
| Technology | WIRE WOUND | |
| Terminal Finish | TIN SILVER COPPER | |
| Terminal Shape | WIRE | |
| Tolerance | 1% |
15FR050E Frequently Asked Questions (FAQ)
-
The thermal resistance of the 15FR050E is approximately 10°C/W, which is relatively low, making it suitable for high-power applications.
-
Yes, the 15FR050E is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the European Union's standards for reducing hazardous substances in electronic components.
-
The recommended mounting method for the 15FR050E is through-hole mounting, with the component mounted vertically on a PCB to ensure proper heat dissipation.
-
Yes, the 15FR050E is designed to withstand high-vibration environments, making it suitable for use in industrial, automotive, and aerospace applications.
-
The maximum operating temperature range for the 15FR050E is -55°C to 150°C, making it suitable for use in a wide range of applications.
