157119S12701 Information
157119S12701 by Wurth Elektronik is an LED Display.
LED Displays are under the broader part category of Optoelectronics.
Optoelectronic components work to detect, generate, and control light. They can essentially produce and/or react to light. Read more about Optoelectronics on our Optoelectronics part category page.
Price & Stock for 157119S12701
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
60AJ4750
|
Newark | 7-Seg Display, Comm Cathode, Super Red Rohs Compliant: Yes |Wurth Elektronik 157119S12701 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 20 |
|
$0.6190 / $0.9300 | Buy Now |
|
DISTI #
732-157119S12701-ND
|
DigiKey | WL-T7DS 7 SEGMENTS DISPLAY THT S Min Qty: 1 Lead time: 8 Weeks Container: Tube |
85 In Stock |
|
$0.5837 / $0.8400 | Buy Now |
|
DISTI #
710-157119S12701
|
Mouser Electronics | LED Displays & Accessories WL-T7DS Com Cathode 38mcd 2V Super Red RoHS: Compliant | 51 |
|
$0.6190 / $0.9300 | Buy Now |
Part Details for 157119S12701

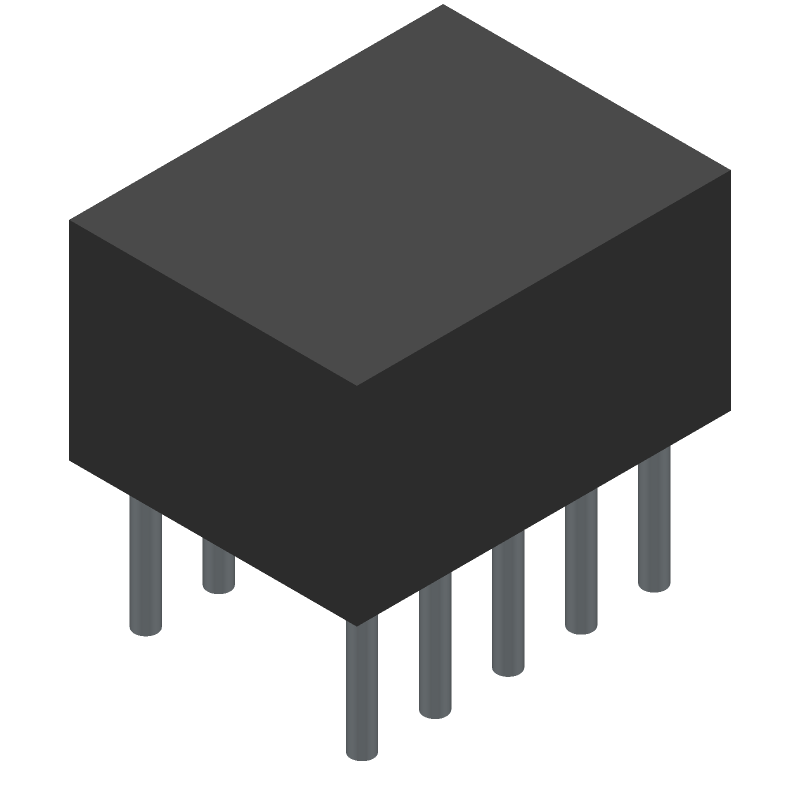

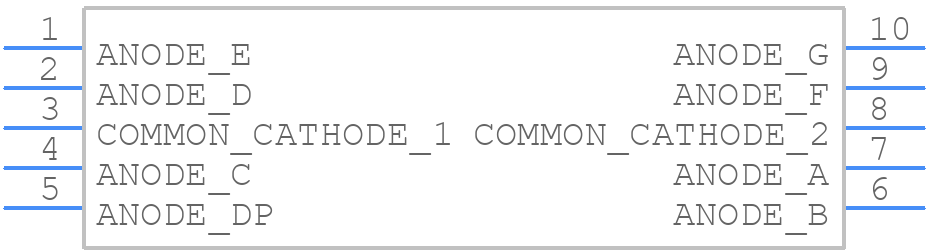

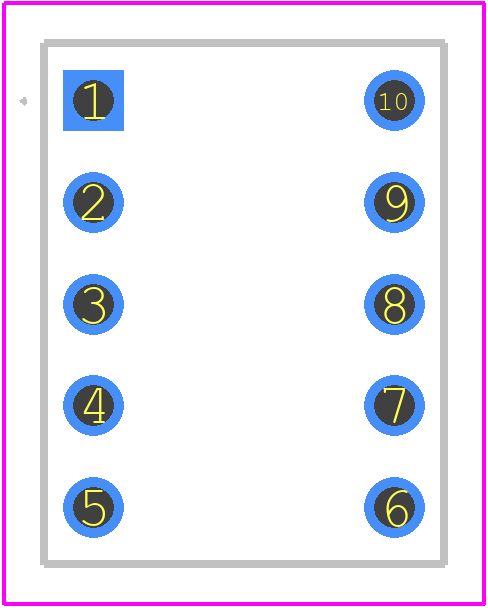

157119S12701 CAD Models
157119S12701 Part Data Attributes
|
|
157119S12701
Wurth Elektronik
Buy Now
Datasheet
|
Compare Parts:
157119S12701
Wurth Elektronik
7 Seg Numeric LED Display, 1-Character, Super Red, 9.9mm,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | WUERTH ELEKTRONIK GMBH & CO KG | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Würth Elektronik | |
| Additional Feature | IEC-61249-2-21 | |
| Color | SUPER RED | |
| Configuration | COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT | |
| Display Height | 9.9 mm | |
| Forward Current-Max | 0.02 A | |
| Forward Voltage-Max | 2.6 V | |
| Luminous Intensity-Nom | 38.0 mcd | |
| Number of Characters | 1 | |
| Number of Functions | 1 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Optoelectronic Device Type | 7 SEG NUMERIC LED DISPLAY | |
| Packing Method | TUBE |
