Connectors / Headers and Edge Type Connectors / 15-91-1043
Datasheets

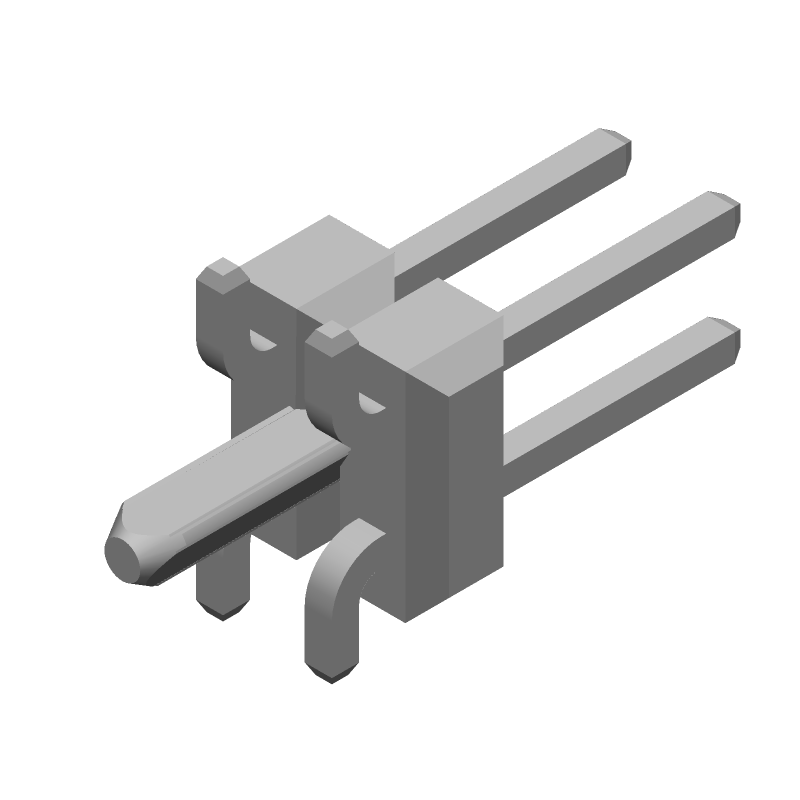

15-91-1043 by: Molex

Board Connector, 4 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle,

Part Details for 15-91-1043 by Molex

Results Overview of 15-91-1043 by Molex

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Space Technology Industrial Automation Aerospace and Defense Transportation and Logistics Renewable Energy Automotive Motor control systems Robotics and Drones

15-91-1043 Information

15-91-1043 by Molex is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Available Datasheets

Part # Manufacturer Description Datasheet
TCAN1043DQ1 Texas Instruments Fault Protected CAN Transceiver With CAN FD and Wake Input 14-SOIC -55 to 125
TCAN1043HGDMTRQ1 Texas Instruments Fault Protected CAN Transceiver With CAN FD and Wake Input 14-VSON -55 to 125
TCAN1043DMTTQ1 Texas Instruments Fault Protected CAN Transceiver With CAN FD and Wake Input 14-VSON -55 to 125

Price & Stock for 15-91-1043

Part # Distributor Description Stock Price Buy
DISTI # 91M1642
Newark Header Connector, pcb Mount, recept,4 Contacts, pin,0.1 Pitch Rohs Compliant: Yes |Molex 15-91-1043 RoHS: Compliant Min Qty: 200 Package Multiple: 1 Date Code: 0 Container: Bulk 11646
  • 1 $0.3760
$0.3760 Buy Now
DISTI # 55H2105
Newark Header Connector, pcb Mount, recept,4 Contacts, pin,0.1 Pitch Rohs Compliant: Yes |Molex 15-91-1043 RoHS: Compliant Min Qty: 5000 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 1,000 $0.3720
$0.3720 Buy Now
DISTI # 0015911043
Avnet Americas - Rail/Tube (Alt: 0015911043) RoHS: Compliant Min Qty: 10000 Package Multiple: 5000 Lead time: 24 Weeks, 0 Days Container: Tube 0
  • 10,000 $0.2801
  • 20,000 $0.2695
  • 30,000 $0.2681
  • 50,000 $0.2667
  • 100,000 $0.2653
$0.2653 / $0.2801 Buy Now
DISTI # 538-15-91-1043
Mouser Electronics Headers & Wire Housings CGrid SMT Hdr w/L.Pe Peg 30 SAu 4Ckt Bulk RoHS: Compliant 0
  • 10,000 $0.2790
$0.2790 Order Now
Onlinecomponents.com Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST SMD C-Grid® Tube RoHS: Compliant 11646 Partner Stock
  • 200 $0.3611
  • 1,000 $0.3529
  • 2,000 $0.3478
  • 3,900 $0.3417
  • 10,000 $0.3101
$0.3101 / $0.3611 Buy Now
DISTI # 16496976
Verical Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST Top Entry SMD C-Grid Tube RoHS: Compliant Min Qty: 184 Package Multiple: 1 Americas - 11646
  • 184 $0.3400
  • 2,000 $0.3300
  • 10,000 $0.2970
$0.2970 / $0.3400 Buy Now
DISTI # 15-91-1043
IBS Electronics CONN UNSHROUDED HEADER HDR 4 POS 2.54MM SOLDER ST TOP ENTRY SMDC-GRID TUBE Min Qty: 385 Package Multiple: 1 11646
  • 385 $0.3450
  • 1,000 $0.3375
  • 2,000 $0.3325
  • 3,900 $0.3262
  • 10,000 $0.2963
$0.2963 / $0.3450 Buy Now
Master Electronics Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST SMD C-Grid® Tube RoHS: Compliant 11646 Partner Stock
  • 200 $0.3611
  • 1,000 $0.3529
  • 2,000 $0.3478
  • 3,900 $0.3417
  • 10,000 $0.3101
$0.3101 / $0.3611 Buy Now

Part Details for 15-91-1043

15-91-1043 Part Data Attributes

Parametric Data
15-91-1043 Molex
Buy Now Datasheet
Compare Parts:
15-91-1043 Molex Board Connector, 4 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle,
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MOLEX LLC
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8536.69.40.40
Factory Lead Time 24 Weeks
Samacsys Manufacturer Molex
Additional Feature C-GRID
Board Mounting Option PEG
Body Breadth 0.24 inch
Body Depth 0.14 inch
Body Length 0.2 inch
Body/Shell Style RECEPTACLE
Connector Type BOARD CONNECTOR
Contact Finish Mating NOT SPECIFIED
Contact Finish Termination MATTE TIN OVER NICKEL
Contact Gender MALE
Contact Material NOT SPECIFIED
Contact Pattern RECTANGULAR
Contact Style SQ PIN-SKT
DIN Conformance NO
Durability 50 Cycles
Filter Feature NO
IEC Conformance NO
Insulation Resistance 1000000000 Ω
Insulator Color BLACK
Insulator Material GLASS FILLED LIQUID CRYSTAL POLYMER
MIL Conformance NO
Mating Contact Pitch 0.1 inch
Mating Contact Row Spacing 0.1 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts NO
Mounting Style STRAIGHT
Mounting Type BOARD
Number Of Connectors ONE
Number Of PCB Rows 2
Number of Rows Loaded 2
Operating Temperature-Max 120 °C
Operating Temperature-Min -40 °C
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
PCB Contact Row Spacing 4.445 mm
Plating Thickness 30u inch
Rated Current (Signal) 3 A
Reference Standard UL, CSA
Terminal Pitch 2.54 mm
Termination Type SURFACE MOUNT
Total Number of Contacts 4
UL Flammability Code 94V-0

Alternate Parts for 15-91-1043

This table gives cross-reference parts and alternative options found for 15-91-1043. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 15-91-1043, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
15-91-1042 Molex $0.6845 Board Connector, 4 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle, 15-91-1043 vs 15-91-1042
Part Number Manufacturer Composite Price Description Compare
15-91-0040 Molex $0.0569 Board Connector, 4 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle, LEAD FREE 15-91-1043 vs 15-91-0040
5-146130-1 TE Connectivity $0.1812 Board Connector, 4 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Black Insulator, Plug 15-91-1043 vs 5-146130-1
146130-1 TE Connectivity $0.7300 04 MODII HDR DRST SFMNT B/A 15-91-1043 vs 146130-1
5-146259-2 TE Connectivity $0.7465 Board Connector, 4 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator 15-91-1043 vs 5-146259-2
146134-1 TE Connectivity Check for Price 04 MODII HDR DRST SFMNT B/A 15-91-1043 vs 146134-1
