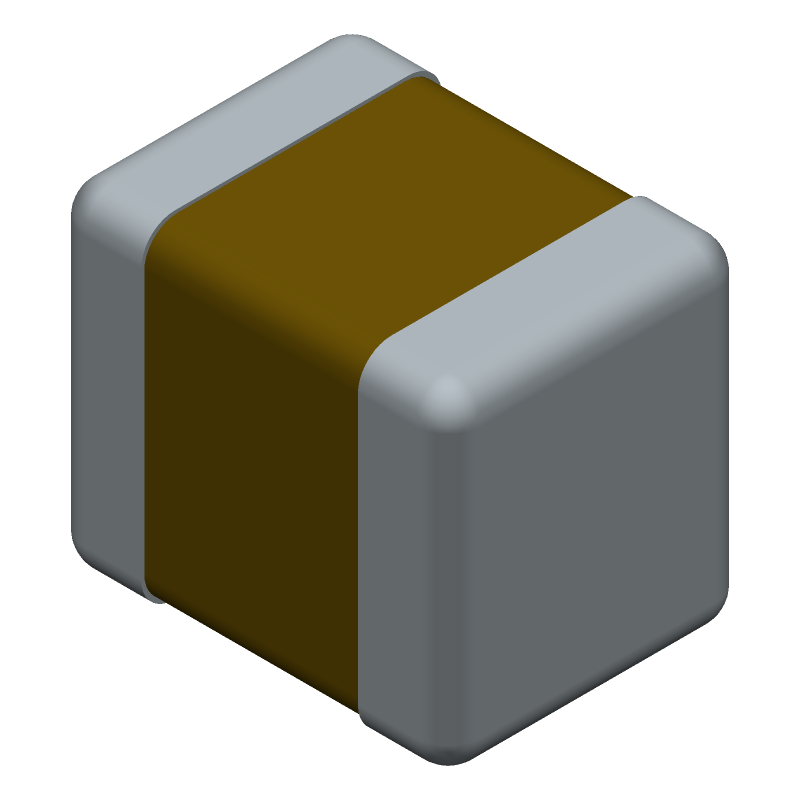

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 1210SC472KAZ2A by Kyocera AVX Components
Results Overview of 1210SC472KAZ2A by Kyocera AVX Components
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (2 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
1210SC472KAZ2A Information
1210SC472KAZ2A by Kyocera AVX Components is a Ceramic Capacitor.
Ceramic Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for 1210SC472KAZ2A
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
478-KGF32LR73N472KUCT-ND
|
DigiKey | CAP CER 4700PF 1.5KV X7R 1210 Min Qty: 1 Lead time: 14 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
15705 In Stock |
|
$0.1055 / $0.4600 | Buy Now |
|
DISTI #
KGF32LR73N472KU
|
Avnet Americas | - Tape and Reel (Alt: KGF32LR73N472KU) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 14 Weeks, 0 Days Container: Reel | 0 |
|
$0.3332 / $0.3556 | Buy Now |
|
DISTI #
581-1210SC472KAZ2A
|
Mouser Electronics | Multilayer Ceramic Capacitors MLCC - SMD/SMT KGF32LR73N472KU NW G LOB PN 1500V 4700pF A 581-KGF32LR73N472KU RoHS: Compliant | 6451 |
|
$0.1050 / $0.4000 | Buy Now |
|
DISTI #
1210SC472KAZ2A
|
TTI | Multilayer Ceramic Capacitors MLCC - SMD/SMT KGF32LR73N472KU NW G LOB PN 1500V 4700pF A 581-KGF32LR73N472KU RoHS: Compliant pbFree: Pb-Free Min Qty: 2000 Package Multiple: 2000 Container: Reel | Americas - 0 |
|
$0.2010 / $0.2220 | Buy Now |
Part Details for 1210SC472KAZ2A
1210SC472KAZ2A CAD Models
1210SC472KAZ2A Part Data Attributes
|
|
1210SC472KAZ2A
Kyocera AVX Components
Buy Now
Datasheet
|
Compare Parts:
1210SC472KAZ2A
Kyocera AVX Components
Ceramic Capacitor, Ceramic
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | KYOCERA AVX COMPONENTS CORP | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.24.00.20 | |
| Factory Lead Time | 14 Weeks | |
| Samacsys Manufacturer | Kyocera AVX | |
| Capacitance | 0.0047 µF | |
| Capacitor Type | CERAMIC CAPACITOR | |
| Dielectric Material | CERAMIC | |
| Height | 2.8 mm | |
| JESD-609 Code | e3 | |
| Length | 3.3 mm | |
| Mounting Feature | SURFACE MOUNT | |
| Multilayer | Yes | |
| Negative Tolerance | 10% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Style | SMT | |
| Packing Method | TR, 7 INCH | |
| Positive Tolerance | 10% | |
| Rated (DC) Voltage (URdc) | 1500 V | |
| Size Code | 1210 | |
| Surface Mount | YES | |
| Temperature Characteristics Code | X7R | |
| Temperature Coefficient | 15% ppm/°C | |
| Terminal Finish | MATTE TIN OVER NICKEL | |
| Terminal Shape | WRAPAROUND | |
| Width | 2.5 mm |
Alternate Parts for 1210SC472KAZ2A
This table gives cross-reference parts and alternative options found for 1210SC472KAZ2A. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 1210SC472KAZ2A, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| KGF32LR73N472KU | Kyocera AVX Components | Check for Price | Ceramic Capacitor, Multilayer, Ceramic, 1500V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.0047uF, Surface Mount, 1210, CHIP | 1210SC472KAZ2A vs KGF32LR73N472KU |
| 1210SC472KAZ4A | Kyocera AVX Components | Check for Price | Ceramic Capacitor, Ceramic, | 1210SC472KAZ2A vs 1210SC472KAZ4A |
1210SC472KAZ2A Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for the 1210SC472KAZ2A capacitor is between 250°C to 260°C for a maximum of 3 seconds.
-
Yes, the 1210SC472KAZ2A capacitor is suitable for high-frequency applications due to its low equivalent series resistance (ESR) and high self-resonant frequency.
-
The 1210SC472KAZ2A capacitor is rated for operation up to 125°C, but it's recommended to derate the voltage and current ratings for extended operation above 85°C.
-
The 1210SC472KAZ2A capacitor has an MSL rating of 3, which means it can withstand exposure to moisture for up to 168 hours without requiring baking before reflow soldering.
-
Yes, the 1210SC472KAZ2A capacitor is compliant with the RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) directives.
