Capacitors / Fixed Capacitors / 1210SC472KAT2A
Datasheets
1210SC472KAT2A by: Kyocera AVX Components

Ceramic Capacitor, Multilayer, Ceramic, 1500V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.0047uF, Surface Mount, 1210, CHIP

Part Details for 1210SC472KAT2A by Kyocera AVX Components

Results Overview of 1210SC472KAT2A by Kyocera AVX Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

1210SC472KAT2A Information

1210SC472KAT2A by Kyocera AVX Components is a Fixed Capacitor.
Fixed Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for 1210SC472KAT2A

Part # Distributor Description Stock Price Buy
DISTI # 64W1225
Newark Mlc Hi Voltage Mfg/Tape/Reel, 7 Inch Paper Tape Rohs Compliant: Yes |Kyocera Avx 1210SC472KAT2A RoHS: Compliant Min Qty: 2000 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 2,000 $0.2660
  • 4,000 $0.2600
  • 10,000 $0.2540
  • 14,000 $0.2500
  • 50,000 $0.2460
  • 100,000 $0.2420
$0.2420 / $0.2660 Buy Now
DISTI # KGM32JR73N472KU
Avnet Americas - Tape and Reel (Alt: KGM32JR73N472KU) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 14 Weeks, 0 Days Container: Reel 0
  • 2,000 $0.2772
  • 4,000 $0.2730
  • 8,000 $0.2687
  • 12,000 $0.2646
  • 16,000 $0.2594
$0.2594 / $0.2772 Buy Now
DISTI # 581-1210SC472KAT2A
Mouser Electronics Multilayer Ceramic Capacitors MLCC - SMD/SMT KGM32JR73N472KU NEW GLOBAL PN 1500V 4700 A 581-KGM32JR73N472KU RoHS: Compliant 1992
  • 1 $0.9700
  • 10 $0.6600
  • 100 $0.4810
  • 500 $0.3990
  • 1,000 $0.3930
  • 2,000 $0.3330
  • 24,000 $0.3070
$0.3070 / $0.9700 Buy Now

Part Details for 1210SC472KAT2A

1210SC472KAT2A CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

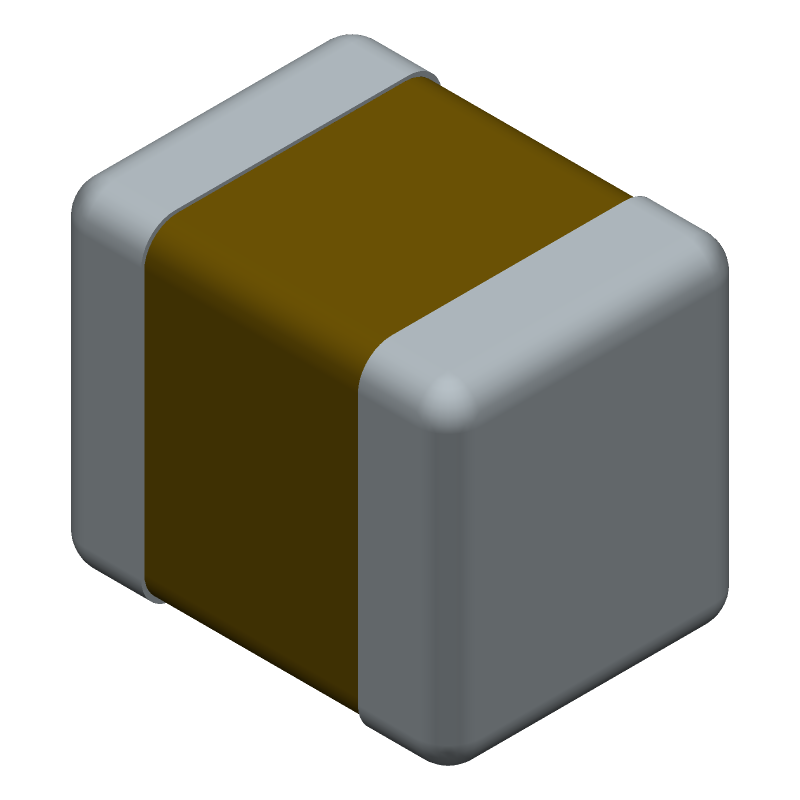

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

1210SC472KAT2A Part Data Attributes

Parametric Data
1210SC472KAT2A Kyocera AVX Components
Buy Now Datasheet
Compare Parts:
1210SC472KAT2A Kyocera AVX Components Ceramic Capacitor, Multilayer, Ceramic, 1500V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.0047uF, Surface Mount, 1210, CHIP
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer KYOCERA AVX COMPONENTS CORP
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8532.24.00.20
Factory Lead Time 14 Weeks
Samacsys Manufacturer Kyocera AVX
Capacitance 0.0047 µF
Capacitor Type CERAMIC CAPACITOR
Dielectric Material CERAMIC
Height 2.2 mm
JESD-609 Code e3
Length 3.3 mm
Mounting Feature SURFACE MOUNT
Multilayer Yes
Negative Tolerance 10%
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Style SMT
Packing Method TR, 7 INCH
Positive Tolerance 10%
Rated (DC) Voltage (URdc) 1500 V
Size Code 1210
Surface Mount YES
Temperature Characteristics Code X7R
Temperature Coefficient 15% ppm/°C
Terminal Finish MATTE TIN OVER NICKEL
Terminal Shape WRAPAROUND
Width 2.5 mm

Alternate Parts for 1210SC472KAT2A

This table gives cross-reference parts and alternative options found for 1210SC472KAT2A. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 1210SC472KAT2A, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
1210SC472KA13A Kyocera AVX Components Check for Price Ceramic Capacitor, Multilayer, Ceramic, 1500V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.0047uF, Surface Mount, 1210, CHIP 1210SC472KAT2A vs 1210SC472KA13A
KGM32JR73N472KU Kyocera AVX Components Check for Price Ceramic Capacitor, Multilayer, Ceramic, 1500V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.0047uF, Surface Mount, 1210, CHIP 1210SC472KAT2A vs KGM32JR73N472KU
1210SC472KA11A Kyocera AVX Components Check for Price Ceramic Capacitor, Multilayer, Ceramic, 1500V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.0047uF, Surface Mount, 1210, CHIP 1210SC472KAT2A vs 1210SC472KA11A
1210SC472KA12A Kyocera AVX Components Check for Price Ceramic Capacitor, Multilayer, Ceramic, 1500V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.0047uF, Surface Mount, 1210, CHIP 1210SC472KAT2A vs 1210SC472KA12A

1210SC472KAT2A Frequently Asked Questions (FAQ)

  • The recommended soldering temperature for the 1210SC472KAT2A capacitor is between 260°C to 280°C for a maximum of 10 seconds.

  • Yes, the 1210SC472KAT2A capacitor is suitable for high-frequency applications due to its low equivalent series resistance (ESR) and high self-resonant frequency (SRF).

  • The maximum voltage derating for the 1210SC472KAT2A capacitor is 80% of the rated voltage, which is 472V in this case.

  • The 1210SC472KAT2A capacitor is not suitable for humid environments as it does not have a moisture-resistant coating. It is recommended to use a capacitor with a moisture-resistant coating or take additional precautions to prevent moisture ingress.

  • The 1210SC472KAT2A capacitor is lead-free and RoHS compliant, making it suitable for use in environmentally friendly designs.
