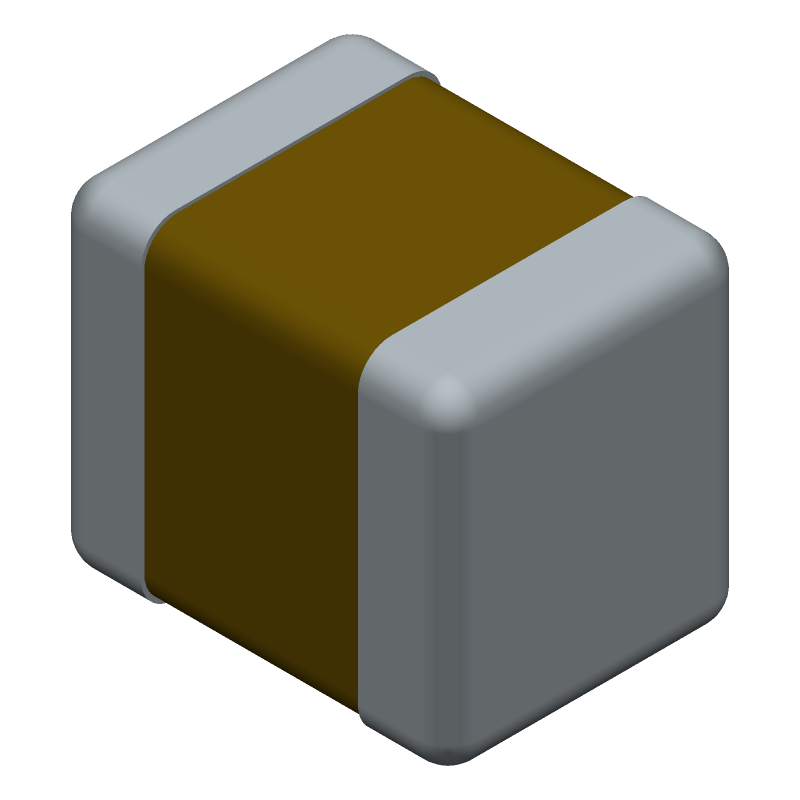

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 1210SC472KAT1A by Kyocera AVX Components
Results Overview of 1210SC472KAT1A by Kyocera AVX Components
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
1210SC472KAT1A Information
1210SC472KAT1A by Kyocera AVX Components is a Ceramic Capacitor.
Ceramic Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for 1210SC472KAT1A
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
09R8543
|
Newark | Mlc Hi Voltage Mfg/Tape/Reel, 7 Inch Paper Tape Rohs Compliant: Yes |Kyocera Avx 1210SC472KAT1A RoHS: Compliant Min Qty: 2000 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$0.2940 / $0.3200 | Buy Now |
|
DISTI #
26AM5431
|
Newark | Mlc Hi Voltage Mfg Rohs Compliant: Yes |Kyocera Avx 1210SC472KAT1A RoHS: Compliant Min Qty: 2000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.2690 | Buy Now |
|
DISTI #
478-11986-1-ND
|
DigiKey | CAP CER 4700PF 1.5KV X7R 1210 Min Qty: 1 Lead time: 14 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
2113 In Stock |
|
$0.2880 / $0.9600 | Buy Now |
|
DISTI #
1210SC472KAT1A
|
Avnet Americas | - Tape and Reel (Alt: 1210SC472KAT1A) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 14 Weeks, 0 Days Container: Reel | 2000 |
|
$0.2582 / $0.2636 | Buy Now |
|
DISTI #
581-1210SC472KAT1A
|
Mouser Electronics | Multilayer Ceramic Capacitors MLCC - SMD/SMT 1.5KV 4700pF X7R 121 0 10% HV RoHS: Compliant | 2218 |
|
$0.2850 / $0.9700 | Buy Now |
Part Details for 1210SC472KAT1A
1210SC472KAT1A CAD Models
1210SC472KAT1A Part Data Attributes
|
|
1210SC472KAT1A
Kyocera AVX Components
Buy Now
Datasheet
|
Compare Parts:
1210SC472KAT1A
Kyocera AVX Components
Capacitor, Ceramic, Chip, General Purpose, 4700pF, 1500V, ±10%, X7R, 1210 (3225 mm), 0.067"T, Sn/NiBar, -55º ~ +125ºC, 7" Reel
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | KYOCERA AVX COMPONENTS CORP | |
| Part Package Code | 1210 | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.24.00.20 | |
| Factory Lead Time | 14 Weeks | |
| Samacsys Manufacturer | Kyocera AVX | |
| Capacitance | 0.0047 µF | |
| Capacitor Type | CERAMIC CAPACITOR | |
| Dielectric Material | CERAMIC | |
| Height | 2.2098 mm | |
| JESD-609 Code | e3 | |
| Length | 3.3 mm | |
| Mounting Feature | SURFACE MOUNT | |
| Multilayer | Yes | |
| Negative Tolerance | 10% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Style | SMT | |
| Packing Method | TR, 7 Inch | |
| Positive Tolerance | 10% | |
| Rated (DC) Voltage (URdc) | 1500 V | |
| Size Code | 1210 | |
| Surface Mount | YES | |
| Temperature Characteristics Code | X7R | |
| Temperature Coefficient | 15% ppm/°C | |
| Terminal Finish | MATTE TIN OVER NICKEL | |
| Terminal Shape | WRAPAROUND | |
| Width | 2.5 mm |
1210SC472KAT1A Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for the 1210SC472KAT1A is between 230°C to 250°C for a maximum of 3 seconds.
-
Yes, the 1210SC472KAT1A is suitable for high-frequency applications due to its low equivalent series resistance (ESR) and high self-resonant frequency.
-
Yes, the 1210SC472KAT1A is AEC-Q200 qualified, making it suitable for use in automotive applications.
-
The 1210SC472KAT1A has a moisture sensitivity level (MSL) of 3, which means it can withstand exposure to moisture for up to 168 hours.
-
Yes, the 1210SC472KAT1A is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant.
