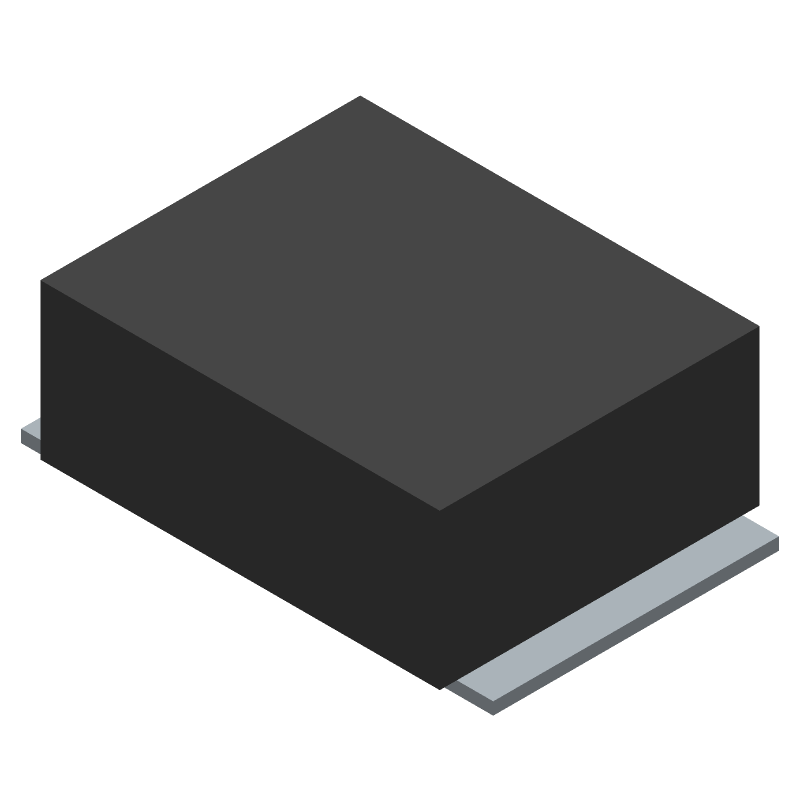

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 1210L005WR by Littelfuse Inc
Results Overview of 1210L005WR by Littelfuse Inc
- Distributor Offerings: (39 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
1210L005WR Information
1210L005WR by Littelfuse Inc is a Non-linear Resistor.
Non-linear Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for 1210L005WR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
78R5542
|
Newark | Ptc Resettable Fuse, 30Vdc, 1210, Thermistor Mounting:Smd, Product Range:Polyfuse 1210L Series, Holding Current:50Ma, Tripping Current:150Ma, Voltage Rating:30Vdc, Operating Temperature Min:-40°C, Operating Temperature Max:85°C, Rohs Compliant: Yes |Littelfuse 1210L005WR RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 2354 |
|
$0.2700 / $0.5190 | Buy Now |
|
DISTI #
05M2311
|
Newark | Ptc Resettable Fuse, 30Vdc, 1210, Pptc Case Style:1210 (3225 Metric), Product Range:Polyswitch 1210L Series, Voltage Rating:30Vdc, Holding Current:50Ma, Trip Current:150Ma, Time To Trip:1.5S, Current Rating Max:10A, Length:3.22Mm Rohs Compliant: Yes |Littelfuse 1210L005WR RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.2020 / $0.2690 | Buy Now |
|
DISTI #
18M4780
|
Newark | Ptc Resettable Fuse, 30Vdc, 1210, Pptc Case Style:1210 (3225 Metric), Product Range:Polyswitch 1210L Series, Voltage Rating:30Vdc, Holding Current:50Ma, Trip Current:150Ma, Time To Trip:1.5S, Current Rating Max:10A, Length:3.22Mm Rohs Compliant: Yes |Littelfuse 1210L005WR RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 0 |
|
$0.2630 | Buy Now |
|
DISTI #
F2999CT-ND
|
DigiKey | PTC RESET FUSE 30V 50MA 1210 Min Qty: 1 Lead time: 13 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
27224 In Stock |
|
$0.1908 / $0.5300 | Buy Now |
|
DISTI #
576-1210L005
|
Mouser Electronics | Resettable Fuses - PPTC 0.05A 30V 1210 RoHS: Compliant | 28050 |
|
$0.1900 / $0.4400 | Buy Now |
|
DISTI #
E02:0323_00179933
|
Arrow Electronics | PTC Resettable Fuse 0.05A(hold) 0.15A(trip) 30VDC 10A 0.6W 1.5s 3.6Ohm SMD Solder Pad 1210 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 13 Weeks | Europe - 30000 |
|
$0.2148 / $0.2329 | Buy Now |
|
DISTI #
V36:1790_06415801
|
Arrow Electronics | PTC Resettable Fuse 0.05A(hold) 0.15A(trip) 30VDC 10A 0.6W 1.5s 3.6Ohm SMD Solder Pad 1210 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 13 Weeks Date Code: 2432 | Americas - 12000 |
|
$0.1896 / $0.2053 | Buy Now |
|
DISTI #
E21:3489_00179933
|
Arrow Electronics | PTC Resettable Fuse 0.05A(hold) 0.15A(trip) 30VDC 10A 0.6W 1.5s 3.6Ohm SMD Solder Pad 1210 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 13 Weeks | Europe - 1184 |
|
$0.1800 / $0.4291 | Buy Now |
|
DISTI #
V72:2272_06415801
|
Arrow Electronics | PTC Resettable Fuse 0.05A(hold) 0.15A(trip) 30VDC 10A 0.6W 1.5s 3.6Ohm SMD Solder Pad 1210 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 13 Weeks Date Code: 2307 Container: Cut Strips | Americas - 97 |
|
$0.2074 / $0.2976 | Buy Now |
|
|
Future Electronics | 1210L Series 1210 30 V 0.05 A Surface Mount POLYFUSE® Resettable PTC RoHS: Compliant pbFree: Yes Min Qty: 3000 Package Multiple: 3000 Lead time: 13 Weeks Container: Reel | 30000Reel |
|
$0.1940 / $0.2000 | Buy Now |
Part Details for 1210L005WR
1210L005WR CAD Models
1210L005WR Part Data Attributes
|
|
1210L005WR
Littelfuse Inc
Buy Now
Datasheet
|
Compare Parts:
1210L005WR
Littelfuse Inc
PTC Resettable Fuse, Surface Mount, CHIP, 1210, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | LITTELFUSE INC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | LITTELFUSE | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Height | 1.25 mm | |
| Package Length | 3.43 mm | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Package Width | 2.8 mm | |
| Packing Method | TR, 7 INCH | |
| Reference Standard | CUL; TUV; UL | |
| Resistance | 3.6 Ω | |
| Resistor Type | PTC RESETTABLE FUSE | |
| Surface Mount | YES | |
| Terminal Finish | MATTE TIN | |
| Terminal Placement | DUAL ENDED | |
| Terminal Shape | WRAPAROUND | |
| Thermistor Application | OVERCURRENT PROTECTION | |
| Working Voltage | 30 V |
1210L005WR Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for the 1210L005WR is between 250°C to 260°C for a maximum of 10 seconds.
-
Yes, the 1210L005WR is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
-
The maximum voltage rating for the 1210L005WR is 5.5V, although it is recommended to operate at a maximum of 5V for optimal performance.
-
The 1210L005WR is rated for operation up to 125°C, but it is not recommended for use in high-temperature applications above 125°C without proper derating.
-
Yes, the 1210L005WR meets the requirements of the AEC-Q200 standard for automotive applications, but it is recommended to consult with Littelfuse Inc for specific application guidance.
