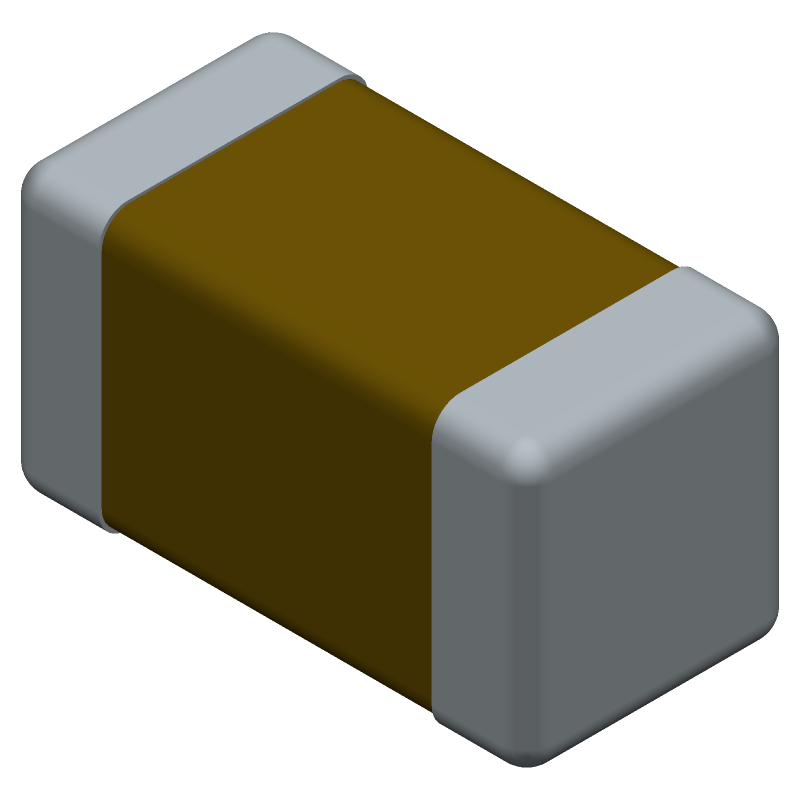

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 1206GC102KAT1A by Kyocera AVX Components
Results Overview of 1206GC102KAT1A by Kyocera AVX Components
- Distributor Offerings: (29 listings)
- Number of FFF Equivalents: (10 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
1206GC102KAT1A Information
1206GC102KAT1A by Kyocera AVX Components is a Ceramic Capacitor.
Ceramic Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for 1206GC102KAT1A
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
18M6892
|
Newark | Ceramic Capacitor 1000Pf 2000V, X7R, 10%, 1206, Capacitance:1000Pf, Voltage(Dc):2Kv, Capacitor Case/Package:1206 [3216 Metric], Capacitance Tolerance:± 10%, Dielectric Characteristic:X7R, Product Range:-, Product Length:3.2Mm Rohs Compliant: Yes |Kyocera Avx 1206GC102KAT1A RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 49430 |
|
$0.0740 | Buy Now |
|
DISTI #
44X0970
|
Newark | Mlc Hi Voltage Mfg/T&r Rohs Compliant: Yes |Kyocera Avx 1206GC102KAT1A RoHS: Compliant Min Qty: 4000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.1850 / $0.2470 | Buy Now |
|
DISTI #
478-2956-1-ND
|
DigiKey | CAP CER 1000PF 2KV X7R 1206 Min Qty: 1 Lead time: 14 Weeks Container: Digi-Reel®, Tape & Reel (TR), Cut Tape (CT) |
38215 In Stock |
|
$0.0546 / $0.3300 | Buy Now |
|
DISTI #
1206GC102KAT1A
|
Avnet Americas | Multilayer Ceramic Capacitor, 1000 pF, 2 kV, ? 10%, X7R, 1206 [3216 Metric] - Tape and Reel (Alt: 1206GC102KAT1A) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 14 Weeks, 0 Days Container: Reel | 247000 |
|
$0.0538 / $0.0549 | Buy Now |
|
DISTI #
1206GC102KAT1A
|
Avnet Americas | Multilayer Ceramic Capacitor, 1000 pF, 2 kV, ? 10%, X7R, 1206 [3216 Metric] - Tape and Reel (Alt: 1206GC102KAT1A) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 111 Weeks, 0 Days Container: Reel | 0 |
|
$0.0165 / $0.0176 | Buy Now |
|
DISTI #
18M6892
|
Avnet Americas | Multilayer Ceramic Capacitor, 1000 pF, 2 kV, ? 10%, X7R, 1206 [3216 Metric] - Product that comes on tape, but is not reeled (Alt: 18M6892) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 11 Weeks, 0 Days Container: Ammo Pack | 0 |
|
$0.1160 / $0.2700 | Buy Now |
|
DISTI #
62W2273
|
Avnet Americas | Multilayer Ceramic Capacitor, 1000 pF, 2 kV, ? 10%, X7R, 1206 [3216 Metric] - Product that comes on tape, but is not reeled (Alt: 62W2273) RoHS: Compliant Min Qty: 10 Package Multiple: 10 Lead time: 111 Weeks, 0 Days Container: Ammo Pack | 0 |
|
$0.1040 / $0.2600 | Buy Now |
|
DISTI #
581-1206GC102K
|
Mouser Electronics | Multilayer Ceramic Capacitors MLCC - SMD/SMT 2kV 1000pF X7R 1206 10% RoHS: Compliant | 188040 |
|
$0.0510 / $0.2700 | Buy Now |
|
DISTI #
V36:1790_07473433
|
Arrow Electronics | Cap Ceramic 0.001uF 2000V X7R 10% Pad SMD 1206 125°C T/R RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 14 Weeks Date Code: 2318 | Americas - 8000 |
|
$0.0534 / $0.0688 | Buy Now |
|
DISTI #
70001740
|
RS | Capacitor, Ceramic, Cap 1000 pF Tol 10%, SMT, 2000V, X7R, TR Min Qty: 1 Package Multiple: 1 Container: Bulk | 3176 |
|
$0.1930 / $0.2270 | Buy Now |
Part Details for 1206GC102KAT1A
1206GC102KAT1A CAD Models
1206GC102KAT1A Part Data Attributes
|
|
1206GC102KAT1A
Kyocera AVX Components
Buy Now
Datasheet
|
Compare Parts:
1206GC102KAT1A
Kyocera AVX Components
Capacitor, Ceramic, Chip, General Purpose, 1000pF, 2000V, ±10%, X7R, 1206 (3216 mm), 0.060"T, Sn/NiBar, -55º ~ +125ºC, 7" Reel
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | KYOCERA AVX COMPONENTS CORP | |
| Part Package Code | 1206 | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.24.00.20 | |
| Factory Lead Time | 111 Weeks | |
| Samacsys Manufacturer | Kyocera AVX | |
| Capacitance | 0.001 µF | |
| Capacitor Type | CERAMIC CAPACITOR | |
| Dielectric Material | CERAMIC | |
| Height | 1.8034 mm | |
| JESD-609 Code | e3 | |
| Length | 3.3 mm | |
| Mounting Feature | SURFACE MOUNT | |
| Multilayer | Yes | |
| Negative Tolerance | 10% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Packing Method | TR, 7 Inch | |
| Positive Tolerance | 10% | |
| Rated (DC) Voltage (URdc) | 2000 V | |
| Size Code | 1206 | |
| Surface Mount | YES | |
| Temperature Characteristics Code | X7R | |
| Temperature Coefficient | 15% ppm/°C | |
| Terminal Finish | Matte Tin (Sn) - with Nickel (Ni) barrier | |
| Terminal Shape | WRAPAROUND | |
| Width | 1.6 mm |
Alternate Parts for 1206GC102KAT1A
This table gives cross-reference parts and alternative options found for 1206GC102KAT1A. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 1206GC102KAT1A, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 1206GC102KAZ2A | Kyocera AVX Components | $0.1982 | Ceramic Capacitor, Multilayer, Ceramic, 2000V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.001uF, Surface Mount, 1206, CHIP | 1206GC102KAT1A vs 1206GC102KAZ2A |
| KGM31AR73D102KL | Kyocera AVX Components | Check for Price | Ceramic Capacitor, Multilayer, Ceramic, 2000V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.001uF, Surface Mount, 1206, CHIP | 1206GC102KAT1A vs KGM31AR73D102KL |
| 1206GC102KAT3A | Kyocera AVX Components | Check for Price | Ceramic Capacitor, Multilayer, Ceramic, 2000V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.001uF, Surface Mount, 1206, CHIP, ROHS COMPLIANT | 1206GC102KAT1A vs 1206GC102KAT3A |
| 1206GC102KA14A | Kyocera AVX Components | Check for Price | Ceramic Capacitor, Multilayer, Ceramic, 2000V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.001uF, Surface Mount, 1206, CHIP | 1206GC102KAT1A vs 1206GC102KA14A |
| C1206X102K202B | SY Sinyork Co Ltd | Check for Price | Ceramic Capacitor, Ceramic, 2000V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 0.001uF, 1206, | 1206GC102KAT1A vs C1206X102K202B |
| 1206X7R102KE8ST | American Technical Ceramics Corp | Check for Price | Ceramic Capacitor, Multilayer, Ceramic, 2000V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 0.001uF, 1206, | 1206GC102KAT1A vs 1206X7R102KE8ST |
| 1206X7R102KT8SB | American Technical Ceramics Corp | Check for Price | Ceramic Capacitor, Multilayer, Ceramic, 2000V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 0.001uF, 1206, | 1206GC102KAT1A vs 1206X7R102KT8SB |
| NMC-H1206X7R102K2KVTRPLPF | NIC Components Corp | Check for Price | Ceramic Capacitor, Multilayer, Ceramic, 2000V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.001uF, Surface Mount, 1206, CHIP, ROHS COMPLIANT | 1206GC102KAT1A vs NMC-H1206X7R102K2KVTRPLPF |
| 1206X7R102KC8SB | American Technical Ceramics Corp | Check for Price | Ceramic Capacitor, Multilayer, Ceramic, 2000V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 0.001uF, 1206, | 1206GC102KAT1A vs 1206X7R102KC8SB |
| 1206GC102KAZ4A | Kyocera AVX Components | Check for Price | Ceramic Capacitor, Ceramic, | 1206GC102KAT1A vs 1206GC102KAZ4A |
1206GC102KAT1A Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for the 1206GC102KAT1A is between 250°C to 260°C for a maximum of 3 seconds.
-
Yes, the 1206GC102KAT1A is a general-purpose capacitor suitable for high-frequency applications up to 1 GHz due to its low equivalent series resistance (ESR) and high self-resonant frequency.
-
The 1206GC102KAT1A has a moisture sensitivity level (MSL) of 3, which means it can withstand exposure to moisture for up to 168 hours without being damaged.
-
The 1206GC102KAT1A is rated for operation up to 125°C, but it's not recommended for use in high-temperature environments above 150°C without derating the voltage and current ratings.
-
Yes, the 1206GC102KAT1A is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in environmentally friendly designs.
