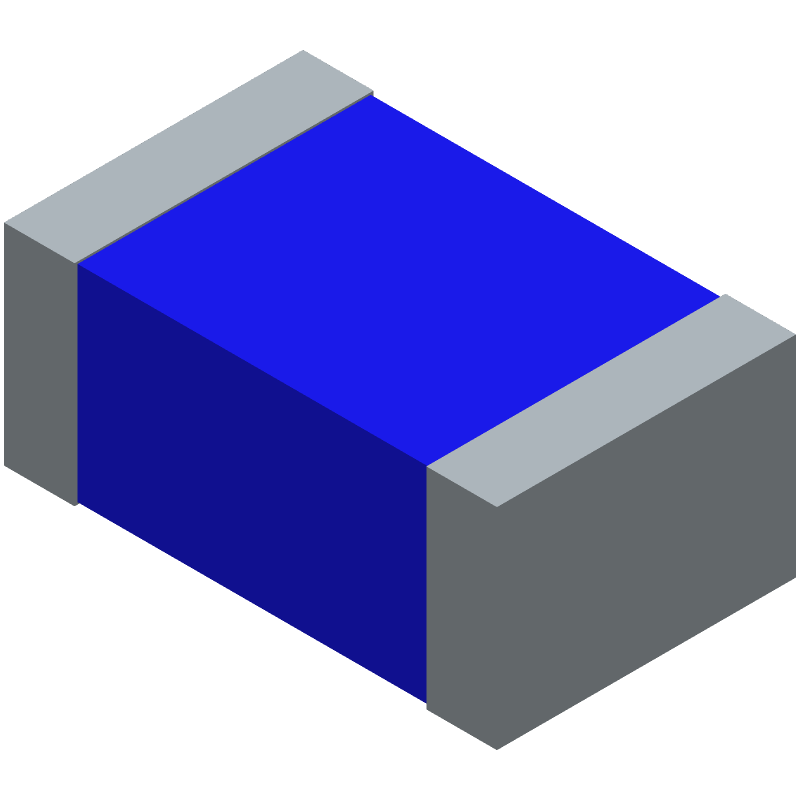

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 1206CS-151XJLC by Coilcraft Inc
Results Overview of 1206CS-151XJLC by Coilcraft Inc
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Renewable Energy
1206CS-151XJLC Information
1206CS-151XJLC by Coilcraft Inc is a Fixed Inductor.
Fixed Inductors are under the broader part category of Inductors.
Inductors are passive components that resist sudden changes in current by storing and releasing energy in an electromagnetic fiel. They are often used in power circuits and energy storage. Read more about Inductors on our Inductors part category page.
Price & Stock for 1206CS-151XJLC
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Coilcraft Direct | RF inductor, ceramic core, 5% tol, SMT, RoHS RoHS: Compliant pbFree: No Min Qty: 1 | 1748 |
|
$0.2900 / $1.0500 | Buy Now |
Part Details for 1206CS-151XJLC
1206CS-151XJLC CAD Models
1206CS-151XJLC Part Data Attributes
|
|
1206CS-151XJLC
Coilcraft Inc
Buy Now
Datasheet
|
Compare Parts:
1206CS-151XJLC
Coilcraft Inc
General Purpose Inductor, 0.15uH, 5%, 1 Element, Ceramic-Core, SMD, 1409, CHIP, 1409, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | COILCRAFT INC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8504.50.80.00 | |
| Samacsys Manufacturer | COILCRAFT | |
| Case/Size Code | 1206 | |
| Construction | Rectangular | |
| Core Material | CERAMIC | |
| DC Resistance | 0.31 Ω | |
| Inductance-Nom (L) | 0.15 µH | |
| Inductor Application | RF INDUCTOR | |
| Inductor Type | GENERAL PURPOSE INDUCTOR | |
| Number of Functions | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Height | 1.52 mm | |
| Package Length | 3.56 mm | |
| Package Style | SMT | |
| Package Width | 2.16 mm | |
| Packing Method | TR, Embossed Plastic, 7 Inch | |
| Quality Factor-Min (at L-nom) | 60 | |
| Rated Current-Max | 0.75 A | |
| Reference Standard | AEC-Q200 | |
| Self Resonance Frequency | 950 MHz | |
| Shape/Size Description | RECTANGULAR PACKAGE | |
| Shielded | NO | |
| Special Feature | Q IS MEASURED AT 300 MHZ | |
| Surface Mount | YES | |
| Terminal Finish | SILVER PALLADIUM PLATINUM | |
| Terminal Placement | DUAL ENDED | |
| Terminal Shape | WRAPAROUND | |
| Test Frequency | 100 MHz | |
| Tolerance | 5% |
1206CS-151XJLC Frequently Asked Questions (FAQ)
-
Coilcraft provides a recommended land pattern for the 1206CS series, which can be found in their application notes or on their website. The land pattern should be designed to minimize thermal resistance and ensure good solderability.
-
The 1206CS-151XJLC has a temperature rating of 125°C. To handle thermal derating, you should consider the maximum operating temperature of your design and derate the inductor's current rating accordingly. Coilcraft provides thermal derating curves in their datasheet or application notes.
-
The self-resonant frequency (SRF) of the 1206CS-151XJLC is not explicitly stated in the datasheet. However, Coilcraft provides an impedance vs. frequency curve in their datasheet, which can be used to estimate the SRF. Alternatively, you can contact Coilcraft's technical support for more information.
-
The 1206CS-151XJLC is a general-purpose inductor suitable for a wide range of frequencies up to several hundred kHz. However, for very high-frequency applications (e.g., above 1 MHz), you may need to consider other inductor options with lower parasitic capacitance and inductance.
-
To ensure proper soldering, follow Coilcraft's recommended soldering profile and use a solder with a melting point compatible with the inductor's temperature rating. Avoid applying excessive heat or mechanical stress during the soldering process.
