Capacitors / Ceramic Capacitors / 1206AC682KAZ2A
Datasheets
1206AC682KAZ2A by: Kyocera AVX Components

Ceramic Capacitor, Multilayer, Ceramic, 1000V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.0068uF, Surface Mount, 1206, CHIP

Part Details for 1206AC682KAZ2A by Kyocera AVX Components

Results Overview of 1206AC682KAZ2A by Kyocera AVX Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

1206AC682KAZ2A Information

1206AC682KAZ2A by Kyocera AVX Components is a Ceramic Capacitor.
Ceramic Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for 1206AC682KAZ2A

Part # Distributor Description Stock Price Buy
DISTI # 96Y8550
Newark Cap, Mlcc, X7R, 6800Pf, 1Kv, 1206, Capacitance:6800Pf, Voltage(Dc):1Kv, Capacitor Case/Package:1206 [3216 Metric], Capacitance Tolerance:± 10%, Dielectric Characteristic:X7R, Product Range:-, Product Length:3.2Mm, Qualification:- Rohs Compliant: Yes |Kyocera Avx 1206AC682KAZ2A RoHS: Compliant Min Qty: 2000 Package Multiple: 1 Date Code: 0 Container: Cut Tape 0
  • 1,000 $0.3620
$0.3620 Buy Now
DISTI # 64W0950
Newark Cap, Mlcc, X7R, 6800Pf, 1Kv, 1206, Capacitance:6800Pf, Voltage(Dc):1Kv, Capacitor Case/Package:1206 [3216 Metric], Capacitance Tolerance:± 10%, Dielectric Characteristic:X7R, Product Range:-, Product Length:3.2Mm, Qualification:- Rohs Compliant: Yes |Kyocera Avx 1206AC682KAZ2A RoHS: Compliant Min Qty: 2000 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 2,000 $0.2720
  • 4,000 $0.2540
$0.2540 / $0.2720 Buy Now
DISTI # 478-KGF31AR73A682KUCT-ND
DigiKey CAP CER 6800PF 1KV X7R 1206 Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 2000
In Stock
  • 1 $0.9100
  • 2,000 $0.1724
$0.1724 / $0.9100 Buy Now
DISTI # KGF31AR73A682KU
Avnet Americas - Tape and Reel (Alt: KGF31AR73A682KU) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 12 Weeks, 0 Days Container: Reel 0
  • 2,000 $0.1421
  • 4,000 $0.1414
  • 8,000 $0.1406
  • 12,000 $0.1399
  • 16,000 $0.1392
$0.1392 / $0.1421 Buy Now
DISTI # 581-1206AC682KAZ2A
Mouser Electronics Multilayer Ceramic Capacitors MLCC - SMD/SMT KGF31AR73A682KU NEW GLOBAL PN 1KV 6800pF A 581-KGF31AR73A682KU RoHS: Compliant 0
  • 1 $0.9100
  • 10 $0.7900
  • 100 $0.6850
  • 500 $0.6270
  • 1,000 $0.5840
  • 2,000 $0.2910
  • 4,000 $0.2520
$0.2520 / $0.9100 Order Now
DISTI # 1206AC682KAZ2A
TTI Multilayer Ceramic Capacitors MLCC - SMD/SMT KGF31AR73A682KU NEW GLOBAL PN 1KV 6800pF A 581-KGF31AR73A682KU RoHS: Compliant pbFree: Pb-Free Min Qty: 2000 Package Multiple: 2000 Container: Reel Americas - 0
  • 2,000 $0.1200
  • 4,000 $0.1180
  • 8,000 $0.1150
  • 12,000 $0.1130
  • 20,000 $0.1110
$0.1110 / $0.1200 Buy Now
DISTI # 1206AC682KAZ2A
Avnet Asia COMMERCIAL CHIP R102 HIGH VOLT TAPE/REEL, 7 INCH PAPER TAPE (Alt: 1206AC682KAZ2A) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 14 Weeks, 0 Days 0
RFQ

Part Details for 1206AC682KAZ2A

1206AC682KAZ2A CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

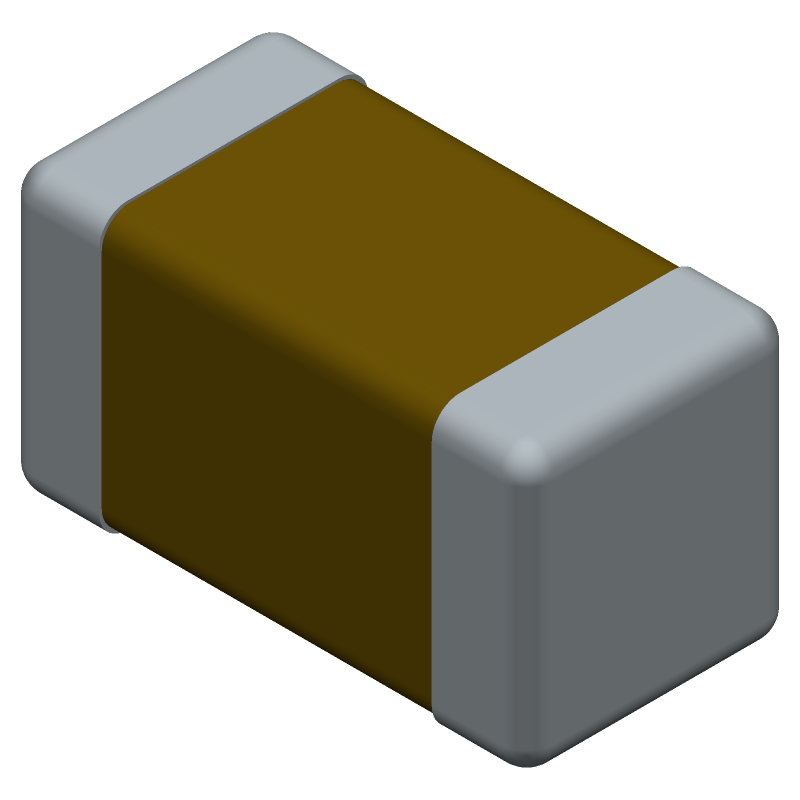

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

1206AC682KAZ2A Part Data Attributes

Parametric Data
1206AC682KAZ2A Kyocera AVX Components
Buy Now Datasheet
Compare Parts:
1206AC682KAZ2A Kyocera AVX Components Ceramic Capacitor, Multilayer, Ceramic, 1000V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.0068uF, Surface Mount, 1206, CHIP
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer KYOCERA AVX COMPONENTS CORP
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8532.24.00.20
Factory Lead Time 12 Weeks
Samacsys Manufacturer Kyocera AVX
Capacitance 0.0068 µF
Capacitor Type CERAMIC CAPACITOR
Dielectric Material CERAMIC
Height 1.8 mm
JESD-609 Code e3
Length 3.3 mm
Mounting Feature SURFACE MOUNT
Multilayer Yes
Negative Tolerance 10%
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Packing Method TR, 7 INCH
Positive Tolerance 10%
Rated (DC) Voltage (URdc) 1000 V
Size Code 1206
Surface Mount YES
Temperature Characteristics Code X7R
Temperature Coefficient 15% ppm/°C
Terminal Finish MATTE TIN OVER NICKEL
Terminal Shape WRAPAROUND
Width 1.6 mm

Alternate Parts for 1206AC682KAZ2A

This table gives cross-reference parts and alternative options found for 1206AC682KAZ2A. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 1206AC682KAZ2A, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
1206X7R682KC6AB American Technical Ceramics Corp Check for Price Ceramic Capacitor, Multilayer, Ceramic, 1000V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 0.0068uF, 1206, 1206AC682KAZ2A vs 1206X7R682KC6AB
CHV1206X1K0682KXTD Cal-Chip Electronics Check for Price Ceramic Capacitor, Ceramic, 1206AC682KAZ2A vs CHV1206X1K0682KXTD
1206AC682KA12A Kyocera AVX Components Check for Price Ceramic Capacitor, Multilayer, Ceramic, 1000V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.0068uF, Surface Mount, 1206, CHIP 1206AC682KAZ2A vs 1206AC682KA12A
C1206X7R102-682KPP VENKEL LTD Check for Price Ceramic Capacitor, Multilayer, Ceramic, 1000V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.0068uF, Surface Mount, 1206, CHIP 1206AC682KAZ2A vs C1206X7R102-682KPP
C1206X7R102-682KNP VENKEL LTD Check for Price Ceramic Capacitor, Multilayer, Ceramic, 1000V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.0068uF, Surface Mount, 1206, CHIP 1206AC682KAZ2A vs C1206X7R102-682KNP
1206X7R682KT6AB American Technical Ceramics Corp Check for Price Ceramic Capacitor, Multilayer, Ceramic, 1000V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 0.0068uF, 1206, 1206AC682KAZ2A vs 1206X7R682KT6AB
1206X7R682KC6SB American Technical Ceramics Corp Check for Price Ceramic Capacitor, Multilayer, Ceramic, 1000V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 0.0068uF, 1206, 1206AC682KAZ2A vs 1206X7R682KC6SB
1206AC682KAT4A Kyocera AVX Components Check for Price Ceramic Capacitor, Multilayer, Ceramic, 1000V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.0068uF, Surface Mount, 1206, CHIP 1206AC682KAZ2A vs 1206AC682KAT4A
NMC-H1206X7R682K1KVTRPLPF NIC Components Corp Check for Price Ceramic Capacitor, Multilayer, Ceramic, 1000V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.0068uF, Surface Mount, 1206, CHIP, ROHS COMPLIANT 1206AC682KAZ2A vs NMC-H1206X7R682K1KVTRPLPF
1206AC682KAT2A Kyocera AVX Components Check for Price Ceramic Capacitor, Multilayer, Ceramic, 1000V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.0068uF, Surface Mount, 1206, CHIP, ROHS COMPLIANT 1206AC682KAZ2A vs 1206AC682KAT2A

1206AC682KAZ2A Frequently Asked Questions (FAQ)

  • The recommended soldering temperature profile for the 1206AC682KAZ2A capacitor is a peak temperature of 260°C for 10-30 seconds, with a ramp-up rate of 3°C/second and a ramp-down rate of 6°C/second.

  • Yes, the 1206AC682KAZ2A capacitor is designed to withstand high-vibration environments, with a vibration endurance of 10-2000 Hz, 10 G peak acceleration, and a vibration amplitude of 1.5 mm.

  • Yes, the 1206AC682KAZ2A capacitor is designed to operate in humid environments, with a moisture sensitivity level (MSL) of 3, which means it can withstand 30°C/60% RH for 168 hours.

  • The expected lifespan of the 1206AC682KAZ2A capacitor is 1000 hours at 125°C, with a capacitance change of ±15% and a dissipation factor of ≤200%.

  • Yes, the 1206AC682KAZ2A capacitor is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, meeting the requirements of EU Directive 2011/65/EU and EU Regulation EC 1907/2006.
