Capacitors / Ceramic Capacitors / 1206AC472KAZ1A
Datasheets
1206AC472KAZ1A by: Kyocera AVX Components

Ceramic Capacitor, Multilayer, Ceramic, 1000V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.0047uF, Surface Mount, 1206, CHIP, ROHS COMPLIANT

Part Details for 1206AC472KAZ1A by Kyocera AVX Components

Results Overview of 1206AC472KAZ1A by Kyocera AVX Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

1206AC472KAZ1A Information

1206AC472KAZ1A by Kyocera AVX Components is a Ceramic Capacitor.
Ceramic Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for 1206AC472KAZ1A

Part # Distributor Description Stock Price Buy
DISTI # 54M5354
Newark Ceramic Capacitor 4700Pf 1000V, X7R, 10%, 1206, Capacitance:4700Pf, Voltage(Dc):1Kv, Capacitor Case/Package:1206 [3216 Metric], Capacitance Tolerance:± 10%, Dielectric Characteristic:X7R, Product Range:-, Product Length:3.2Mm Rohs Compliant: Yes |Kyocera Avx 1206AC472KAZ1A RoHS: Compliant Min Qty: 2000 Package Multiple: 1 Date Code: 0 Container: Cut Tape 0
  • 1,000 $0.2140
$0.2140 Buy Now
DISTI # 478-4668-1-ND
DigiKey CAP CER 4700PF 1KV X7R 1206 Min Qty: 1 Lead time: 14 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 4295
In Stock
  • 1 $0.6500
  • 10 $0.4010
  • 100 $0.2753
  • 1,000 $0.2098
  • 2,000 $0.2010
  • 4,000 $0.1903
  • 6,000 $0.1868
  • 10,000 $0.1651
$0.1651 / $0.6500 Buy Now
DISTI # 1206AC472KAZ1A
Avnet Americas - Tape and Reel (Alt: 1206AC472KAZ1A) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 14 Weeks, 0 Days Container: Reel 0
  • 2,000 $0.1815
  • 4,000 $0.1792
  • 8,000 $0.1762
  • 12,000 $0.1740
  • 16,000 $0.1719
$0.1719 / $0.1815 Buy Now
DISTI # 581-1206AC472KAZ1A
Mouser Electronics Multilayer Ceramic Capacitors MLCC - SMD/SMT 1kV 4700pF X7R 1206 10% Flex Soft RoHS: Compliant 2617
  • 1 $0.6500
  • 10 $0.4010
  • 100 $0.2760
  • 1,000 $0.2100
  • 2,000 $0.2040
  • 4,000 $0.1960
  • 10,000 $0.1950
  • 24,000 $0.1940
$0.1940 / $0.6500 Buy Now
DISTI # 1206AC472KAZ1A
Avnet Asia Cap Ceramic 0.0047uF 1000V X7R 10% SMD 1206 125?C T/R (Alt: 1206AC472KAZ1A) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 9 Weeks, 0 Days 0
RFQ

Part Details for 1206AC472KAZ1A

1206AC472KAZ1A CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

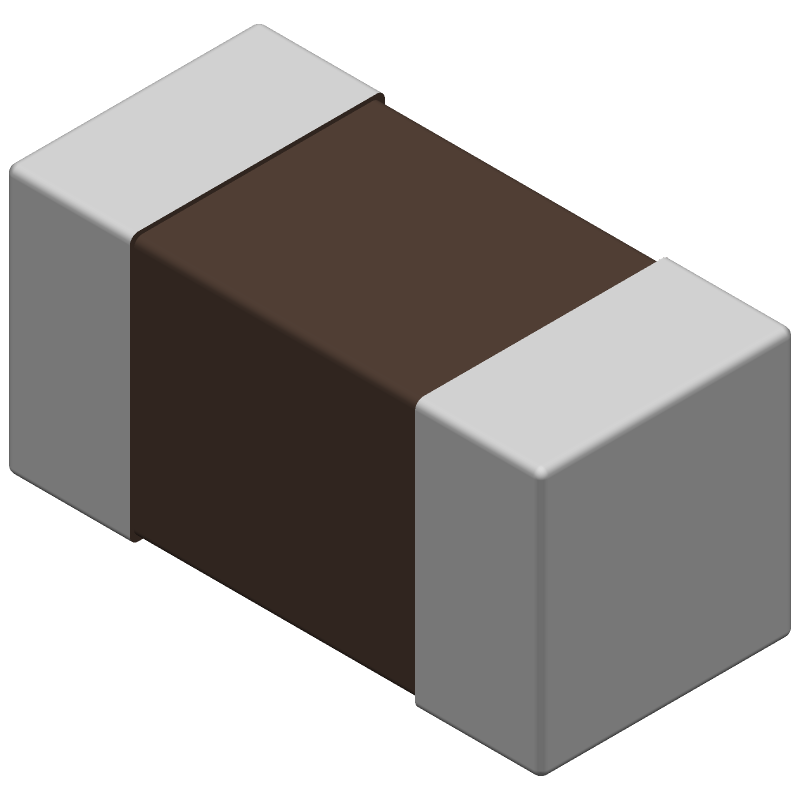

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

1206AC472KAZ1A Part Data Attributes

Parametric Data
1206AC472KAZ1A Kyocera AVX Components
Buy Now Datasheet
Compare Parts:
1206AC472KAZ1A Kyocera AVX Components Ceramic Capacitor, Multilayer, Ceramic, 1000V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.0047uF, Surface Mount, 1206, CHIP, ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Obsolete
Ihs Manufacturer KYOCERA AVX COMPONENTS CORP
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8532.24.00.20
Factory Lead Time 14 Weeks
Samacsys Manufacturer Kyocera AVX
Capacitance 0.0047 µF
Capacitor Type CERAMIC CAPACITOR
Dielectric Material CERAMIC
Height 1.52 mm
JESD-609 Code e3
Length 3.2 mm
Mounting Feature SURFACE MOUNT
Multilayer Yes
Negative Tolerance 10%
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Packing Method TR, 7 INCH
Positive Tolerance 10%
Rated (DC) Voltage (URdc) 1000 V
Size Code 1206
Surface Mount YES
Temperature Characteristics Code X7R
Temperature Coefficient 15% ppm/°C
Terminal Finish MATTE TIN OVER NICKEL
Terminal Shape WRAPAROUND
Width 1.6 mm

Alternate Parts for 1206AC472KAZ1A

This table gives cross-reference parts and alternative options found for 1206AC472KAZ1A. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 1206AC472KAZ1A, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
LD06AC472KAB9A Kyocera AVX Components Check for Price Ceramic Capacitor, Multilayer, Ceramic, 1000V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.0047uF, Surface Mount, 1206, CHIP 1206AC472KAZ1A vs LD06AC472KAB9A
1206AC472KAT9A Kyocera AVX Components Check for Price Ceramic Capacitor, Multilayer, Ceramic, 1000V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.0047uF, Surface Mount, 1206, CHIP, ROHS COMPLIANT 1206AC472KAZ1A vs 1206AC472KAT9A

1206AC472KAZ1A Related Parts

1206AC472KAZ1A Frequently Asked Questions (FAQ)

  • The recommended soldering temperature for the 1206AC472KAZ1A capacitor is between 230°C to 250°C for a maximum of 3 seconds.

  • Yes, the 1206AC472KAZ1A capacitor is suitable for high-frequency applications due to its low equivalent series resistance (ESR) and high self-resonant frequency.

  • Yes, the 1206AC472KAZ1A capacitor is designed to withstand high-vibration environments and meets the requirements of IEC 60068-2-6.

  • Yes, the 1206AC472KAZ1A capacitor is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant.

  • The maximum operating temperature for the 1206AC472KAZ1A capacitor is 125°C.
