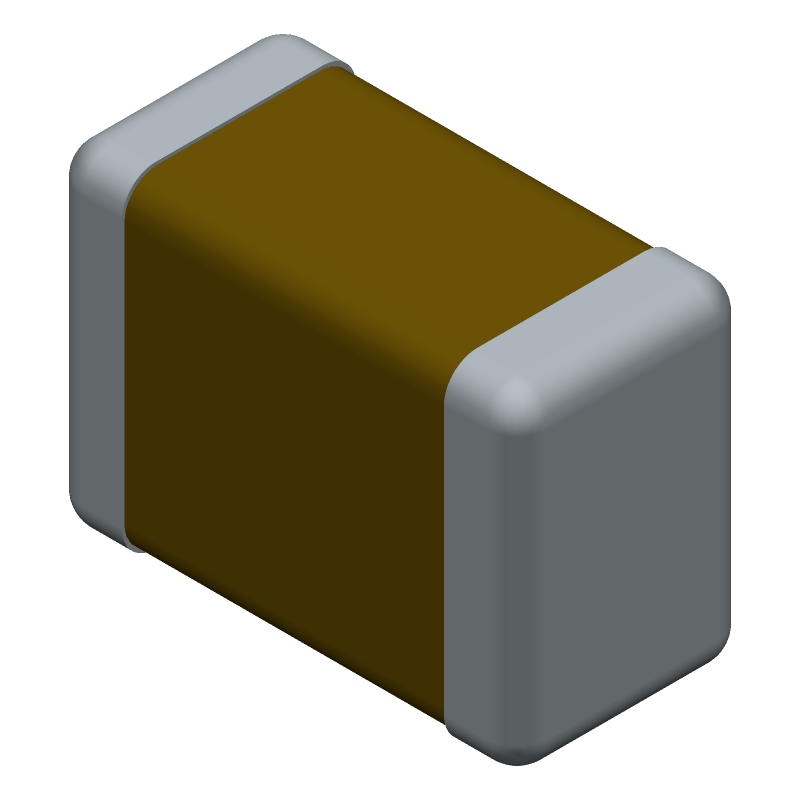

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 12063C106KAT2A by Kyocera AVX Components
Results Overview of 12063C106KAT2A by Kyocera AVX Components
- Distributor Offerings: (22 listings)
- Number of FFF Equivalents: (2 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
12063C106KAT2A Information
12063C106KAT2A by Kyocera AVX Components is a Ceramic Capacitor.
Ceramic Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for 12063C106KAT2A
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
13AC4558
|
Newark | Cap, 10Μf, 25V, 10%, X7R, 1206, Capacitance:10Μf, Voltage Rating:25V, Ceramic Capacitor Case:1206 [3216 Metric], Capacitance Tolerance:± 10%, Dielectric Characteristic:X7R, Product Range:Avx 1206 Mlcc, Operating Temperature Rohs Compliant: Yes |Kyocera Avx 12063C106KAT2A RoHS: Compliant Min Qty: 2000 Package Multiple: 1 Date Code: 1 Container: Reel | 4000 |
|
$0.2870 | Buy Now |
|
DISTI #
91T5709
|
Newark | Multilayer Ceramic Capacitor, 10 F, 10%, X7R, 25 V, 1206 [3216 Metric] Rohs Compliant: Yes |Kyocera Avx 12063C106KAT2A RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 0 |
|
$0.3380 / $0.7700 | Buy Now |
|
DISTI #
478-KGM31AR71E106KUCT-ND
|
DigiKey | CAP CER 10UF 25V X7R 1206 Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
22826 In Stock |
|
$0.2132 / $0.8200 | Buy Now |
|
DISTI #
KGM31AR71E106KU
|
Avnet Americas | SMD Multilayer Ceramic Capacitor, 10 ?F, 25 V, 1206 [3216 Metric], ? 10%, X7R - Tape and Reel (Alt: KGM31AR71E106KU) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 12 Weeks, 0 Days Container: Reel | 80000404000 Factory Stock |
|
$0.1277 / $0.1303 | Buy Now |
|
DISTI #
581-12063C106KAT2A
|
Mouser Electronics | Multilayer Ceramic Capacitors MLCC - SMD/SMT 25V 10uF X7R 1206 10 % RoHS: Compliant | 8503 |
|
$0.2170 / $0.7600 | Buy Now |
|
DISTI #
V36:1790_07466402
|
Arrow Electronics | Cap Ceramic 10uF 25V X7R 10% Pad SMD 1206 125°C T/R RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 12 Weeks Date Code: 2238 | Americas - 478000 |
|
$0.1932 / $0.1940 | Buy Now |
|
DISTI #
V72:2272_07466402
|
Arrow Electronics | Cap Ceramic 10uF 25V X7R 10% Pad SMD 1206 125°C T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2205 Container: Cut Strips | Americas - 1 |
|
$0.2178 | Buy Now |
|
DISTI #
70473522
|
RS | 1206 FlEXITERM 10uF Ceramic Multilayer Cap,25V,+125C, X7R Dielectric,+/-10% SMD Min Qty: 250 Package Multiple: 1 Container: Bulk | 0 |
|
$0.2590 | RFQ |
|
|
Future Electronics | 1206 10 uF 25 V ±10 % Tolerance X7R Surface Mount Multilayer Ceramic Capacitor RoHS: Compliant pbFree: Yes Min Qty: 2000 Package Multiple: 2000 Lead time: 18 Weeks Container: Reel | 2000Reel |
|
$0.2150 / $0.2200 | Buy Now |
|
|
Future Electronics | 1206 10 uF 25 V ±10 % Tolerance X7R Surface Mount Multilayer Ceramic Capacitor RoHS: Compliant pbFree: Yes Min Qty: 1 Package Multiple: 1 Lead time: 18 Weeks Container: Cut Tape/Mini-Reel | 1675Cut Tape/Mini-Reel |
|
$0.4000 / $0.6450 | Buy Now |
Part Details for 12063C106KAT2A
12063C106KAT2A CAD Models
12063C106KAT2A Part Data Attributes
|
|
12063C106KAT2A
Kyocera AVX Components
Buy Now
Datasheet
|
Compare Parts:
12063C106KAT2A
Kyocera AVX Components
Capacitor, Ceramic, Chip, General Purpose, 10uF, 25V, ±10%, X7R, 1206 (3216 mm), Sn/NiBar, -55º ~ +125ºC, 7" Reel
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | KYOCERA AVX COMPONENTS CORP | |
| Part Package Code | 1206 | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.24.00.20 | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | Kyocera AVX | |
| Capacitance | 10 µF | |
| Capacitor Type | CERAMIC CAPACITOR | |
| Dielectric Material | CERAMIC | |
| Height | 2.29 mm | |
| JESD-609 Code | e3 | |
| Length | 3.2 mm | |
| Mounting Feature | SURFACE MOUNT | |
| Multilayer | Yes | |
| Negative Tolerance | 10% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Packing Method | TR, EMBOSSED, 7 INCH | |
| Positive Tolerance | 10% | |
| Rated (DC) Voltage (URdc) | 25 V | |
| Size Code | 1206 | |
| Surface Mount | YES | |
| Temperature Characteristics Code | X7R | |
| Temperature Coefficient | 15% ppm/°C | |
| Terminal Finish | Matte Tin (Sn) - with Nickel (Ni) barrier | |
| Terminal Shape | WRAPAROUND | |
| Width | 1.6 mm |
Alternate Parts for 12063C106KAT2A
This table gives cross-reference parts and alternative options found for 12063C106KAT2A. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 12063C106KAT2A, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 12063C106KAT4A | Kyocera AVX Components | Check for Price | Capacitor, Ceramic, Chip, General Purpose, 10uF, 25V, ±10%, X7R, 1206 (3216 mm), Sn/NiBar, -55º ~ +125ºC, 13" Reel | 12063C106KAT2A vs 12063C106KAT4A |
| 12063C106KAZ2A | Kyocera AVX Components | Check for Price | Ceramic Capacitor, Multilayer, Ceramic, 25V, 10% +Tol, 10% -Tol, X7R, 15% TC, 10uF, Surface Mount, 1206, CHIP | 12063C106KAT2A vs 12063C106KAZ2A |
12063C106KAT2A Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for the 12063C106KAT2A is between 230°C to 250°C for a maximum of 3 seconds.
-
Yes, the 12063C106KAT2A capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, and cadmium.
-
The ESR of the 12063C106KAT2A is approximately 0.05 ohms at 100 kHz.
-
Yes, the 12063C106KAT2A is designed to withstand high-vibration environments, making it suitable for use in applications such as automotive, aerospace, and industrial control systems.
-
The MSL of the 12063C106KAT2A is 3, which means it can withstand exposure to moisture for up to 168 hours without being damaged.
