1108M2S3ABE2 Information
1108M2S3ABE2 by C&K is a Slide Switch.
Slide Switches are under the broader part category of Switches.
Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.
Price & Stock for 1108M2S3ABE2
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
42AJ2252
|
Newark | On-(On) Momentary 0.02A 20Vdc 5 Pcb Hole Cnt |C&k Components 1108M2S3ABE2 RoHS: Not Compliant Min Qty: 30 Package Multiple: 1 Date Code: 0 Container: Bulk | 150 |
|
$6.0000 / $7.3800 | Buy Now |
|
DISTI #
36AH0968
|
Newark | 1108M2S3Abe2 |C&k Components 1108M2S3ABE2 RoHS: Not Compliant Min Qty: 3200 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$6.0600 | Buy Now |
|
DISTI #
108-1108M2S3ABE2-ND
|
DigiKey | SLIDE SWITCHES Min Qty: 80 Lead time: 13 Weeks Container: Tray | Temporarily Out of Stock |
|
$6.0596 | Buy Now |
|
DISTI #
611-1108M2S3ABE2
|
Mouser Electronics | Slide Switches 1108M2S3ABE2 RoHS: Compliant | 0 |
|
$5.7000 / $12.0900 | Order Now |
|
DISTI #
19515669
|
Verical | Switch Slide Mom None ON SPDT Side Slide 20VAC 20VDC 0.4VA PC Pins Bracket Mount/Through Hole Bulk RoHS: Compliant Min Qty: 14 Package Multiple: 1 | Americas - 75 |
|
$4.4000 / $4.7500 | Buy Now |
|
DISTI #
65690068
|
Verical | Switch Slide Mom None ON SPDT Side Slide 20VAC 20VDC 0.4VA PC Pins Bracket Mount/Through Hole Bulk RoHS: Compliant Min Qty: 14 Package Multiple: 1 | Americas - 75 |
|
$4.4000 / $4.7500 | Buy Now |
|
DISTI #
000000000005185562
|
Sager | Slide Switches 1108M2S3ABE2 Min Qty: 80 | 0 |
|
$4.6900 / $5.1800 | Buy Now |
Part Details for 1108M2S3ABE2
1108M2S3ABE2 CAD Models
1108M2S3ABE2 Part Data Attributes
|
|
1108M2S3ABE2
C&K
Buy Now
Datasheet
|
Compare Parts:
1108M2S3ABE2
C&K

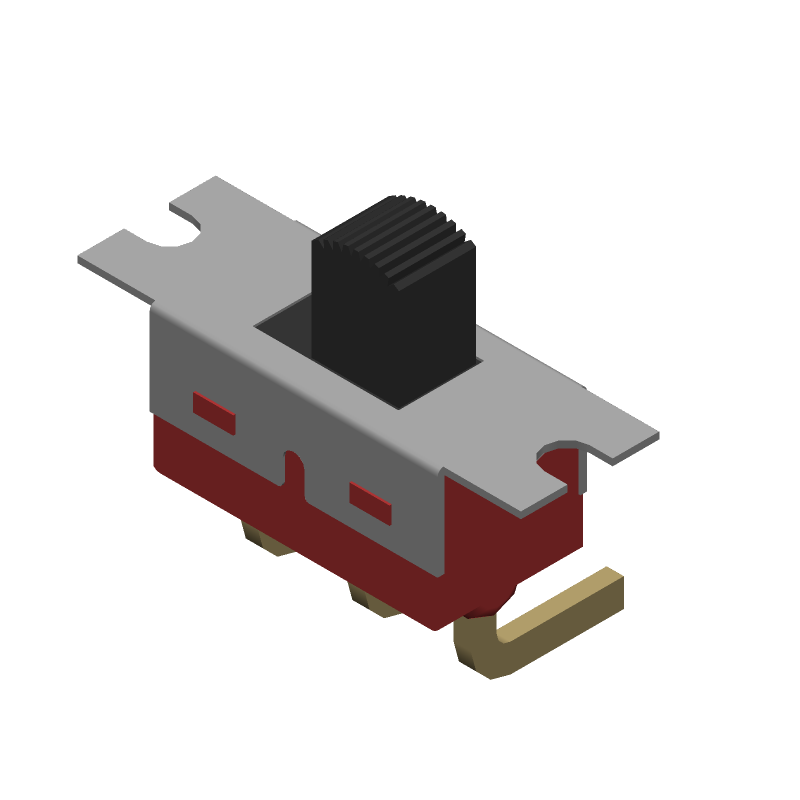

SLIDE SWITCH, SPDT, MOMENTARY, 0.02A, 20VDC, THROUGH HOLE-RIGHT ANGLE, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | C & K COMPONENTS LLC | |
| Package Description | ROHS COMPLIANT | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.50.90.40 | |
| Factory Lead Time | 20 Weeks | |
| Samacsys Manufacturer | C & K COMPONENTS | |
| Actuator Angle | ||
| Actuator Color | BLACK | |
| Actuator Length | 0.186 inch | |
| Actuator Material | NYLON | |
| Actuator Type | HIGH TYPE | |
| Body Breadth | 9.53 mm | |
| Body Height | 6.6 mm | |
| Body Length or Diameter | 12.7 mm | |
| Center Contact Material | COPPER ALLOY | |
| Center Contact Plating | GOLD OVER NICKEL | |
| Contact (AC) Max Rating R Load | .02A@20VAC | |
| Contact Current(AC)-Max | 0.02 A | |
| Contact Current(DC)-Max | 0.02 A | |
| Contact (DC) Max Power Rating R Load | 0.4VA@20VDC | |
| Contact (DC) Max Rating R Load | .02A@20VDC | |
| Contact Function | ON-(ON) | |
| Contact Resistance | 0.01 mΩ | |
| Contact Voltage(AC)-Max | 20 V | |
| Contact Voltage(DC)-Max | 20 V | |
| Dielectric Withstand Volts | 1000VRMS V | |
| Electrical Life | 100000 Cycle(s) | |
| End Contact Material | COPPER ALLOY | |
| End Contact Plating | GOLD OVER NICKEL | |
| Housing Material | STAINLESS STEEL | |
| Insulation Resistance | 1000000000 Ω | |
| Insulator Material | DIALLYL PHTHALATE | |
| JESD-609 Code | e4 | |
| Mounting Feature | THROUGH HOLE-RIGHT ANGLE | |
| Operating Temperature-Max | 65 °C | |
| Operating Temperature-Min | -30 °C | |
| PCB Hole Count | 5 | |
| Sealing | EPOXY TERMINAL SEALED | |
| Solderability | MIL-STD | |
| Surface Mount | NO | |
| Switch Action | MOMENTARY | |
| Switch Function | SPDT | |
| Switch Type | SLIDE SWITCH | |
| Terminal Finish | GOLD OVER NICKEL | |
| Terminal Length | 0.125 inch | |
| Terminal Material | COPPER ALLOY | |
| Termination Type | SOLDER | |
| Washability | PARTIAL |
