1101M2S3V3BE2 by:

SLIDE SWITCH, SPDT, LATCHED, 0.02A, 20VDC, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT

Part Details for 1101M2S3V3BE2 by C&K

Results Overview of 1101M2S3V3BE2 by C&K

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research

1101M2S3V3BE2 Information

1101M2S3V3BE2 by C&K is a Slide Switch.
Slide Switches are under the broader part category of Switches.

Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.

Price & Stock for 1101M2S3V3BE2

Part # Distributor Description Stock Price Buy
DISTI # 36AH0874
Newark Miniature Slide Switch, Spdt, 20V, Tht, Contact Configuration:Spdt, Switch Operation:On-None-On, Switch Mounting:Through Hole, Product Range:1000 Series, Contact Current Max:-, Contact Voltage Ac Max:20V, Contact Voltage Dc Max:20V Rohs Compliant: Yes |C&k Components 1101M2S3V3BE2 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 4
  • 1 $7.7200
  • 5 $7.1100
  • 10 $6.5000
  • 25 $6.2500
  • 50 $5.5700
  • 100 $4.8800
  • 250 $4.4600
$4.4600 / $7.7200 Buy Now
DISTI # CKN5048-ND
DigiKey SWITCH SLIDE SPDT 0.4VA 20V Min Qty: 1 Lead time: 13 Weeks Container: Tray 553
In Stock
  • 1 $7.7300
  • 10 $6.4240
  • 80 $5.4085
  • 160 $5.1214
  • 320 $4.8620
  • 560 $4.6726
  • 1,040 $4.4834
$4.4834 / $7.7300 Buy Now
DISTI # 611-1101M2S3V3BE2
Mouser Electronics Slide Switches ON None ON SPDT 20VAC 20VDC 0.4W RoHS: Compliant 312
  • 1 $7.2200
  • 10 $6.4300
  • 80 $5.1200
  • 240 $4.8600
  • 560 $4.6700
  • 1,040 $4.0400
$4.0400 / $7.2200 Buy Now
DISTI # 70128256
RS Switch, Slide, Sealed, SPDT, ON-NONE-ON, PC Mnt,.200 Blk Act,0.4A,20VAC/DC, V Bracket Min Qty: 80 Package Multiple: 1 Lead time: 9 Weeks, 0 Days Container: Bulk 0
  • 80 $7.1400
  • 400 $6.5700
$6.5700 / $7.1400 RFQ
Future Electronics 1000 Series SPDT 0.4VA 20V Through Hole Slide Switch RoHS: Compliant pbFree: Yes Min Qty: 80 Package Multiple: 80 Lead time: 10 Weeks Container: Tray 5040
Tray
  • 80 $4.2400
  • 160 $4.1600
$4.1600 / $4.2400 Buy Now
Future Electronics   RoHS: Compliant pbFree: Yes Min Qty: 20 Package Multiple: 1 0
  • 20 $4.1500
$4.1500 Buy Now
DISTI # 87806160
Verical Switch Slide ON None ON SPDT Top Slide 20VAC 20VDC 0.4VA PC Pins Bracket Mount/Through Hole Bulk RoHS: Compliant Min Qty: 80 Package Multiple: 80 Date Code: 2503 Americas - 2800
  • 80 $5.3003
  • 160 $5.0190
  • 320 $4.7647
$4.7647 / $5.3003 Buy Now
DISTI # 73572095
Verical Switch Slide ON None ON SPDT Top Slide 20VAC 20VDC 0.4VA PC Pins Bracket Mount/Through Hole Bulk RoHS: Compliant Min Qty: 5 Package Multiple: 5 Date Code: 2338 Americas - 560
  • 5 $15.7560
  • 500 $15.5220
  • 1,000 $15.2880
  • 2,400 $15.0540
  • 4,800 $7.6960
$7.6960 / $15.7560 Buy Now
Future Electronics 1000 Series SPDT 0.4VA 20V Through Hole Slide Switch Min Qty: 80 Package Multiple: 80 5040
null
  • 80 $4.0700
  • 160 $3.9900
$3.9900 / $4.0700 Buy Now
DISTI # 1101M2S3V3BE2
TME Switch: slide, Pos: 2, SPDT, 0.4A/20VDC, ON-ON, THT, -30÷65°C, 1000 Min Qty: 80 0
  • 80 $4.4800
$4.4800 RFQ
DISTI # 000000000000018187
Sager Slide Switches ON None ON SPDT 20VAC 20VDC 0.4W Min Qty: 80 0
  • 80 $4.5800
  • 160 $4.4500
  • 320 $4.3300
  • 640 $4.1500
$4.1500 / $4.5800 Buy Now
New Advantage Corporation   RoHS: Compliant Min Qty: 1 Package Multiple: 80 4000
  • 80 $6.7800
  • 4,000 $6.2600
$6.2600 / $6.7800 Buy Now

Part Details for 1101M2S3V3BE2

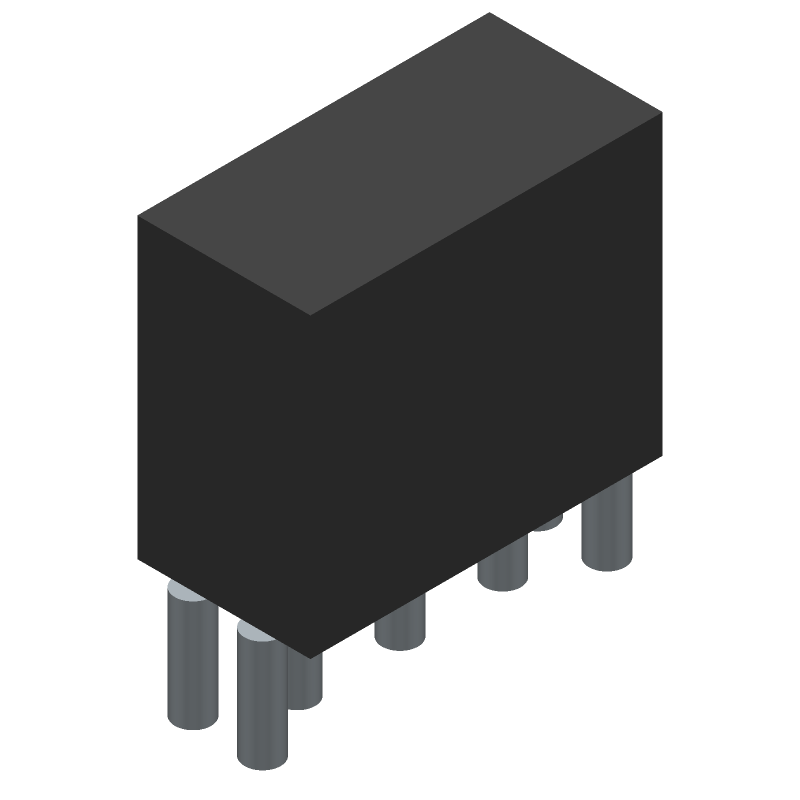

1101M2S3V3BE2 CAD Models

1101M2S3V3BE2 Part Data Attributes

1101M2S3V3BE2 C&K
Buy Now Datasheet
Compare Parts:
1101M2S3V3BE2 C&K SLIDE SWITCH, SPDT, LATCHED, 0.02A, 20VDC, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer C & K COMPONENTS LLC
Package Description ROHS COMPLIANT
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8536.50.90.50
Factory Lead Time 19 Weeks, 3 Days
Samacsys Manufacturer C & K COMPONENTS
Actuator Color BLACK
Actuator Length 0.2 inch
Actuator Material NYLON
Actuator Type HIGH TYPE
Body Breadth 7.92 mm
Body Height 8.89 mm
Body Length or Diameter 15.75 mm
Center Contact Material COPPER ALLOY
Center Contact Plating GOLD OVER NICKEL
Contact (AC) Max Power Rating R Load 0.4VA@20VAC
Contact (AC) Max Rating R Load .02A@20VAC
Contact Current(AC)-Max 0.02 A
Contact Current(DC)-Max 0.02 A
Contact (DC) Max Rating R Load .02A@20VDC
Contact Resistance 0.01 mΩ
Contact Voltage(AC)-Max 20 V
Contact Voltage(DC)-Max 20 V
Dielectric Withstand Volts 1000VRMS V
Electrical Life 100000 Cycle(s)
End Contact Material COPPER ALLOY
End Contact Plating GOLD OVER NICKEL
Housing Material STAINLESS STEEL
Insulation Resistance 1000000000 Ω
Insulator Material DIALLYL PHTHALATE
JESD-609 Code e4
Mounting Feature THROUGH HOLE-STRAIGHT
Operating Temperature-Max 65 °C
Operating Temperature-Min -30 °C
Sealing EPOXY TERMINAL SEALED
Solderability MIL-STD
Surface Mount NO
Switch Action LATCHED
Switch Function SPDT
Switch Type SLIDE SWITCH
Terminal Finish GOLD OVER NICKEL
Terminal Material COPPER ALLOY
Termination Type SOLDER

Alternate Parts for 1101M2S3V3BE2

This table gives cross-reference parts and alternative options found for 1101M2S3V3BE2. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 1101M2S3V3BE2, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
1101M2S3V3KE2 C&K Check for Price SLIDE SWITCH,STRAIGHT,SPDT,ON-ON,PC TAIL TERMINAL,7 1101M2S3V3BE2 vs 1101M2S3V3KE2
1101M2S3V3SE2 C&K Check for Price SLIDE SWITCH, SPDT, LATCHED, 6A, 28VDC, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT 1101M2S3V3BE2 vs 1101M2S3V3SE2
1101M2S3V3PE2 C&K Check for Price SLIDE SWITCH, SPDT, LATCHED, 0.02A, 20VDC, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT 1101M2S3V3BE2 vs 1101M2S3V3PE2
1101M2S3V3RE3 C&K Check for Price SLIDE SWITCH, SPDT, LATCHED, 0.4A, 28VDC, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT 1101M2S3V3BE2 vs 1101M2S3V3RE3
Part Number Manufacturer Composite Price Description Compare
1101M2S3V3QE2 C&K $4.2115 SLIDE SWITCH,STRAIGHT,SPDT,ON-ON,PC TAIL TERMINAL,7 1101M2S3V3BE2 vs 1101M2S3V3QE2
1101M2S3V3QE3 C&K Check for Price SLIDE SWITCH 1101M2S3V3BE2 vs 1101M2S3V3QE3
1101M2S3V3PE3 C&K Check for Price SLIDE SWITCH, SPDT, LATCHED, 0.02A, 20VDC, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT 1101M2S3V3BE2 vs 1101M2S3V3PE3
1101M2S3V3GE1 C&K Check for Price SLIDE SWITCH, SPDT, LATCHED, 0.4A, 28VDC, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT 1101M2S3V3BE2 vs 1101M2S3V3GE1
1101M2S3V3RE2 C&K Check for Price SLIDE SWITCH, SPDT, LATCHED, 0.4A, 28VDC, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT 1101M2S3V3BE2 vs 1101M2S3V3RE2
1101M2S3V3BE1 C&K Check for Price SLIDE SWITCH, SPDT, LATCHED, 0.02A, 20VDC, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT 1101M2S3V3BE2 vs 1101M2S3V3BE1
1101M2S3V3GE3 C&K Check for Price SLIDE SWITCH, SPDT, LATCHED, 0.4A, 28VDC, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT 1101M2S3V3BE2 vs 1101M2S3V3GE3
1101M2S3V3RE1 C&K Check for Price SLIDE SWITCH, SPDT, LATCHED, 0.4A, 28VDC, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT 1101M2S3V3BE2 vs 1101M2S3V3RE1
1101M2S3V3SE3 C&K Check for Price SLIDE SWITCH, SPDT, LATCHED, 6A, 28VDC, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT 1101M2S3V3BE2 vs 1101M2S3V3SE3

1101M2S3V3BE2 Related Parts

1101M2S3V3BE2 Frequently Asked Questions (FAQ)

  • The recommended operating temperature range for the 1101M2S3V3BE2 is -40°C to 85°C.

  • Yes, the 1101M2S3V3BE2 is designed for high-reliability applications and meets the requirements of MIL-PRF-39012.

  • The expected lifespan of the 1101M2S3V3BE2 switch is 1 million cycles minimum, depending on the operating conditions.

  • Yes, the 1101M2S3V3BE2 switch is designed to operate in harsh environments, including high vibration, shock, and humidity.

  • Yes, the 1101M2S3V3BE2 switch is compliant with RoHS and REACH regulations, making it suitable for use in EU markets.
