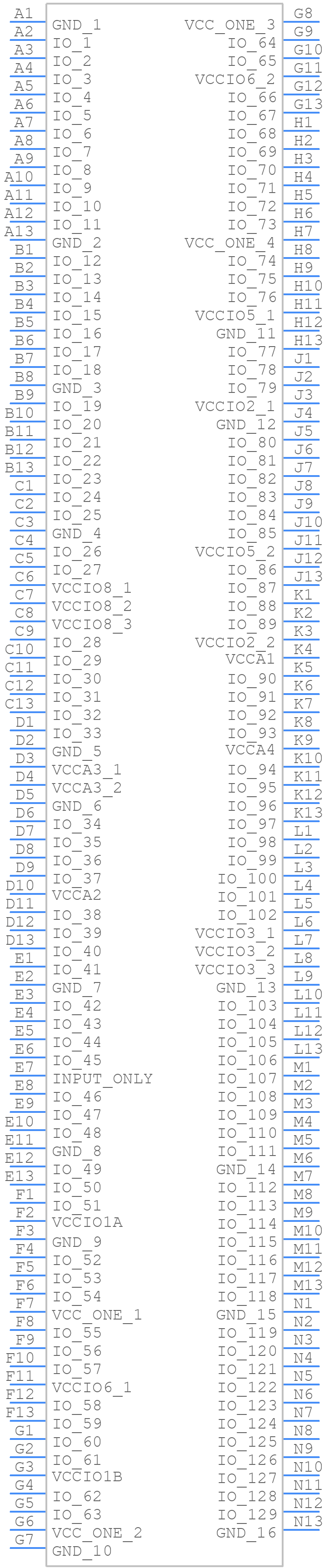

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 10M08SCU169A7G by Intel Corporation
Results Overview of 10M08SCU169A7G by Intel Corporation
- Distributor Offerings: (0 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
10M08SCU169A7G Information
10M08SCU169A7G by Intel Corporation is a Field Programmable Gate Array.
Field Programmable Gate Arrays are under the broader part category of Programmable Logic Devices.
Programmable Logic Devices (PLDs) are reconfigurable digital components that can be customized for different applications, offering flexibility and improved performance over fixed logic devices. Read more about Programmable Logic Devices on our Programmable Logic part category page.
Part Details for 10M08SCU169A7G
10M08SCU169A7G CAD Models
10M08SCU169A7G Part Data Attributes
|
|
10M08SCU169A7G
Intel Corporation
Buy Now
Datasheet
|
Compare Parts:
10M08SCU169A7G
Intel Corporation
Field Programmable Gate Array, 8000-Cell, CMOS, PBGA169, 11 X 11 MM, 0.80 MM PITCH, ROHS COMPLIANT, UBGA-169
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | INTEL CORP | |
| Package Description | 11 X 11 MM, 0.80 MM PITCH, ROHS COMPLIANT, UBGA-169 | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Intel | |
| Additional Feature | ALSO OPERATES AT 3.3 V NOMINAL SUPPLY | |
| JESD-30 Code | S-PBGA-B169 | |
| Length | 11 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of CLBs | 500 | |
| Number of Inputs | 250 | |
| Number of Logic Cells | 8000 | |
| Number of Outputs | 250 | |
| Number of Terminals | 169 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Organization | 500 CLBS | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | BGA | |
| Package Equivalence Code | BGA169,13X13,32 | |
| Package Shape | SQUARE | |
| Package Style | GRID ARRAY | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Programmable Logic Type | FIELD PROGRAMMABLE GATE ARRAY | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.55 mm | |
| Supply Voltage-Max | 3.15 V | |
| Supply Voltage-Min | 2.85 V | |
| Supply Voltage-Nom | 3 V | |
| Surface Mount | YES | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Form | BALL | |
| Terminal Pitch | 0.8 mm | |
| Terminal Position | BOTTOM | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Width | 11 mm |
10M08SCU169A7G Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the 10M08SCU169A7G is -40°C to 100°C.
-
To implement a CDC in the 10M08SCU169A7G, use a synchronizer circuit or a FIFO-based CDC, and ensure that the clock domains are properly isolated and synchronized.
-
The maximum frequency achievable with the 10M08SCU169A7G depends on the specific design and implementation, but Intel's Quartus II software can help estimate the maximum frequency based on the design's complexity and resource utilization.
-
To optimize power consumption in the 10M08SCU169A7G, use power-aware design techniques such as clock gating, voltage scaling, and dynamic voltage and frequency scaling, and leverage Intel's PowerPlay power analysis and optimization tools.
-
The 10M08SCU169A7G can be configured using JTAG, AS, or PS mode, and supports various configuration devices such as EPCQ, EPCQ-L, and I2C-based devices.
