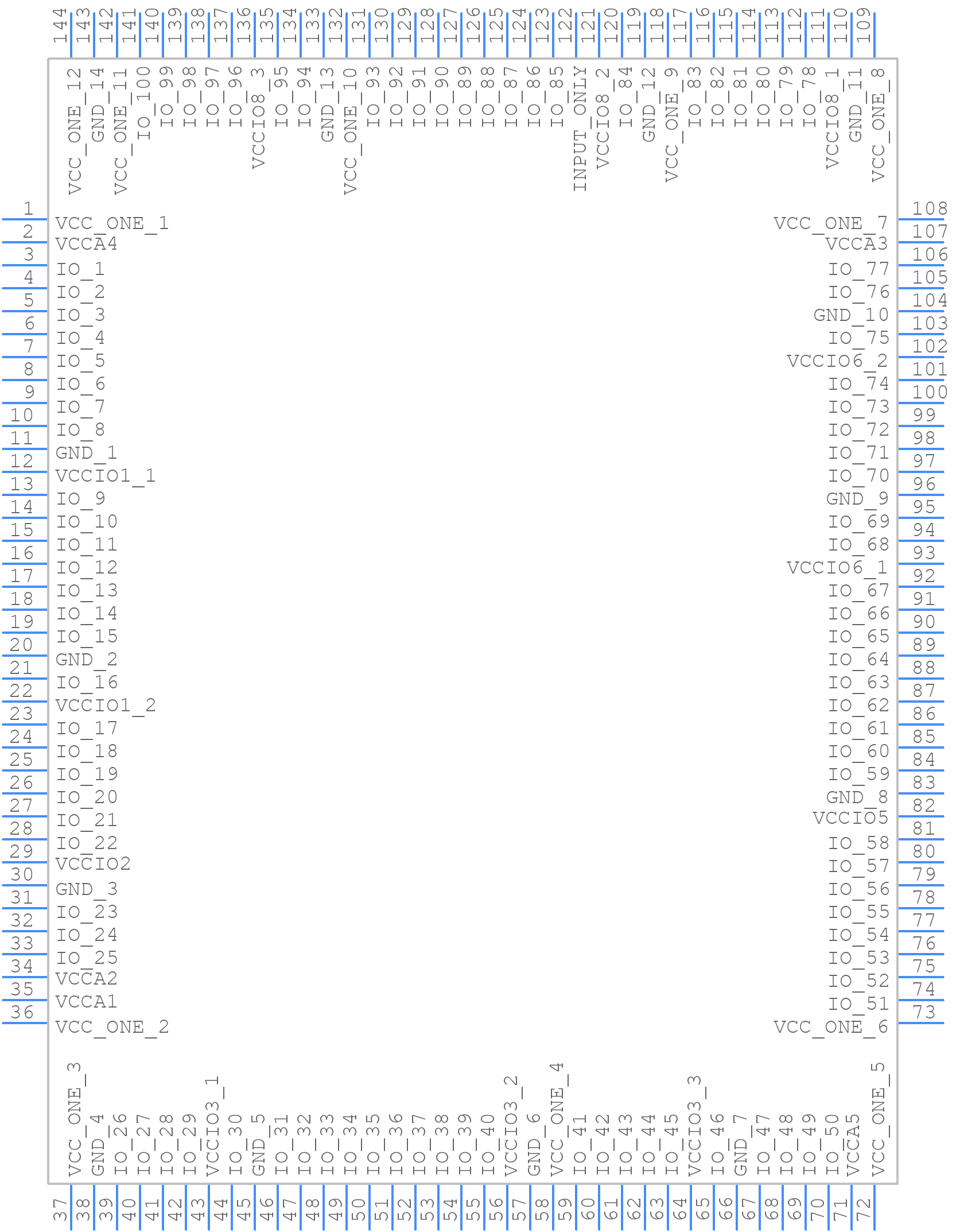

Part Symbol
-

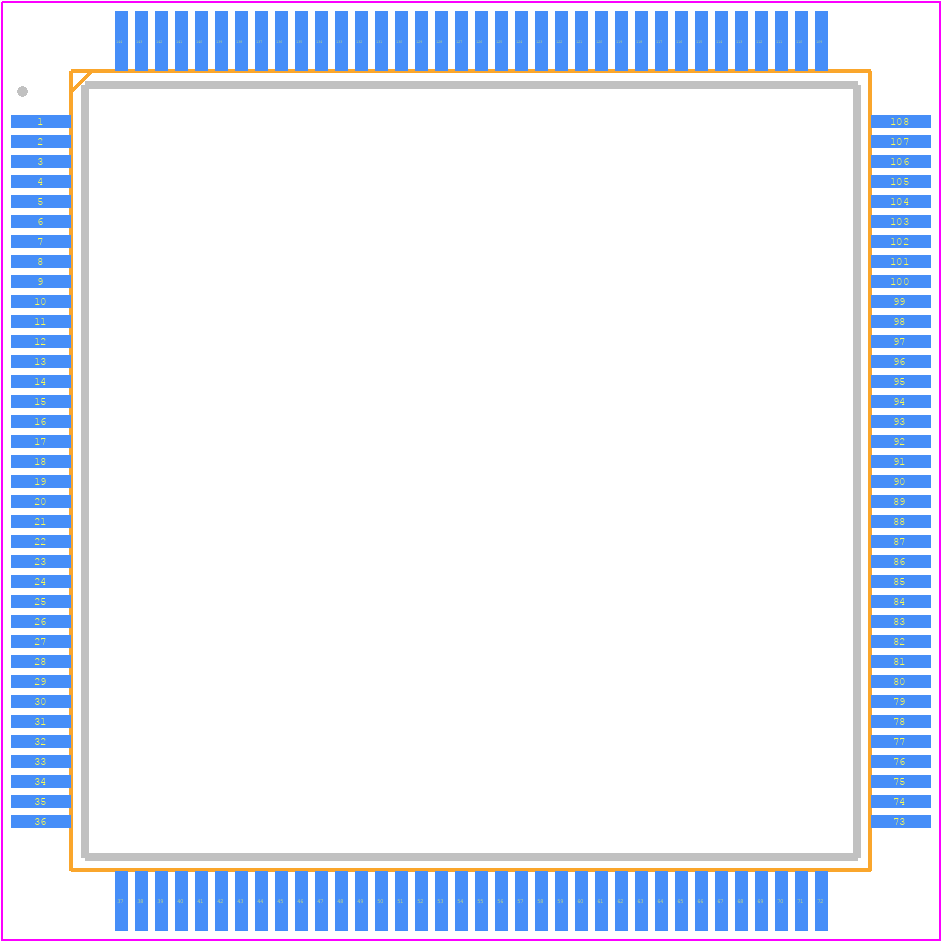

Footprint
-

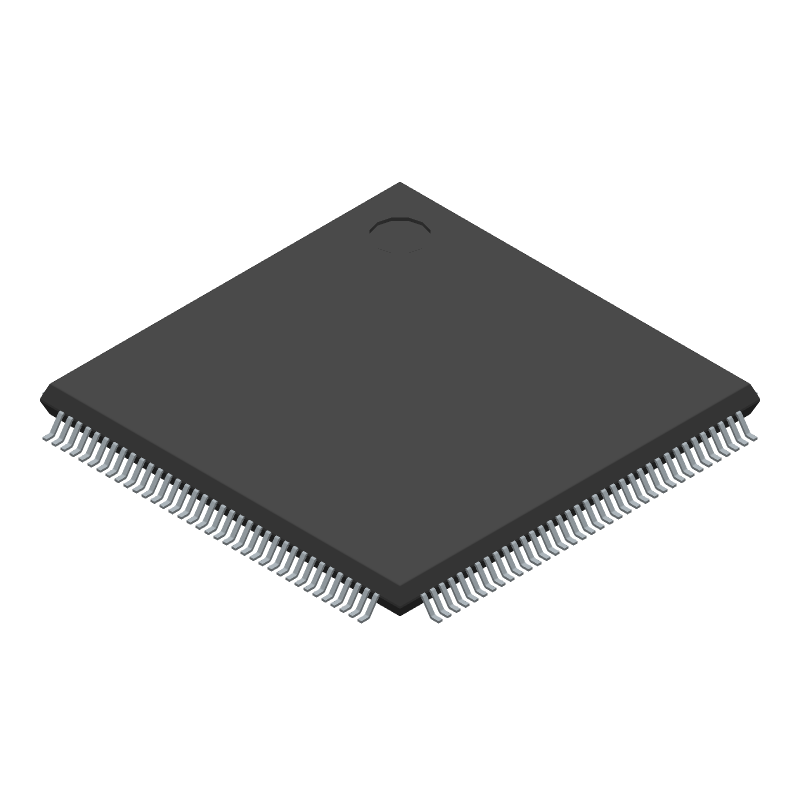

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 10M02SCE144C8G by Intel Corporation
Results Overview of 10M02SCE144C8G by Intel Corporation
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (2 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Computing and Data Storage
Telecommunications
10M02SCE144C8G Information
10M02SCE144C8G by Intel Corporation is a Field Programmable Gate Array.
Field Programmable Gate Arrays are under the broader part category of Programmable Logic Devices.
Programmable Logic Devices (PLDs) are reconfigurable digital components that can be customized for different applications, offering flexibility and improved performance over fixed logic devices. Read more about Programmable Logic Devices on our Programmable Logic part category page.
Price & Stock for 10M02SCE144C8G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | 1 |
|
RFQ | ||
|
|
Quest Components | FIELD PROGRAMMABLE GATE ARRAY, 2000-CELL, PQFP144 | 1 |
|
$12.0000 | Buy Now |
|
DISTI #
SMC-10M02SCE144C8G
|
Sensible Micro Corporation | OEM Excess 5-7 Days Leadtime, We are an AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days | 51 |
|
RFQ | |
|
|
MacroQuest Electronics | ISO 9001: 2015, ISO 14001:2015, ISO 45001:2018 | 860 |
|
$7.1300 / $8.9000 | Buy Now |
|
|
Win Source Electronics | IC FPGA 101 I/O 144EQFP | 6000 |
|
$6.7376 / $8.7026 | Buy Now |
Part Details for 10M02SCE144C8G
10M02SCE144C8G CAD Models
10M02SCE144C8G Part Data Attributes
|
|
10M02SCE144C8G
Intel Corporation
Buy Now
Datasheet
|
Compare Parts:
10M02SCE144C8G
Intel Corporation
Field Programmable Gate Array, 2000-Cell, CMOS, PQFP144, 22 X 22 MM, 0.50 MM PITCH, ROHS COMPLIANT, PLASTIC, EQFP-144
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | INTEL CORP | |
| Package Description | 22 X 22 MM, 0.50 MM PITCH, ROHS COMPLIANT, PLASTIC, EQFP-144 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Intel | |
| Additional Feature | ALSO OPERATES AT 3.3 V NOMINAL SUPPLY | |
| JESD-30 Code | S-PQFP-G144 | |
| Length | 20 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of CLBs | 125 | |
| Number of Inputs | 246 | |
| Number of Logic Cells | 2000 | |
| Number of Outputs | 246 | |
| Number of Terminals | 144 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | ||
| Organization | 125 CLBS | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | QFP | |
| Package Equivalence Code | HQFP144,.87SQ,20 | |
| Package Shape | SQUARE | |
| Package Style | FLATPACK | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Programmable Logic Type | FIELD PROGRAMMABLE GATE ARRAY | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.65 mm | |
| Supply Voltage-Max | 3.15 V | |
| Supply Voltage-Min | 2.85 V | |
| Supply Voltage-Nom | 3 V | |
| Surface Mount | YES | |
| Temperature Grade | OTHER | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Width | 20 mm |
Alternate Parts for 10M02SCE144C8G
This table gives cross-reference parts and alternative options found for 10M02SCE144C8G. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 10M02SCE144C8G, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 10M02SCE144C8 | Intel Corporation | Check for Price | Field Programmable Gate Array, PQFP144, 22 X 22 MM, 0.50 MM PITCH, PLASTIC, EQFP-144 | 10M02SCE144C8G vs 10M02SCE144C8 |
| 10M02SCE144C8GES | Altera Corporation | Check for Price | Field Programmable Gate Array | 10M02SCE144C8G vs 10M02SCE144C8GES |
10M02SCE144C8G Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the 10M02SCE144C8G is -40°C to 100°C.
-
To implement a CDC in the 10M02SCE144C8G, use a synchronizer circuit or a FIFO-based CDC to ensure data integrity across clock domains.
-
The recommended power-on sequence for the 10M02SCE144C8G is to power up the core voltage (VCC) first, followed by the auxiliary voltage (VCCAUX) and then the input/output voltage (VCCIO).
-
To optimize timing closure for the 10M02SCE144C8G, use the Intel Quartus Prime software to analyze and optimize the design's timing, and consider using techniques such as pipelining, retiming, and clock gating.
-
The maximum current draw for the 10M02SCE144C8G depends on the specific configuration and operating conditions, but the typical current draw is around 1.5A for the core voltage (VCC) and 0.5A for the auxiliary voltage (VCCAUX).
