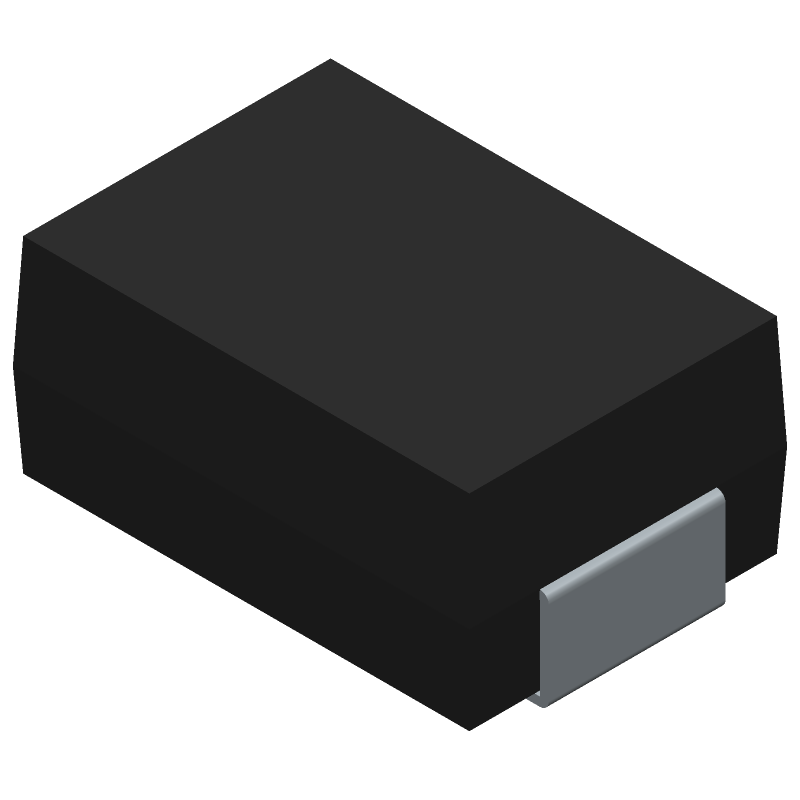

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 10BQ060 by Vishay Intertechnologies
Results Overview of 10BQ060 by Vishay Intertechnologies
- Distributor Offerings: (0 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (8 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Space Technology
Aerospace and Defense
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
10BQ060 Information
10BQ060 by Vishay Intertechnologies is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Part Details for 10BQ060
10BQ060 CAD Models
10BQ060 Part Data Attributes
|
|
10BQ060
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
10BQ060
Vishay Intertechnologies
Rectifier Diode, Schottky, 1 Element, 1A, 60V V(RRM), Silicon, DO-214AA, SMB, SIMILAR TO DO-214AA, 2 PIN
|
| Pbfree Code | No | |
| Rohs Code | No | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Part Package Code | DO-214AA | |
| Package Description | SMB, SIMILAR TO DO-214AA, 2 PIN | |
| Pin Count | 2 | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.80 | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | FREE WHEELING DIODE, HIGH RELIABILITY | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 0.57 V | |
| JEDEC-95 Code | DO-214AA | |
| JESD-30 Code | R-PDSO-C2 | |
| JESD-609 Code | e0 | |
| Non-rep Pk Forward Current-Max | 42 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Current-Max | 1 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 60 V | |
| Surface Mount | YES | |
| Technology | SCHOTTKY | |
| Terminal Finish | TIN LEAD | |
| Terminal Form | C BEND | |
| Terminal Position | DUAL |
Alternate Parts for 10BQ060
This table gives cross-reference parts and alternative options found for 10BQ060. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 10BQ060, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 10BQ060 | Microchip Technology Inc | Check for Price | Rectifier Diode, Schottky, 1 Phase, 1 Element, 1A, 60V V(RRM), Silicon, DO-214BA | 10BQ060 vs 10BQ060 |
10BQ060 Frequently Asked Questions (FAQ)
-
The recommended land pattern for the 10BQ060 is a rectangular pad with a size of 1.5 mm x 2.5 mm, with a solder mask clearance of 0.2 mm.
-
To ensure reliable soldering, use a soldering iron with a temperature of 250°C to 270°C, and apply a small amount of solder paste to the pads. Avoid overheating the component or the PCB.
-
The maximum allowed voltage derating for the 10BQ060 is 10% of the rated voltage, i.e., 54 V for a 60 V rated device.
-
Yes, the 10BQ060 is rated for operation up to 150°C, but the maximum junction temperature should not exceed 150°C. Ensure proper thermal management and heat sinking to prevent overheating.
-
Store the 10BQ060 in its original packaging or in a dry, cool place, away from direct sunlight and moisture. Avoid bending or flexing the leads during handling.
