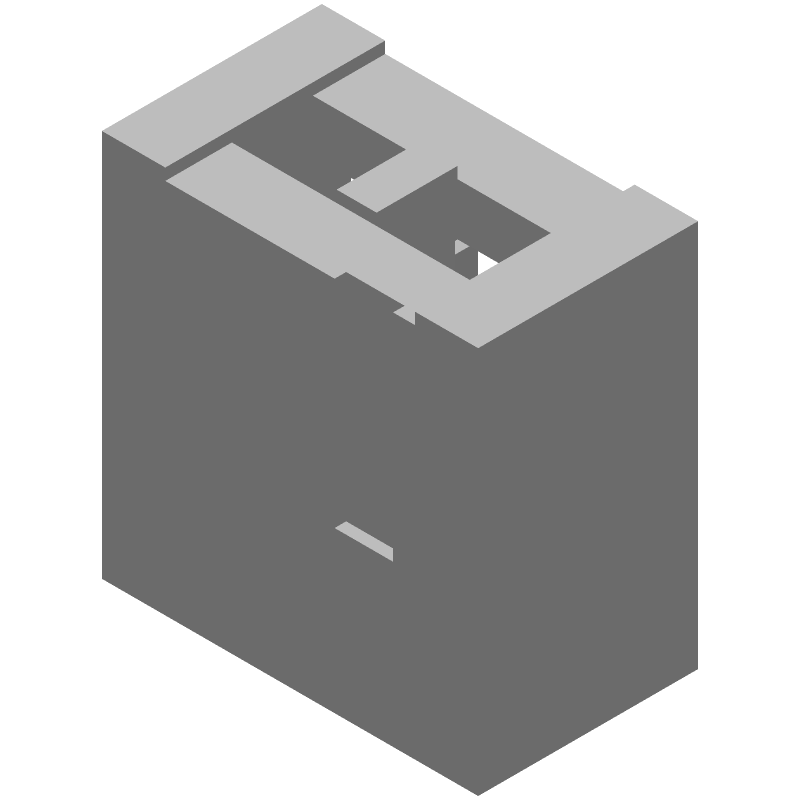

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 10156618-0200LF by Amphenol Communications Solutions
Results Overview of 10156618-0200LF by Amphenol Communications Solutions
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Security and Surveillance
Environmental Monitoring
Internet of Things (IoT)
Space Technology
Smart Cities
Aerospace and Defense
Healthcare
Agriculture Technology
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Medical Imaging
Robotics and Drones
10156618-0200LF Information
10156618-0200LF by Amphenol Communications Solutions is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for 10156618-0200LF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
68AH8667
|
Newark | Connector Housing, Rcpt, 2Pos, 2.5Mm, Product Range:Fci Minitek Board-In Series, Gender:Receptacle, No. Of Positions:2Positions, Pitch Spacing:2.5Mm, For Use With:Amphenol Minitek Board-In Series 10156619 Contacts Rohs Compliant: Yes |Amphenol Communications Solutions 10156618-0200LF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 950 |
|
$0.0060 | Buy Now |
|
|
Onlinecomponents.com | RoHS: Compliant |
2000 Partner Stock |
|
$0.0177 / $0.0425 | Buy Now |
|
|
Master Electronics | RoHS: Compliant |
2000 Partner Stock |
|
$0.0177 / $0.0425 | Buy Now |
Part Details for 10156618-0200LF
10156618-0200LF CAD Models
10156618-0200LF Part Data Attributes
|
|
10156618-0200LF
Amphenol Communications Solutions
Buy Now
Datasheet
|
Compare Parts:
10156618-0200LF
Amphenol Communications Solutions
Minitek® Board-In, Wire to Board Connectors, Vertical housing 2.50mm 2 positions
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | AMPHENOL COMMUNICATIONS SOLUTIONS | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Amphenol Communications Solutions | |
| Additional Feature | SOLDERED DIRECTLY TO THE BOARD | |
| Body Breadth | 0.15 inch | |
| Body Depth | 0.264 inch | |
| Body Length | 0.256 inch | |
| Connector Type | BOARD CONNECTOR | |
| Contact Gender | FEMALE | |
| Contact Pattern | RECTANGULAR | |
| Contact Resistance | 10 mΩ | |
| Contact Style | SQ PIN-SKT | |
| Dielectric Withstanding Voltage | 800VAC V | |
| Filter Feature | NO | |
| Insulation Resistance | 1000000000 Ω | |
| Insulator Color | NATURAL | |
| Insulator Material | POLYAMIDE66 | |
| Mating Contact Pitch | 0.098 inch | |
| Mixed Contacts | NO | |
| Mounting Option 1 | LOCKING | |
| Mounting Type | CABLE | |
| Number Of Connectors | ONE | |
| Number of Rows Loaded | 1 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Option | GENERAL PURPOSE | |
| Rated Current (Signal) | 3 A | |
| Reference Standard | UL | |
| Termination Type | CRIMP | |
| Total Number of Contacts | 2 | |
| UL Flammability Code | 94V-0 | |
| Wire Size-Max | 26 AWG | |
| Wire Size-Min | 22 AWG |
