Part Details for 10134160-2230LF by Amphenol Communications Solutions
Results Overview of 10134160-2230LF by Amphenol Communications Solutions
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Automotive
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| 10134160-2230LF | Amphenol Communications Solutions | Minitek® Pwr 3.0, Receptacle Terminal, Tin Plating, Chrysocal, AWG(#26-30), Preplatd. | |
| 10134160-2220LF | Amphenol Communications Solutions | Minitek® Pwr 3.0, Receptacle Terminal, TinPlating, Chrysocal, AWG(#20-24), Preplatd. | |
| 10134160-2310LF | Amphenol Communications Solutions | Minitek® Pwr 3.0 HCC, Receptacle Terminal, Tin Plating, Cupronickel, AWG(#16-20), Preplatd. |
Price & Stock for 10134160-2230LF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
45AC1668
|
Newark | Contact, Socket, 30-26Awg, Crimp, Product Range:Fci Minitek Pwr 3.0 10134160 Series, Contact Gender:Socket, Contact Termination Type:Crimp, Wire Size Awg Max:26Awg, Contact Plating:Tin Plated Contacts, Wire Size Awg Min:30Awg Rohs Compliant: Yes |Amphenol Communications Solutions 10134160-2230LF RoHS: Compliant Min Qty: 48000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0110 | Buy Now |
|
|
Onlinecomponents.com | Minitek® Pwr 3.0, Receptacle Terminal, Tin Plating, Chrysocal, AWG(#26-30), Preplatd. RoHS: Compliant | 0 |
|
$0.0076 / $0.0094 | Buy Now |
Part Details for 10134160-2230LF

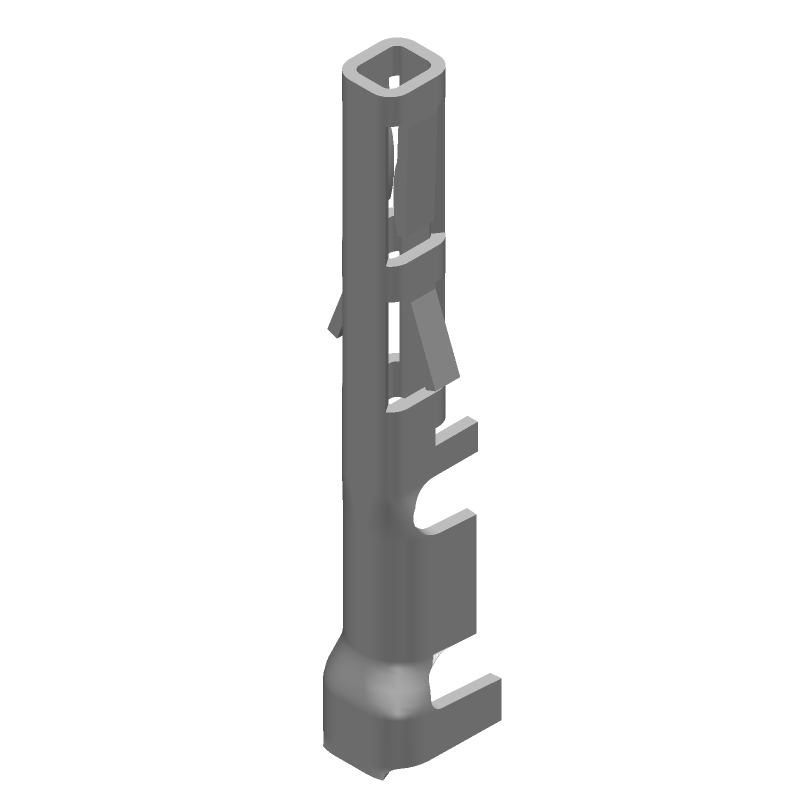

10134160-2230LF CAD Models
10134160-2230LF Part Data Attributes
|
|
10134160-2230LF
Amphenol Communications Solutions
Buy Now
Datasheet
|
Compare Parts:
10134160-2230LF
Amphenol Communications Solutions
Minitek® Pwr 3.0, Receptacle Terminal, Tin Plating, Chrysocal, AWG(#26-30), Preplatd.
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | AMPHENOL COMMUNICATIONS SOLUTIONS | |
| Pin Count | 1 | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Amphenol Communications Solutions | |
| Additional Feature | CONTACT FINISH: TIN | |
| Assembly Item Name | CONTACT | |
| Cable Entry-Max | 0.05 inch | |
| Connector Support Type | CONNECTOR ACCESSORY | |
| Contact Gender | FEMALE | |
| Contact Resistance | 20 mΩ | |
| Contact Style | SQUARE PIN | |
| DIN Conformance | NO | |
| Design Use | POWER | |
| Finish Thickness | 79 | |
| IEC Conformance | NO | |
| MIL Conformance | NO | |
| Material | COPPER ALLOY | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Rated Current | 9 A | |
| Rated Voltage(AC) | 848.4 V | |
| Terminal Length | 0.142 inch | |
| Terminal Type | CRIMP | |
| Wire Size-Max | 26 AWG | |
| Wire Size-Min | 30 AWG |
