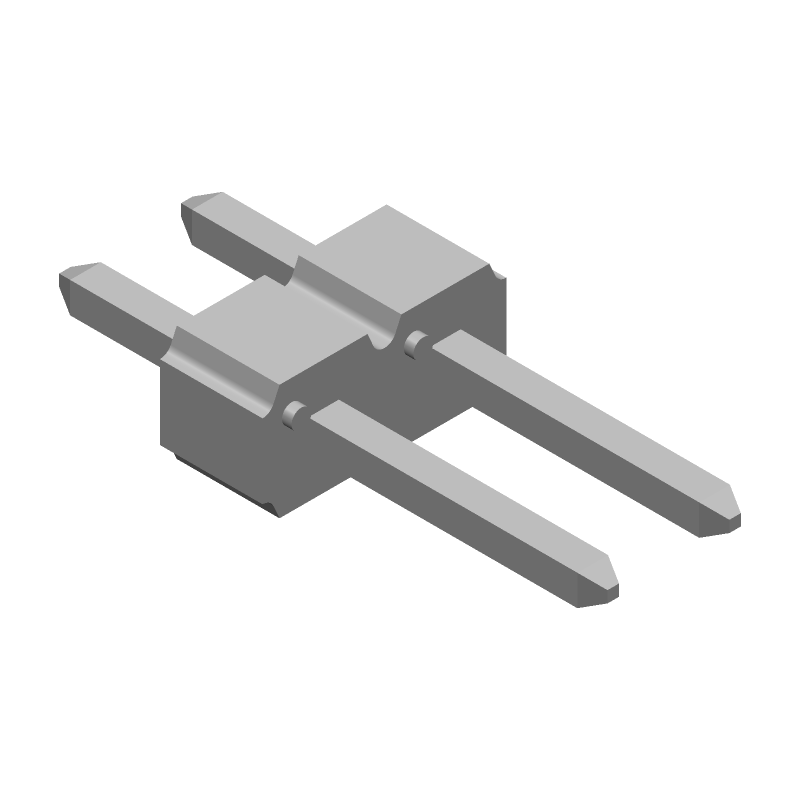

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 10129378-902001BLF by Amphenol Communications Solutions
Results Overview of 10129378-902001BLF by Amphenol Communications Solutions
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Space Technology
Internet of Things (IoT)
Environmental Monitoring
Smart Cities
Transportation and Logistics
Agriculture Technology
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Medical Imaging
Automotive
Consumer Electronics
Security and Surveillance
Aerospace and Defense
Healthcare
Robotics and Drones
10129378-902001BLF Information
10129378-902001BLF by Amphenol Communications Solutions is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for 10129378-902001BLF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
45AC1094
|
Newark | Btb Conn, Header, 2Pos, 1Row, 2.54Mm, Connector Systems:Board-To-Board, Pitch Spacing:2.54Mm, No. Of Rows:1Rows, No. Of Contacts:2Contacts, Contact Termination Type:Through Hole Straight, Product Range:Fci Econostik Series Rohs Compliant: Yes |Amphenol Communications Solutions 10129378-902001BLF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 1515 |
|
$0.0280 / $0.0570 | Buy Now |
|
|
Future Electronics | 2 Position Vertical 2.54mm Header RoHS: Compliant pbFree: Yes Min Qty: 1 Package Multiple: 1 Lead time: 19 Weeks Container: Bag | 19650Bag |
|
$0.0183 / $0.0208 | Buy Now |
|
|
Onlinecomponents.com | RoHS: Compliant |
16800 Partner Stock |
|
$0.0184 / $0.0273 | Buy Now |
|
|
Future Electronics | 2 Position Vertical 2.54mm Header Min Qty: 1 Package Multiple: 1 |
19650 null |
|
$0.0183 / $0.0208 | Buy Now |
|
DISTI #
10129378-902001BLF
|
TME | connector 10129378-902001BLF Min Qty: 1 | 2620 |
|
$0.0284 / $0.0877 | Buy Now |
|
DISTI #
10129378-902001BLF
|
IBS Electronics | PIN HEADER BOARD-TO-BOARD 2.54 MM 1 ROWS 2 CONTACTS THROUGH HOLE STRAIGHT FCI ECONOSTIK Min Qty: 6098 Package Multiple: 1 | 16800 |
|
$0.0205 | Buy Now |
|
|
Master Electronics | RoHS: Compliant |
16800 Partner Stock |
|
$0.0184 / $0.0273 | Buy Now |
Part Details for 10129378-902001BLF
10129378-902001BLF CAD Models
10129378-902001BLF Part Data Attributes
|
|
10129378-902001BLF
Amphenol Communications Solutions
Buy Now
Datasheet
|
Compare Parts:
10129378-902001BLF
Amphenol Communications Solutions
EconoStik™ 2.54mm, Board to Board Connector, Unshrouded Verticl Header, Through Hole, Single Row, 2 Positions, 2.54 mm (0.100in) Pitch.
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | AMPHENOL COMMUNICATIONS SOLUTIONS | |
| Pin Count | 2 | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Amphenol Communications Solutions | |
| Body Breadth | 0.095 inch | |
| Body Depth | 0.1 inch | |
| Body Length | 0.2 inch | |
| Connector Type | BOARD STACKING CONNECTOR | |
| Contact Finish Mating | NOT SPECIFIED | |
| Contact Gender | MALE | |
| Contact Material | NOT SPECIFIED | |
| Contact Pattern | RECTANGULAR | |
| Contact Resistance | 20 mΩ | |
| Contact Style | SQ PIN-SKT | |
| Dielectric Withstanding Voltage | 2121VAC V | |
| Durability | 50 Cycles | |
| Filter Feature | NO | |
| Insertion Force-Max | 2.5 N | |
| Insulation Resistance | 5000000000 Ω | |
| Insulator Color | BLACK | |
| Insulator Material | POLYETHYLENE | |
| Mating Contact Pitch | 0.1 inch | |
| Mixed Contacts | NO | |
| Mounting Option 1 | LOCKING | |
| Mounting Style | STRAIGHT | |
| Mounting Type | BOARD | |
| Number Of Connectors | ONE | |
| Number Of PCB Rows | 1 | |
| Number of Rows Loaded | 1 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -55 °C | |
| Option | GENERAL PURPOSE | |
| PCB Contact Pattern | RECTANGULAR | |
| Plating Thickness | FLASH inch | |
| Rated Current (Signal) | 3 A | |
| Reference Standard | UL | |
| Terminal Length | 0.12 inch | |
| Terminal Pitch | 2.54 mm | |
| Termination Type | SOLDER | |
| Total Number of Contacts | 2 | |
| UL Flammability Code | 94V-0 | |
| Withdrawl Force-Min | 0.3 N |
