100DP7T6B11M1QE Information
100DP7T6B11M1QE by E-Switch Inc is a Toggle Switch.
Toggle Switches are under the broader part category of Switches.
Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.
Price & Stock for 100DP7T6B11M1QE
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
46AK7392
|
Newark | 100Dp7T6B11M1Qe Rohs Compliant: Yes |E-Switch 100DP7T6B11M1QE RoHS: Compliant Min Qty: 540 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$4.6400 / $5.3600 | Buy Now |
|
DISTI #
100DP7T6B11M1QE-ND
|
DigiKey | SWITCH TOGGLE SP3T 5A 120V Min Qty: 540 Lead time: 12 Weeks Container: Bulk | Temporarily Out of Stock |
|
$3.6671 | Buy Now |
|
DISTI #
612-100DP7T6B11M1QE
|
Mouser Electronics | Toggle Switches TOGGLE, 5A 120VAC/28VDC, DPDT On-On-(On), Panel Mount Solder RoHS: Compliant | 110 |
|
$3.5900 / $5.5300 | Buy Now |
Part Details for 100DP7T6B11M1QE
100DP7T6B11M1QE CAD Models
100DP7T6B11M1QE Part Data Attributes
|
|
100DP7T6B11M1QE
E-Switch Inc
Buy Now
Datasheet
|
Compare Parts:
100DP7T6B11M1QE
E-Switch Inc

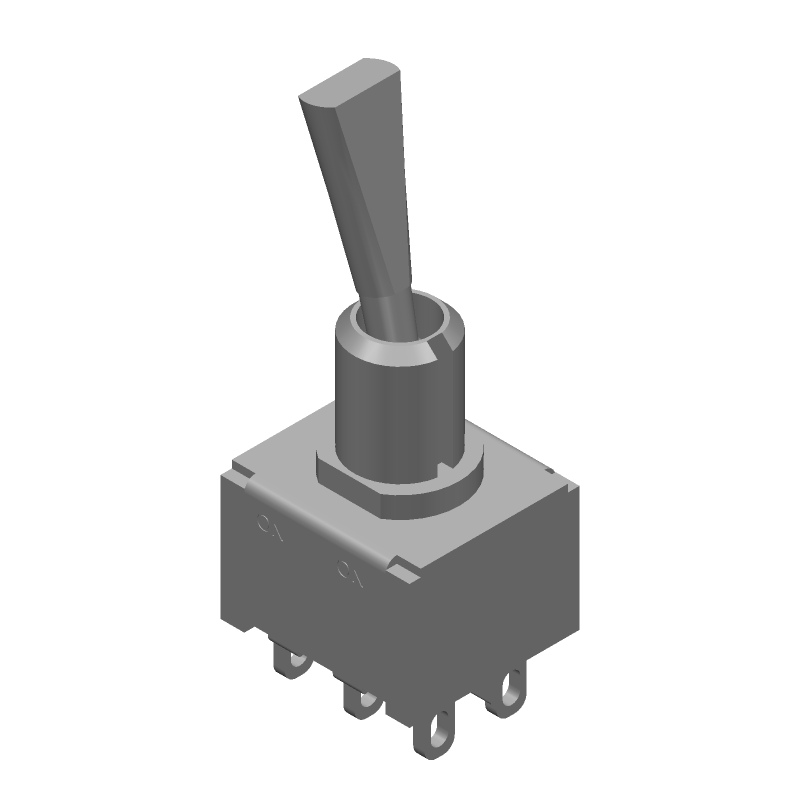

Toggle Switch, DPDT, On-on-(on), 5A, 28VDC, Solder Lug Terminal, Toggle Bat Actuator, Panel Mount
|
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | E-SWITCH INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.50.70.00 | |
| Samacsys Manufacturer | E-Switch | |
| Actuator Finish | CHROME | |
| Actuator Length | 0.484 inch | |
| Actuator Material | BRASS | |
| Actuator Type | FLAT TYPE | |
| Body Breadth | 11.43 mm | |
| Body Height | 8.89 mm | |
| Body Length or Diameter | 12.7 mm | |
| Bushing Diameter | 0.25 inch | |
| Bushing Length | 0.297 inch | |
| Bushing Type | 1/4-40 | |
| Center Contact Material | COPPER ALLOY | |
| Center Contact Plating | SILVER | |
| Contact (AC) Max Rating R Load | 2A@250VAC | |
| Contact Current(AC)-Max | 2 A | |
| Contact Current(DC)-Max | 5 A | |
| Contact (DC) Max Rating R Load | 5A@28VDC | |
| Contact Function | ON-ON-(ON) | |
| Contact Resistance | 0.01 mΩ | |
| Contact Voltage(AC)-Max | 250 V | |
| Contact Voltage(DC)-Max | 28 V | |
| Dielectric Withstand Volts | 1000VRMS V | |
| Electrical Life | 40000 Cycle(s) | |
| Housing Material | STAINLESS STEEL | |
| Illumination | NON-ILLUMINATED | |
| Insulation Resistance | 1000000000 Ω | |
| Insulator Material | DIALLYL PHTHALATE | |
| JESD-609 Code | e4 | |
| Mounting Feature | PANEL MOUNT | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -30 °C | |
| Sealing | EPOXY | |
| Surface Mount | NO | |
| Switch Action | LATCHED | |
| Switch Function | DPDT | |
| Switch Type | TOGGLE SWITCH | |
| Terminal Finish | Silver (Ag) | |
| Terminal Material | COPPER ALLOY | |
| Termination Type | SOLDER |
