100AWSP3T1B4VS21RE Information
100AWSP3T1B4VS21RE by E-Switch Inc is a Toggle Switch.
Toggle Switches are under the broader part category of Switches.
Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.
Price & Stock for 100AWSP3T1B4VS21RE
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
15N9806
|
Newark | Ea Rohs Compliant: Yes |E-Switch 100AWSP3T1B4VS21RE RoHS: Compliant Min Qty: 200 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$4.7500 / $5.5400 | Buy Now |
|
DISTI #
100AWSP3T1B4VS21RE-ND
|
DigiKey | SWITCH TOGGLE SPDT 0.4VA 20V Min Qty: 200 Lead time: 12 Weeks Container: Bulk | Temporarily Out of Stock |
|
$4.0313 | Buy Now |
|
DISTI #
612-100AWSP3T1B4VS21
|
Mouser Electronics | Toggle Switches 0.4VA @ 20V (AC/DC) On-Off-On PC Mnt RoHS: Compliant | 0 |
|
$4.0300 / $5.9300 | Order Now |
|
DISTI #
74708616
|
RS | Toggle Switch, SPDT, ON-OFF-ON, 0.4VA, 20VAC/VDC, TH, PC Pin, IP67, 100A Series Min Qty: 200 Package Multiple: 1 Lead time: 12 Weeks, 0 Days Container: Bulk | 0 |
|
$3.3800 | RFQ |
Part Details for 100AWSP3T1B4VS21RE

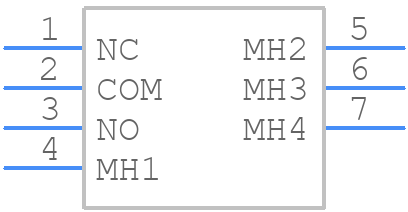

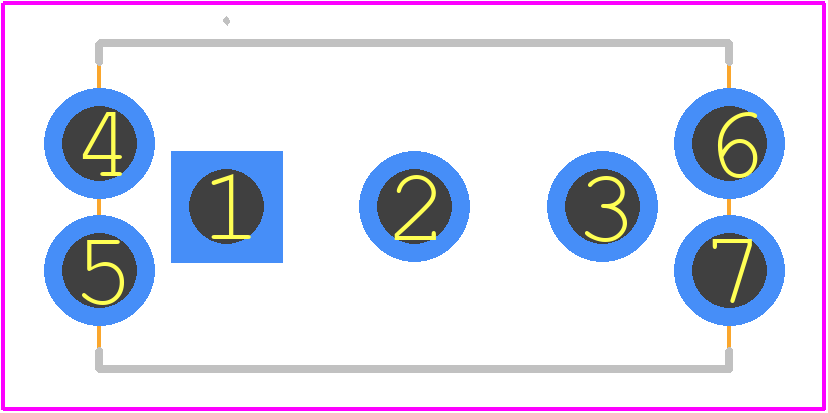

100AWSP3T1B4VS21RE CAD Models
100AWSP3T1B4VS21RE Part Data Attributes
|
|
100AWSP3T1B4VS21RE
E-Switch Inc
Buy Now
Datasheet
|
Compare Parts:
100AWSP3T1B4VS21RE
E-Switch Inc
Toggle Switch, SPDT, On-off-on, 7 PCB Hole Cnt, Solder Terminal, Toggle Bat Actuator, Through Hole-straight
|
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | E-SWITCH INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.50.70.00 | |
| Samacsys Manufacturer | E-Switch | |
| Actuator Angle | 25 deg | |
| Actuator Finish | CHROME | |
| Actuator Length | 0.4 inch | |
| Actuator Material | BRASS | |
| Actuator Type | TOGGLE BAT | |
| Body Breadth | 8.128 mm | |
| Body Height | 11.684 mm | |
| Body Length or Diameter | 15.748 mm | |
| Bushing Diameter | 0.498 inch | |
| Bushing Length | 0.243 inch | |
| Bushing Type | UNTHREADED | |
| Center Contact Material | COPPER ALLOY | |
| Center Contact Plating | GOLD OVER NICKEL | |
| Contact Current(AC)-Max | 0.02 A | |
| Contact Current(DC)-Max | 0.02 A | |
| Contact (DC) Max Power Rating R Load | 0.4VA@20VDC | |
| Contact Function | ON-OFF-ON | |
| Contact Resistance | 0.01 mΩ | |
| Contact Voltage(AC)-Max | 20 V | |
| Contact Voltage(DC)-Max | 20 V | |
| Dielectric Withstand Volts | 1000VRMS V | |
| Electrical Life | 50000 Cycle(s) | |
| End Contact Material | COPPER ALLOY | |
| End Contact Plating | GOLD OVER NICKEL | |
| Illumination | NON-ILLUMINATED | |
| Insulation Resistance | 1000000000 Ω | |
| Insulator Material | POLYBUTYLENE TEREPHTHALATE | |
| Mounting Feature | THROUGH HOLE-STRAIGHT | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -30 °C | |
| PCB Hole Count | 7 | |
| Sealing | EPOXY | |
| Surface Mount | NO | |
| Switch Action | LATCHED | |
| Switch Function | SPDT | |
| Switch Type | TOGGLE SWITCH | |
| Terminal Length | 0.185 inch | |
| Terminal Material | COPPER ALLOY | |
| Termination Type | SOLDER |
