100AWSP1T1B4M2RE Information
100AWSP1T1B4M2RE by E-Switch Inc is a Toggle Switch.
Toggle Switches are under the broader part category of Switches.
Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.
Price & Stock for 100AWSP1T1B4M2RE
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
15N9776
|
Newark | Toggle Switch, Spdt, 20V, Th, Switch Operation:On-On, Contact Configuration:Spdt, Illumination:Non Illuminated, Product Range:100A Series, Switch Mounting:Through Hole, Contact Current Max:-, Contact Voltage Ac Nom:20V Rohs Compliant: Yes |E-Switch 100AWSP1T1B4M2RE RoHS: Compliant Min Qty: 540 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$2.7300 / $2.8300 | Buy Now |
|
DISTI #
EG2432-ND
|
DigiKey | SWITCH TOGGLE SPDT 0.4VA 20V Min Qty: 1 Lead time: 12 Weeks Container: Bulk |
1052 In Stock |
|
$2.6782 / $4.1900 | Buy Now |
|
DISTI #
612-100A-A1422
|
Mouser Electronics | Toggle Switches SPDT ON-ON PC MNT RoHS: Compliant | 186 |
|
$2.5100 / $3.9600 | Buy Now |
|
DISTI #
74708578
|
RS | Toggle Switch, SPDT, ON-ON, 0.4VA, 20VAC/VDC, TH, PC Pin, IP67, 100A Series Min Qty: 540 Package Multiple: 1 Lead time: 12 Weeks, 0 Days Container: Bulk | 0 |
|
$7.0700 / $7.7800 | RFQ |
|
DISTI #
69688534
|
Verical | Switch Toggle ON None ON SPDT Round Lever PC Pins 20VAC 20VDC 0.4VA PC Mount Min Qty: 15 Package Multiple: 5 Date Code: 2330 | Americas - 600 |
|
$2.9765 / $4.6706 | Buy Now |
|
DISTI #
100AWSP1T1B4M2RE
|
TME | Switch: toggle, Pos: 2, SPDT, ON-ON, 0.02A/20VAC, 0.02A/20VDC, 100A Min Qty: 540 | 0 |
|
$3.2100 | RFQ |
|
|
Master Electronics | Toggle Switch - SPDT - On-None-On - 20V - 0.4VA - Gold Plated Contacts - PC Mount - 1/4" Dia x .243" No Thread Bushing - No Hardware RoHS: Compliant |
600 In Stock |
|
$2.3300 / $3.9670 | Buy Now |
Part Details for 100AWSP1T1B4M2RE

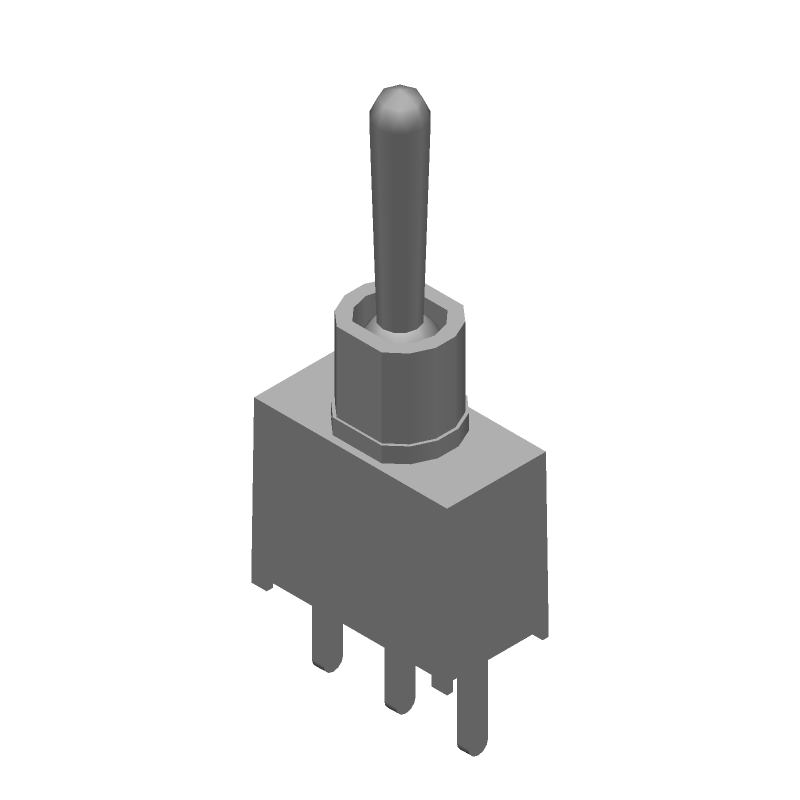

100AWSP1T1B4M2RE CAD Models
100AWSP1T1B4M2RE Part Data Attributes
|
|
100AWSP1T1B4M2RE
E-Switch Inc
Buy Now
Datasheet
|
Compare Parts:
100AWSP1T1B4M2RE
E-Switch Inc
Toggle Switch, SPDT, Latched, 0.02A, 20VDC, Solder Terminal, Through Hole-straight
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | E-SWITCH INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.50.90.65 | |
| Samacsys Manufacturer | E-Switch | |
| Actuator Length | 0.4 inch | |
| Actuator Type | TOGGLE | |
| Body Breadth | 6.6 mm | |
| Body Height | 10.4 mm | |
| Body Length or Diameter | 12.7 mm | |
| Bushing Length | 0.243 inch | |
| Contact (AC) Max Rating R Load | .02A@20VAC | |
| Contact Current(AC)-Max | 0.02 A | |
| Contact Current(DC)-Max | 0.02 A | |
| Contact (DC) Max Rating R Load | .02A@20VDC | |
| Contact Voltage(AC)-Max | 20 V | |
| Contact Voltage(DC)-Max | 20 V | |
| Electrical Life | 30000 Cycle(s) | |
| Illumination | NON-ILLUMINATED | |
| Mounting Feature | THROUGH HOLE-STRAIGHT | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -30 °C | |
| PCB Hole Count | 3 | |
| Surface Mount | NO | |
| Switch Action | LATCHED | |
| Switch Function | SPDT | |
| Switch Type | TOGGLE SWITCH | |
| Termination Type | SOLDER |
