1003P4T1B1M1QEH Information
1003P4T1B1M1QEH by E-Switch Inc is a Toggle Switch.
Toggle Switches are under the broader part category of Switches.
Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.
Price & Stock for 1003P4T1B1M1QEH
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
16N0259
|
Newark | Ea Rohs Compliant: Yes |E-Switch 1003P4T1B1M1QEH RoHS: Compliant Min Qty: 960 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$7.5100 / $8.7700 | Buy Now |
|
DISTI #
EG2427-ND
|
DigiKey | SWITCH TOGGLE 3PDT 5A 120V Min Qty: 1 Lead time: 13 Weeks Container: Bulk |
58 In Stock |
|
$6.7565 / $8.6600 | Buy Now |
|
DISTI #
612-1003P4T1B1M1QEH
|
Mouser Electronics | Toggle Switches 5A 120VAC/28VDC (On)-Off-(On) Sldr RoHS: Compliant | 0 |
|
$6.0200 / $6.0800 | Order Now |
|
DISTI #
74708455
|
RS | Toggle Switch, 3PDT, (ON)-OFF-(ON), 5A, 120VAC/28VDC, Panel Mt., Solder Min Qty: 960 Package Multiple: 1 Lead time: 12 Weeks, 0 Days Container: Bulk | 0 |
|
$11.5000 | RFQ |
Part Details for 1003P4T1B1M1QEH

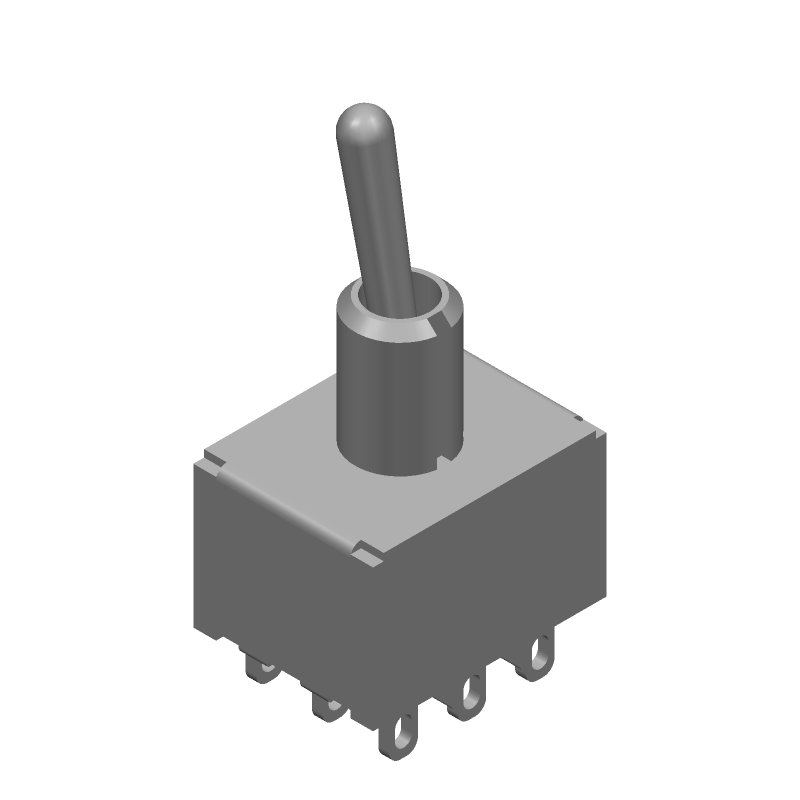

1003P4T1B1M1QEH CAD Models
1003P4T1B1M1QEH Part Data Attributes
|
|
1003P4T1B1M1QEH
E-Switch Inc
Buy Now
Datasheet
|
Compare Parts:
1003P4T1B1M1QEH
E-Switch Inc
Toggle Switch, 3PDT, (on)-off-(on), Momentary, 5A, 28VDC, Quick Connect Terminal, Toggle Actuator, Panel Mount
|
| Pbfree Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | E-SWITCH INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.50.90.40 | |
| Samacsys Manufacturer | E-Switch | |
| Actuator Angle | 25 deg | |
| Actuator Finish | CHROME | |
| Actuator Length | 0.41 inch | |
| Actuator Material | BRASS | |
| Actuator Type | STANDARD TOGGLE | |
| Body Breadth | 12.7 mm | |
| Body Height | 10.541 mm | |
| Body Length or Diameter | 16.51 mm | |
| Bushing Diameter | 0.25 inch | |
| Bushing Length | 0.35 inch | |
| Bushing Type | 1/4-40 | |
| Center Contact Material | COPPER ALLOY | |
| Center Contact Plating | SILVER | |
| Contact (AC) Max Rating R Load | 2A@250VAC | |
| Contact Current(AC)-Max | 2 A | |
| Contact Current(DC)-Max | 5 A | |
| Contact (DC) Max Rating R Load | 5A@28VDC | |
| Contact Function | (ON)-OFF-(ON) | |
| Contact Resistance | 0.01 mΩ | |
| Contact Voltage(AC)-Max | 250 V | |
| Contact Voltage(DC)-Max | 28 V | |
| Dielectric Withstand Volts | 1000VRMS V | |
| Electrical Life | 40000 Cycle(s) | |
| End Contact Material | COPPER ALLOY | |
| End Contact Plating | SILVER | |
| Housing Material | STAINLESS STEEL | |
| Illumination | NON-ILLUMINATED | |
| Insulation Resistance | 1000000000 Ω | |
| Insulator Material | DIALLYL PHTHALATE | |
| JESD-609 Code | e4 | |
| Mounting Feature | PANEL MOUNT | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -30 °C | |
| Sealing | EPOXY | |
| Surface Mount | NO | |
| Switch Action | MOMENTARY | |
| Switch Function | 3PDT | |
| Switch Type | TOGGLE SWITCH | |
| Terminal Finish | Silver (Ag) | |
| Terminal Length | 0.156 inch | |
| Terminal Material | COPPER ALLOY | |
| Termination Type | QUICK CONNECT |
