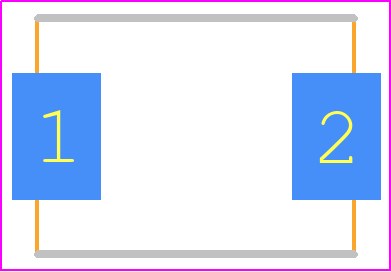

Footprint
-

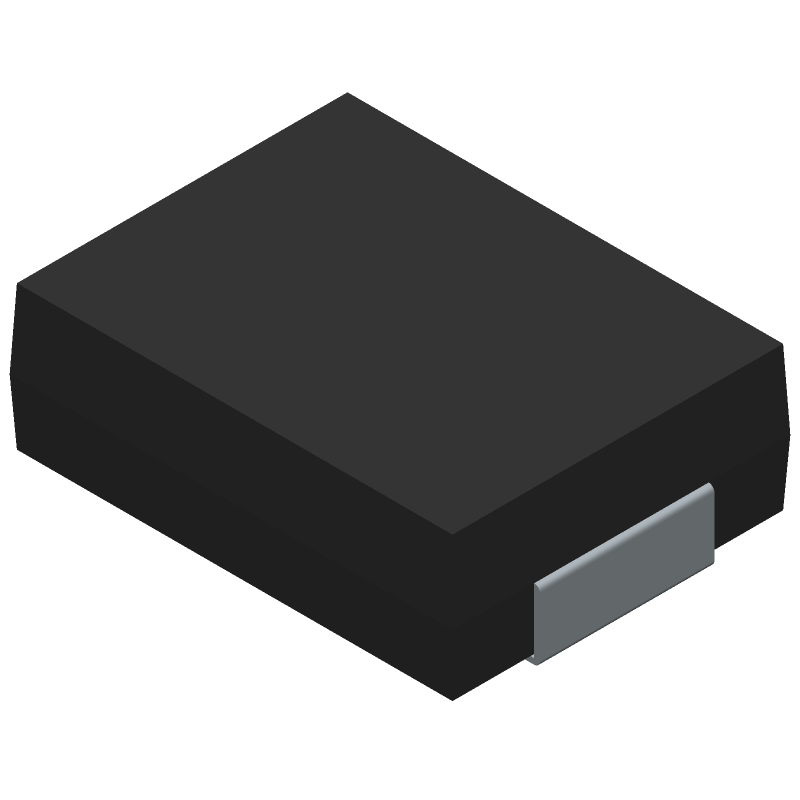

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 1.5SMC6.8CA-Q by Bourns Inc
Results Overview of 1.5SMC6.8CA-Q by Bourns Inc
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
1.5SMC6.8CA-Q Information
1.5SMC6.8CA-Q by Bourns Inc is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for 1.5SMC6.8CA-Q
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
14AJ4586
|
Newark | Dio Tvs Vrwm 5.8V 1500W Bidir Smc Aec-Q/Tape & Reel - 13" Reel |Bourns 1.5SMC6.8CA-Q RoHS: Not Compliant Min Qty: 12000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.2830 / $0.3410 | Buy Now |
|
DISTI #
118-1.5SMC6.8CA-QTR-ND
|
DigiKey | TVS DIODE 5.8VWM 10.5V DO214AB Min Qty: 12000 Lead time: 16 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$0.2675 | Buy Now |
|
DISTI #
1.5SMC6.8CA-Q
|
Avnet Americas | Diode TVS Single Bi-Directional 5.8V 1.5kW 2-Pin DO-214AB T/R - Tape and Reel (Alt: 1.5SMC6.8CA-Q) RoHS: Compliant Min Qty: 12000 Package Multiple: 3000 Lead time: 16 Weeks, 0 Days Container: Reel | 0 |
|
$0.2603 / $0.2864 | Buy Now |
|
DISTI #
652-1.5SMC6.8CA-Q
|
Mouser Electronics | ESD Protection Diodes / TVS Diodes 1.5SMC - CA 10.5V RoHS: Compliant | 18383 |
|
$0.2670 / $1.2700 | Buy Now |
|
DISTI #
72164028
|
RS | A Bi-directional, 6.8V Vbr 1500W, SMC pkg, AECQ compliant, TVS Diode Min Qty: 12000 Package Multiple: 1 Lead time: 18 Weeks, 0 Days Container: Bulk | 0 |
|
$0.6900 / $0.8100 | RFQ |
|
|
Onlinecomponents.com | RoHS: Compliant | 0 |
|
$0.2656 / $0.7280 | Buy Now |
|
|
Bristol Electronics | 2408 |
|
RFQ | ||
|
|
Master Electronics | RoHS: Compliant | 0 |
|
$0.2656 / $0.7280 | Buy Now |
Part Details for 1.5SMC6.8CA-Q
1.5SMC6.8CA-Q CAD Models
1.5SMC6.8CA-Q Part Data Attributes
|
|
1.5SMC6.8CA-Q
Bourns Inc
Buy Now
Datasheet
|
Compare Parts:
1.5SMC6.8CA-Q
Bourns Inc
Trans Voltage Suppressor Diode, 1500W, 5.8V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AB, SMC, 2 PIN
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | BOURNS INC | |
| Package Description | SMC, 2 PIN | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 16 Weeks | |
| Samacsys Manufacturer | Bourns | |
| Additional Feature | PRSM-MIN | |
| Breakdown Voltage-Max | 7.14 V | |
| Breakdown Voltage-Min | 6.45 V | |
| Breakdown Voltage-Nom | 6.795 V | |
| Clamping Voltage-Max | 13.7 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JEDEC-95 Code | DO-214AB | |
| JESD-30 Code | R-PDSO-C2 | |
| Non-rep Peak Rev Power Dis-Max | 1500 W | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Polarity | BIDIRECTIONAL | |
| Reference Standard | AEC-Q101 | |
| Rep Pk Reverse Voltage-Max | 5.8 V | |
| Reverse Current-Max | 1000 µA | |
| Reverse Test Voltage | 5.8 V | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Form | C BEND | |
| Terminal Position | DUAL |
