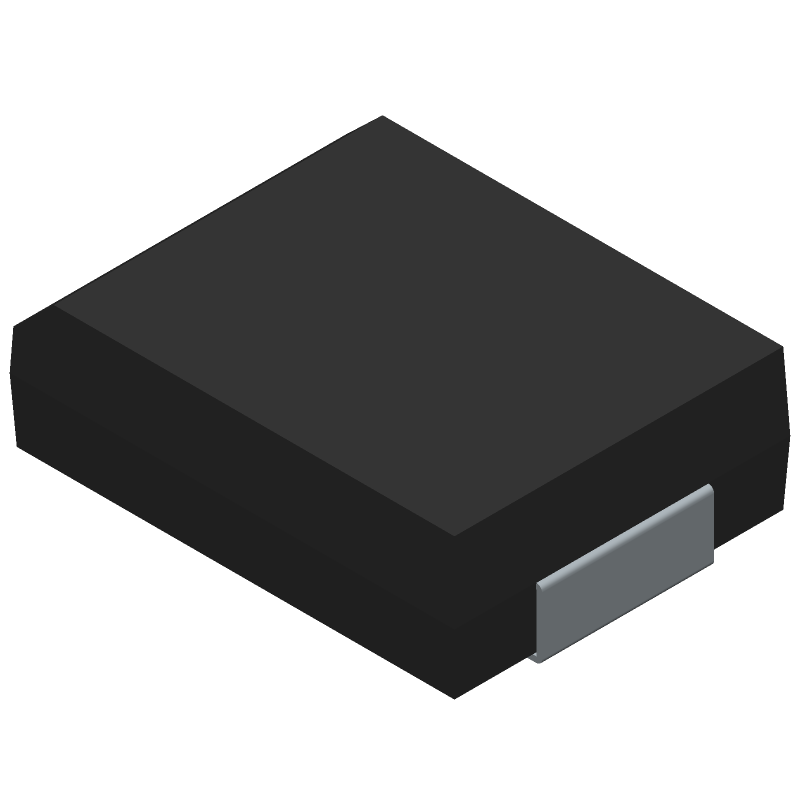

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 1.5SMC6.8AT3 by onsemi
Results Overview of 1.5SMC6.8AT3 by onsemi
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
1.5SMC6.8AT3 Information
1.5SMC6.8AT3 by onsemi is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for 1.5SMC6.8AT3
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
1.5SMC6.8AT3
|
Avnet Americas | - Tape and Reel (Alt: 1.5SMC6.8AT3) RoHS: Not Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 111 Weeks, 0 Days Container: Reel | 0 |
|
RFQ | |
|
|
Bristol Electronics | Min Qty: 11 | 3329 |
|
$0.1268 / $0.4875 | Buy Now |
|
|
Bristol Electronics | 831 |
|
RFQ | ||
|
|
Quest Components | TRANS VOLTAGE SUPPRESSOR DIODE, 1500W, 5.8V V(RWM), UNIDIRECTIONAL, 1 ELEMENT, SILICON | 2663 |
|
$0.1690 / $0.6500 | Buy Now |
|
|
Chip-Germany GmbH | RoHS: Not Compliant | 565 |
|
RFQ |
Part Details for 1.5SMC6.8AT3
1.5SMC6.8AT3 CAD Models
1.5SMC6.8AT3 Part Data Attributes
|
|
1.5SMC6.8AT3
onsemi
Buy Now
Datasheet
|
Compare Parts:
1.5SMC6.8AT3
onsemi
1500W, UNIDIRECTIONAL, SILICON, TVS DIODE, PLASTIC, CASE 403-03, SMC, 2 PIN
|
| Rohs Code | No | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | ONSEMI | |
| Package Description | PLASTIC, CASE 403-03, SMC, 2 PIN | |
| Pin Count | 2 | |
| Manufacturer Package Code | CASE 403-03 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Factory Lead Time | 111 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Additional Feature | HIGH RELIABILITY | |
| Breakdown Voltage-Max | 7.14 V | |
| Breakdown Voltage-Min | 6.45 V | |
| Breakdown Voltage-Nom | 6.8 V | |
| Clamping Voltage-Max | 10.5 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JESD-30 Code | R-PDSO-C2 | |
| JESD-609 Code | e0 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Peak Rev Power Dis-Max | 1500 W | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -65 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 235 | |
| Polarity | UNIDIRECTIONAL | |
| Power Dissipation-Max | 0.75 W | |
| Qualification Status | Not Qualified | |
| Reference Standard | UL RECOGNIZED | |
| Rep Pk Reverse Voltage-Max | 5.8 V | |
| Surface Mount | YES | |
| Technology | ZENER | |
| Terminal Finish | TIN LEAD | |
| Terminal Form | C BEND | |
| Terminal Position | DUAL |
Alternate Parts for 1.5SMC6.8AT3
This table gives cross-reference parts and alternative options found for 1.5SMC6.8AT3. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 1.5SMC6.8AT3, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 1.5SMC8.2A-E3/57T | Vishay Intertechnologies | $0.2495 | Trans Voltage Suppressor Diode, 1500W, 7.02V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, | 1.5SMC6.8AT3 vs 1.5SMC8.2A-E3/57T |
| SMCJ13A-E3/9AT | Vishay Intertechnologies | $0.3620 | Trans Voltage Suppressor Diode, 1500W, 13V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, DO-214AB, SMC, 2 PIN | 1.5SMC6.8AT3 vs SMCJ13A-E3/9AT |
| SMCJ13A-E3/57T | Vishay Intertechnologies | $0.3979 | Trans Voltage Suppressor Diode, 1500W, 13V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, DO-214AB, SMC, 2 PIN | 1.5SMC6.8AT3 vs SMCJ13A-E3/57T |
| SMCJ13A-13-F | Diodes Incorporated | $0.5728 | Trans Voltage Suppressor Diode, 1500W, 13V V(RWM), Unidirectional, 1 Element, Silicon, GREEN, PLASTIC, SMC, 2 PIN | 1.5SMC6.8AT3 vs SMCJ13A-13-F |
| LC33 | Microchip Technology Inc | $44.7083 | Trans Voltage Suppressor Diode, 1500W, 33V V(RWM), Unidirectional, 1 Element, Silicon, DO-202AA | 1.5SMC6.8AT3 vs LC33 |
| 1N5610 | Microchip Technology Inc | $71.3405 | Trans Voltage Suppressor Diode, 1500W, 30.5V V(RWM), Unidirectional, 1 Element, Silicon | 1.5SMC6.8AT3 vs 1N5610 |
| 1.5SMC8.2 | Taiwan Semiconductor | Check for Price | Trans Voltage Suppressor Diode, 1500W, 6.63V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, GREEN, PLASTIC, SMC, 2 PIN | 1.5SMC6.8AT3 vs 1.5SMC8.2 |
| 1.5SMC8.2A | Taiwan Semiconductor | Check for Price | Trans Voltage Suppressor Diode, 1500W, 7.02V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, GREEN, PLASTIC, SMC, 2 PIN | 1.5SMC6.8AT3 vs 1.5SMC8.2A |
| SMCG13AHE3/57T | Vishay Intertechnologies | Check for Price | Trans Voltage Suppressor Diode, 1500W, 13V V(RWM), Unidirectional, 1 Element, Silicon, DO-215AB, SMCG, 2 PIN | 1.5SMC6.8AT3 vs SMCG13AHE3/57T |
| SMCG13A-M3/9AT | Vishay Intertechnologies | Check for Price | Trans Voltage Suppressor Diode, 1500W, 13V V(RWM), Unidirectional, 1 Element, Silicon, DO-215AB, | 1.5SMC6.8AT3 vs SMCG13A-M3/9AT |
1.5SMC6.8AT3 Frequently Asked Questions (FAQ)
-
The recommended footprint and land pattern for the 1.5SMC6.8AT3 can be found in the onsemi application note AND8321/D, which provides guidelines for surface mount assembly of onsemi's SMC package devices.
-
To ensure optimal reliability, handle the 1.5SMC6.8AT3 by the body, avoid touching the leads, and store the devices in an anti-static environment. Follow proper electrostatic discharge (ESD) precautions when handling the devices.
-
The maximum allowable voltage stress on the 1.5SMC6.8AT3 is 10% above the rated voltage, but not to exceed 150% of the rated voltage for a maximum of 30 seconds.
-
Yes, the 1.5SMC6.8AT3 is rated for operation up to 150°C, but the device's performance and reliability may degrade at high temperatures. Consult the datasheet and onsemi's application notes for guidance on high-temperature operation.
-
The power dissipation and thermal resistance of the 1.5SMC6.8AT3 can be determined using the device's thermal characteristics, such as thermal resistance (RθJA) and junction-to-ambient thermal resistance (RθJC). Consult the datasheet and onsemi's application notes for guidance.
