Diodes / Transient Suppressors / 1.5SMC36CA-E3/57T
Datasheets
1.5SMC36CA-E3/57T by:
Vishay Intertechnologies

Trans Voltage Suppressor Diode, 1500W, 30.8V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AB,

Part Details for 1.5SMC36CA-E3/57T by Vishay Intertechnologies

Results Overview of 1.5SMC36CA-E3/57T by Vishay Intertechnologies

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

1.5SMC36CA-E3/57T Information

1.5SMC36CA-E3/57T by Vishay Intertechnologies is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Price & Stock for 1.5SMC36CA-E3/57T

Part # Distributor Description Stock Price Buy
DISTI # 78K1874
Newark Transient Suppressor Diode, single, bidirectional,30.8V V(Rwm),do-214Ab/Smc Rohs Compliant: Yes |Vishay 1.5SMC36CA-E3/57T RoHS: Compliant Min Qty: 1700 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 1,000 $0.3920
  • 2,000 $0.3590
  • 4,000 $0.3260
  • 6,000 $0.3150
  • 10,000 $0.3090
$0.3090 / $0.3920 Buy Now
DISTI # 1.5SMC36CA-E3/57T
Avnet Americas 1.5KW,36V 5%,BIDIR,SMC TVS - Tape and Reel (Alt: 1.5SMC36CA-E3/57T) RoHS: Compliant Min Qty: 1700 Package Multiple: 850 Lead time: 11 Weeks, 0 Days Container: Reel 0
  • 1,700 $0.2284
  • 3,400 $0.2241
  • 5,100 $0.2214
  • 8,500 $0.2173
  • 17,000 $0.2109
$0.2109 / $0.2284 Buy Now
DISTI # 625-1.5SMC36CA-E3
Mouser Electronics ESD Protection Diodes / TVS Diodes 1500W 36V Bidirect RoHS: Compliant 1700
  • 1 $0.7400
  • 10 $0.5390
  • 100 $0.3620
  • 500 $0.3000
  • 850 $0.2500
  • 4,250 $0.2050
  • 9,350 $0.1870
$0.1870 / $0.7400 Buy Now
DISTI # 1.5SMC36CA-E3/57T
TTI ESD Protection Diodes / TVS Diodes 1500W 36V Bidirect pbFree: Pb-Free Min Qty: 1700 Package Multiple: 850 Container: Reel Americas - 0
  • 1,700 $0.3550
  • 2,550 $0.3480
  • 4,250 $0.3410
  • 8,500 $0.3340
  • 12,750 $0.3280
  • 21,250 $0.3220
$0.3220 / $0.3550 Buy Now
DISTI # 1.5SMC36CA-E3/57T
TME Diode: TVS, 1.5kW, 34.2÷37.8V, bidirectional, SMC, reel,tape Min Qty: 1 0
  • 1 $0.4100
$0.4100 RFQ
DISTI # 1.5SMC36CA-E3/57T
EBV Elektronik 15KW36V 5BIDIRSMC TVS (Alt: 1.5SMC36CA-E3/57T) RoHS: Compliant Min Qty: 850 Package Multiple: 850 Lead time: 12 Weeks, 0 Days EBV - 7650
Buy Now
New Advantage Corporation 1.5KW,36V 5%,BIDIR,SMC TVS RoHS: Compliant Min Qty: 1 Package Multiple: 850 12750
  • 850 $0.2200
  • 4,250 $0.2000
$0.2000 / $0.2200 Buy Now

Part Details for 1.5SMC36CA-E3/57T

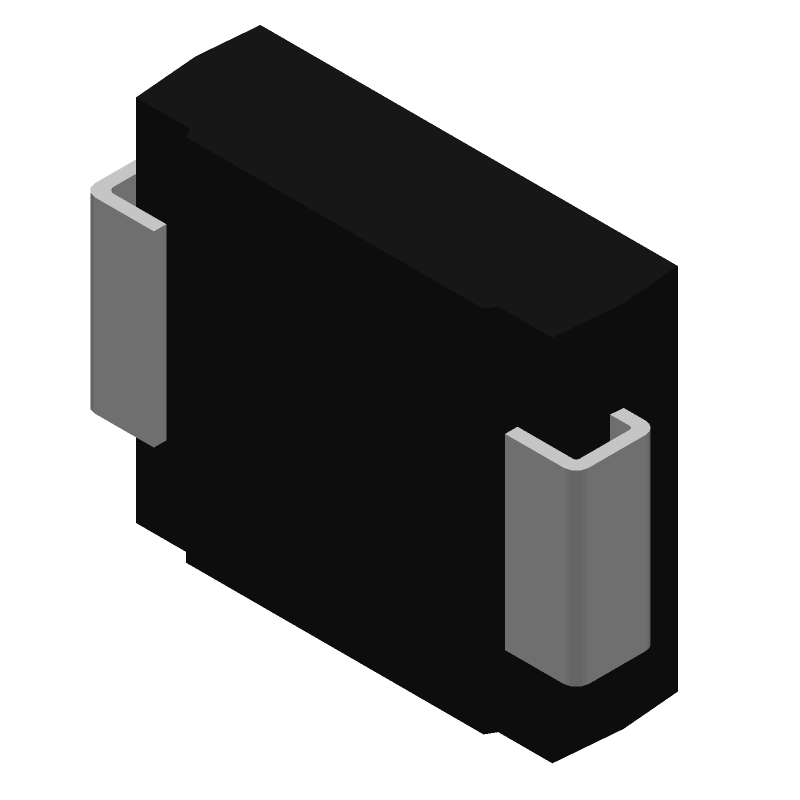

1.5SMC36CA-E3/57T CAD Models

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

1.5SMC36CA-E3/57T Part Data Attributes

Parametric Data
1.5SMC36CA-E3/57T Vishay Intertechnologies
Buy Now Datasheet
Compare Parts:
1.5SMC36CA-E3/57T Vishay Intertechnologies Trans Voltage Suppressor Diode, 1500W, 30.8V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AB,
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer VISHAY INTERTECHNOLOGY INC
Reach Compliance Code not_compliant
Factory Lead Time 11 Weeks
Samacsys Description ESD Suppressors / TVS Diodes 1500W 36V Bidirect
Samacsys Manufacturer Vishay
Samacsys Modified On 2024-03-14 07:51:58
Total Weight 210
Category CO2 Kg 8.54
CO2 1793.3999999999999
Compliance Temperature Grade Military: -65C to +150C
EU RoHS Version RoHS 2 (2015/863/EU)
EU RoHS Exemptions 7(a), 7(c)-I
Candidate List Date 2025-01-21
SVHC Over MCV 7439-92-1
CAS Accounted for Wt 97
CA Prop 65 Presence YES
CA Prop 65 CAS Numbers 1333-86-4, 1309-64-4, 7439-92-1
EFUP 50
Conflict Mineral Status DRC Conflict Free
Conflict Mineral Status Source CMRT V6.31
Additional Feature EXCELLENT CLAMPING CAPABILITY
Breakdown Voltage-Max 37.8 V
Breakdown Voltage-Min 34.2 V
Breakdown Voltage-Nom 36 V
Clamping Voltage-Max 49.9 V
Configuration SINGLE
Diode Element Material SILICON
Diode Type TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 Code DO-214AB
JESD-30 Code R-PDSO-C2
JESD-609 Code e3
Moisture Sensitivity Level 1
Non-rep Peak Rev Power Dis-Max 1500 W
Number of Elements 1
Number of Terminals 2
Operating Temperature-Max 150 °C
Operating Temperature-Min -65 °C
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Polarity BIDIRECTIONAL
Power Dissipation-Max 6.5 W
Qualification Status Not Qualified
Rep Pk Reverse Voltage-Max 30.8 V
Surface Mount YES
Technology AVALANCHE
Terminal Finish Matte Tin (Sn)
Terminal Form C BEND
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30

Alternate Parts for 1.5SMC36CA-E3/57T

This table gives cross-reference parts and alternative options found for 1.5SMC36CA-E3/57T. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 1.5SMC36CA-E3/57T, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
1.5SMC36CA Bourns Inc $0.2093 Trans Voltage Suppressor Diode, 1500W, 30.8V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AB, SMC, 2 PIN 1.5SMC36CA-E3/57T vs 1.5SMC36CA
1.5SMC36CAHE3_A/H Vishay Intertechnologies $0.3920 Trans Voltage Suppressor Diode, 30.8V V(RWM), Bidirectional 1.5SMC36CA-E3/57T vs 1.5SMC36CAHE3_A/H
1.5SMC36CA-M3/57T Vishay Intertechnologies $0.3958 Trans Voltage Suppressor Diode, 1500W, 30.8V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AB, 1.5SMC36CA-E3/57T vs 1.5SMC36CA-M3/57T
1.5SMC36CAHV7G Taiwan Semiconductor Check for Price Trans Voltage Suppressor Diode, 1.5SMC36CA-E3/57T vs 1.5SMC36CAHV7G
1.5SMC36CA-M3/9AT Vishay Intertechnologies Check for Price Trans Voltage Suppressor Diode, 1500W, 30.8V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AB, 1.5SMC36CA-E3/57T vs 1.5SMC36CA-M3/9AT
1.5SMC36CAHR7G Taiwan Semiconductor Check for Price Trans Voltage Suppressor Diode, 1500W, 30.8V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AB, SMC, 2 PIN 1.5SMC36CA-E3/57T vs 1.5SMC36CAHR7G
1.5SMC36CA-E3/9AT Vishay Intertechnologies Check for Price Trans Voltage Suppressor Diode, 1500W, 30.8V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AB, 1.5SMC36CA-E3/57T vs 1.5SMC36CA-E3/9AT
1.5SMC36CAHM3_A/I Vishay Intertechnologies Check for Price Trans Voltage Suppressor Diode, 1.5SMC36CA-E3/57T vs 1.5SMC36CAHM3_A/I
Part Number Manufacturer Composite Price Description Compare
1.5SMC36CA Taiwan Semiconductor $0.2113 Trans Voltage Suppressor Diode, 1500W, 30.8V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AB, GREEN, PLASTIC, SMC, 2 PIN 1.5SMC36CA-E3/57T vs 1.5SMC36CA
SM15T36CA STMicroelectronics $0.3917 1500 W, 30.8 V TVS in SMC 1.5SMC36CA-E3/57T vs SM15T36CA
1.5SMC30CA-E3/57T Vishay Intertechnologies $0.4049 Trans Voltage Suppressor Diode, 1500W, 25.6V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AB, 1.5SMC36CA-E3/57T vs 1.5SMC30CA-E3/57T
SM15T22CA STMicroelectronics $0.5773 1500 W, 18.8 V TVS in SMC 1.5SMC36CA-E3/57T vs SM15T22CA
1.5SMC36CAHM6G Taiwan Semiconductor Check for Price Trans Voltage Suppressor Diode, 1500W, 30.8V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AB, SMC, 2 PIN 1.5SMC36CA-E3/57T vs 1.5SMC36CAHM6G
1.5SMC36CAHE3_A/I Vishay Intertechnologies Check for Price Trans Voltage Suppressor Diode, 30.8V V(RWM), Bidirectional 1.5SMC36CA-E3/57T vs 1.5SMC36CAHE3_A/I
SMCG30CA-M3/9AT Vishay Intertechnologies Check for Price Trans Voltage Suppressor Diode, 1500W, 30V V(RWM), Bidirectional, 1 Element, Silicon, DO-215AB, 1.5SMC36CA-E3/57T vs SMCG30CA-M3/9AT
SMCJ30CA-M3/57T Vishay Intertechnologies Check for Price Trans Voltage Suppressor Diode, 1500W, 30V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AB, DO-214AB, SMC, 2 PIN 1.5SMC36CA-E3/57T vs SMCJ30CA-M3/57T
SMCG30CAHE3/9AT Vishay Intertechnologies Check for Price Trans Voltage Suppressor Diode, 1500W, 30V V(RWM), Bidirectional, 1 Element, Silicon, DO-215AB, ROHS COMPLIANT, PLASTIC, SMCG, 2 PIN 1.5SMC36CA-E3/57T vs SMCG30CAHE3/9AT
1.5SMC30CA-M3/9AT Vishay Intertechnologies Check for Price Trans Voltage Suppressor Diode, 1500W, 25.6V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AB, 1.5SMC36CA-E3/57T vs 1.5SMC30CA-M3/9AT

1.5SMC36CA-E3/57T Frequently Asked Questions (FAQ)

  • The recommended soldering temperature for the 1.5SMC36CA-E3/57T is between 250°C to 260°C for a maximum of 10 seconds.

  • Yes, the 1.5SMC36CA-E3/57T is RoHS compliant, meaning it meets the European Union's Restriction of Hazardous Substances directive.

  • The typical lead time for the 1.5SMC36CA-E3/57T can vary depending on the supplier and the quantity ordered, but it is typically around 8-12 weeks.

  • Yes, the 1.5SMC36CA-E3/57T is designed for high-reliability applications and meets the requirements of various industry standards, including AEC-Q101 and MIL-PRF-19500.

  • The 1.5SMC36CA-E3/57T has a moisture sensitivity level of 3, which means it can withstand exposure to moisture for up to 168 hours without damage.
