Part Symbol
-
Footprint
-

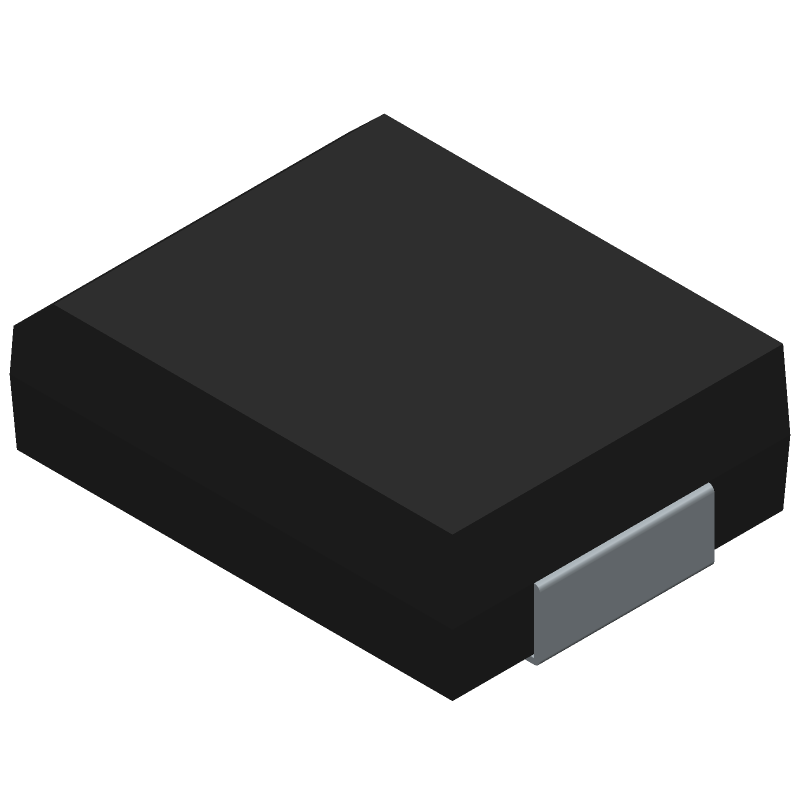

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 1.5SMC300A by Littelfuse Inc
Results Overview of 1.5SMC300A by Littelfuse Inc
- Distributor Offerings: (12 listings)
- Number of FFF Equivalents: (9 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
1.5SMC300A Information
1.5SMC300A by Littelfuse Inc is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for 1.5SMC300A
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
31T8693
|
Newark | Diode, Tvs, 300V, 1500W, Uni, Smc, Product Range:1.5Smc Series, Tvs Polarity:Unidirectional, Reverse Standoff Voltage:256V, Clamping Voltage Max:414V, Diode Case Style:Do-214Ab (Smc), No. Of Pins:2Pins, Minimum Breakdown Voltage:285Vrohs Compliant: Yes |Littelfuse 1.5SMC300A RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 2965 |
|
$0.3390 / $0.8530 | Buy Now |
|
DISTI #
1.5SMC300ACT-ND
|
DigiKey | TVS DIODE 256VWM 414VC DO214AB Min Qty: 1 Lead time: 13 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
3564 In Stock |
|
$0.2835 / $0.8700 | Buy Now |
|
DISTI #
576-1.5SMC300A
|
Mouser Electronics | ESD Protection Diodes / TVS Diodes 1.5kW 300V 5% Uni-Directional RoHS: Compliant | 8902 |
|
$0.2830 / $0.8700 | Buy Now |
|
DISTI #
75572206
|
RS | TVS 1.5KW 300V 5%UNI DO-214AB TR13 RoHS Min Qty: 3000 Package Multiple: 1 Lead time: 8 Weeks, 0 Days Container: Bulk | 0 |
|
$0.5400 / $0.5900 | RFQ |
|
|
Bristol Electronics | 2794 |
|
RFQ | ||
|
|
Bristol Electronics | Min Qty: 11 | 56 |
|
$0.3169 / $0.4875 | Buy Now |
|
|
Quest Components | TRANS VOLTAGE SUPPRESSOR DIODE, 1500W, 256V V(RWM), UNIDIRECTIONAL, 1 ELEMENT, SILICON, DO-214AB | 44 |
|
$0.3250 / $0.6500 | Buy Now |
|
DISTI #
1.5SMC300A
|
TTI | ESD Protection Diodes / TVS Diodes 1.5kW 300V 5% Uni-Directional RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Container: Reel | Americas - 0 |
|
$0.2800 | Buy Now |
|
DISTI #
1.5SMC300A-LF
|
TME | Diode: TVS, 1.5kW, 300V, 3.7A, unidirectional, ±5%, SMC, reel,tape Min Qty: 1 | 0 |
|
$0.3880 / $0.9170 | RFQ |
|
DISTI #
1.5SMC300A
|
IBS Electronics | DIO TVS VBD 300V 1.5KW UNIDIR SMCTR13 TAPE &, REEL - 13 REEL | BOURNS 1.5SMC300A Min Qty: 3000 Package Multiple: 1 | 6000 |
|
$0.3900 / $0.4030 | Buy Now |
Part Details for 1.5SMC300A
1.5SMC300A CAD Models
1.5SMC300A Part Data Attributes
|
|
1.5SMC300A
Littelfuse Inc
Buy Now
Datasheet
|
Compare Parts:
1.5SMC300A
Littelfuse Inc
Trans Voltage Suppressor Diode, 1500W, 256V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, HALOGEN FREE AND ROHS COMPLIANT, PLASTIC, SMC, 2 PIN
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | LITTELFUSE INC | |
| Part Package Code | DO-214AB | |
| Pin Count | 2 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Samacsys Manufacturer | LITTELFUSE | |
| Additional Feature | EXCELLENT CLAMPING CAPABILITY | |
| Breakdown Voltage-Max | 315 V | |
| Breakdown Voltage-Min | 285 V | |
| Breakdown Voltage-Nom | 300 V | |
| Clamping Voltage-Max | 414 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| Forward Voltage-Max (VF) | 3.5 V | |
| JEDEC-95 Code | DO-214AB | |
| JESD-30 Code | R-PDSO-C2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Peak Rev Power Dis-Max | 1500 W | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -65 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | UNIDIRECTIONAL | |
| Power Dissipation-Max | 6.5 W | |
| Qualification Status | Not Qualified | |
| Reference Standard | IEC-61000-4-2, 4-4; UL RECOGNIZED | |
| Rep Pk Reverse Voltage-Max | 256 V | |
| Reverse Current-Max | 1 µA | |
| Reverse Test Voltage | 256 V | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | C BEND | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 40 |
Alternate Parts for 1.5SMC300A
This table gives cross-reference parts and alternative options found for 1.5SMC300A. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 1.5SMC300A, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 1.5SMC300AT | Littelfuse Inc | Check for Price | Trans Voltage Suppressor Diode, 1500W, 256V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, ROHS COMPLIANT, PLASTIC, SMC, 2 PIN | 1.5SMC300A vs 1.5SMC300AT |
| 1.5SMC300AHM3_A/H | Vishay Intertechnologies | Check for Price | Trans Voltage Suppressor Diode, | 1.5SMC300A vs 1.5SMC300AHM3_A/H |
| 1.5SMC300A | Pulse Electronics Corporation | Check for Price | Trans Voltage Suppressor Diode, 1500W, 256V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, SMC, 2 PIN | 1.5SMC300A vs 1.5SMC300A |
| 1.5SMCJ250A-T3 | Won-Top Electronics Co Ltd | Check for Price | Trans Voltage Suppressor Diode, 1500W, 250V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, PLASTIC, SMC, 2 PIN | 1.5SMC300A vs 1.5SMCJ250A-T3 |
| 1.5SMC300A | MERITEK Electronics Corporation | Check for Price | Trans Voltage Suppressor Diode, 1500W, 256V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, SMC, 2 PIN | 1.5SMC300A vs 1.5SMC300A |
| 1.5SMC300A-M3/9AT | Vishay Intertechnologies | Check for Price | Trans Voltage Suppressor Diode, 1500W, 256V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, | 1.5SMC300A vs 1.5SMC300A-M3/9AT |
| SMCJ250A-T500 | ProTek Devices | Check for Price | Trans Voltage Suppressor Diode, 1500W, 250V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, | 1.5SMC300A vs SMCJ250A-T500 |
| SMCJ250A-T13 | ProTek Devices | Check for Price | Trans Voltage Suppressor Diode, 1500W, 250V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, | 1.5SMC300A vs SMCJ250A-T13 |
| SMCJ250A | BrightKing Inc | Check for Price | Trans Voltage Suppressor Diode, 1500W, 250V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, SMC, 2 PIN | 1.5SMC300A vs SMCJ250A |
1.5SMC300A Frequently Asked Questions (FAQ)
-
The recommended footprint and land pattern for the 1.5SMC300A can be found in the Littelfuse application note AN9313, which provides guidelines for surface mount assembly of TVS diodes.
-
To ensure proper soldering and avoid defects, follow the recommended soldering profile and guidelines outlined in the Littelfuse application note AN9313, and use a solder with a melting point below 260°C.
-
The 1.5SMC300A has an operating temperature range of -65°C to 150°C, but it's recommended to derate the device's power handling capability at higher temperatures to ensure reliability.
-
While the 1.5SMC300A is primarily designed for surge protection, it can be used in high-frequency applications up to 1 GHz, but the user should consider the device's parasitic capacitance and inductance, and ensure the device is properly decoupled.
-
To select the correct TVS diode, consider the following factors: working voltage, peak pulse current, clamping voltage, and response time. Consult the Littelfuse TVS diode selection guide or contact a Littelfuse application engineer for assistance.
