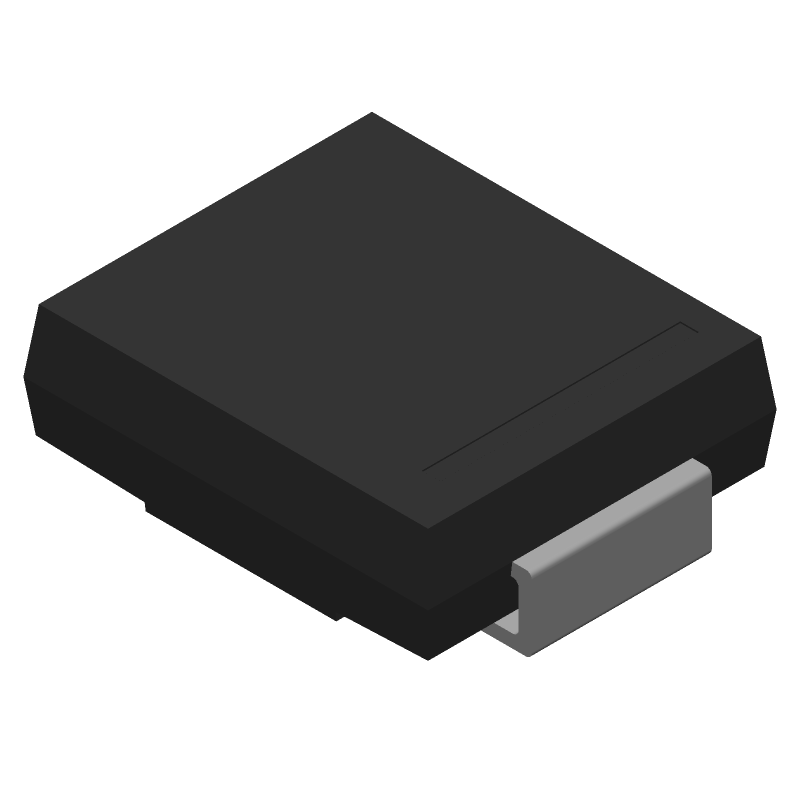

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 1.5SMC24CA by Littelfuse Inc
Results Overview of 1.5SMC24CA by Littelfuse Inc
- Distributor Offerings: (15 listings)
- Number of FFF Equivalents: (8 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Automotive
1.5SMC24CA Information
1.5SMC24CA by Littelfuse Inc is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for 1.5SMC24CA
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
33AC1083
|
Newark | Tvs Diode, 1.5Kw, 20.5V, Bidir, Do-214Ab, Product Range:1.5Smc Series, Tvs Polarity:Bidirectional, Reverse Stand-Off Voltage Vrwm:20.5V, Clamping Voltage Vc Max:33.2V, Diode Case Style:Do-214Ab, No. Of Pins:2Pins, Breakdown Voltage Rohs Compliant: Yes |Littelfuse 1.5SMC24CA RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 76 |
|
$0.3070 / $0.4020 | Buy Now |
|
DISTI #
71J2690
|
Newark | Transient Suppressor Diode, single, unidirectional,20.5V V(Rwm),do-214Ab/Smc Rohs Compliant: Yes |Littelfuse 1.5SMC24CA RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.2220 / $0.2960 | Buy Now |
|
DISTI #
1.5SMC24CACT-ND
|
DigiKey | TVS DIODE 20.5VWM 33.2V DO214AB Min Qty: 1 Lead time: 13 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
23456 In Stock |
|
$0.2100 / $0.4700 | Buy Now |
|
DISTI #
576-1.5SMC24CA
|
Mouser Electronics | ESD Protection Diodes / TVS Diodes 1.5kW 24V 5% Bi-Directional RoHS: Compliant | 3549 |
|
$0.2180 / $1.0700 | Buy Now |
|
DISTI #
V72:2272_06416146
|
Arrow Electronics | Diode TVS Single Bi-Dir 20.5V 1.5KW 2-Pin SMC T/R Min Qty: 1 Package Multiple: 1 Lead time: 13 Weeks Date Code: 2115 Container: Cut Strips | Americas - 3411 |
|
$0.2114 / $0.3412 | Buy Now |
|
DISTI #
V79:2366_23149868
|
Arrow Electronics | Diode TVS Single Bi-Dir 20.5V 1.5KW 2-Pin SMC T/R Min Qty: 1 Package Multiple: 1 Date Code: 1910 | Americas - 1745 |
|
$0.1751 | Buy Now |
|
DISTI #
75572202
|
RS | TVS 1.5KW 24V 5%BI DO-214AB TR13 RoHS Min Qty: 3000 Package Multiple: 1 Lead time: 8 Weeks, 0 Days Container: Bulk | 0 |
|
$0.3980 / $0.4330 | RFQ |
|
DISTI #
57375738
|
Verical | Diode TVS Single Bi-Dir 20.5V 1.5KW 2-Pin SMC T/R Min Qty: 28 Package Multiple: 1 Date Code: 2115 | Americas - 3411 |
|
$0.2114 / $0.3028 | Buy Now |
|
DISTI #
73492269
|
Verical | Diode TVS Single Bi-Dir 20.5V 1.5KW 2-Pin SMC T/R Min Qty: 159 Package Multiple: 1 Date Code: 2301 | Americas - 3000 |
|
$0.4482 / $0.5160 | Buy Now |
|
DISTI #
50681523
|
Verical | Diode TVS Single Bi-Dir 20.5V 1.5KW 2-Pin SMC T/R Min Qty: 33 Package Multiple: 1 Date Code: 1910 | Americas - 1745 |
|
$0.1751 | Buy Now |
Part Details for 1.5SMC24CA
1.5SMC24CA CAD Models
1.5SMC24CA Part Data Attributes
|
|
1.5SMC24CA
Littelfuse Inc
Buy Now
Datasheet
|
Compare Parts:
1.5SMC24CA
Littelfuse Inc
Trans Voltage Suppressor Diode, 1500W, 20.5V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AB, HALOGEN FREE AND ROHS COMPLIANT, PLASTIC, SMC, 2 PIN
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | LITTELFUSE INC | |
| Part Package Code | DO-214AB | |
| Pin Count | 2 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Samacsys Manufacturer | LITTELFUSE | |
| Additional Feature | EXCELLENT CLAMPING CAPABILITY | |
| Breakdown Voltage-Max | 25.2 V | |
| Breakdown Voltage-Min | 22.8 V | |
| Breakdown Voltage-Nom | 24 V | |
| Clamping Voltage-Max | 33.2 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JEDEC-95 Code | DO-214AB | |
| JESD-30 Code | R-PDSO-C2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Peak Rev Power Dis-Max | 1500 W | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -65 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | BIDIRECTIONAL | |
| Power Dissipation-Max | 6.5 W | |
| Qualification Status | Not Qualified | |
| Reference Standard | IEC-61000-4-2, 4-4; UL RECOGNIZED | |
| Rep Pk Reverse Voltage-Max | 20.5 V | |
| Reverse Current-Max | 1 µA | |
| Reverse Test Voltage | 20.5 V | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | C BEND | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 40 |
Alternate Parts for 1.5SMC24CA
This table gives cross-reference parts and alternative options found for 1.5SMC24CA. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 1.5SMC24CA, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 1.5SMC24CA | Vishay Intertechnologies | Check for Price | Trans Voltage Suppressor Diode, 20.5V V(RWM), Bidirectional, | 1.5SMC24CA vs 1.5SMC24CA |
| 1.5SMCJ20CA | Hitano Enterprise Corp | Check for Price | Trans Voltage Suppressor Diode, 1500W, 20V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AB, SMC, 2 PIN | 1.5SMC24CA vs 1.5SMCJ20CA |
| 1.5SMC24CA-E3/9AT | Vishay Semiconductors | Check for Price | DIODE 1500 W, BIDIRECTIONAL, SILICON, TVS DIODE, DO-214AB, ROHS COMPLIANT, PLASTIC, SMC, 2 PIN, Transient Suppressor | 1.5SMC24CA vs 1.5SMC24CA-E3/9AT |
| 1.5SMC24CA-E3/9AT | Vishay Intertechnologies | Check for Price | Trans Voltage Suppressor Diode, 1500W, 20.5V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AB, | 1.5SMC24CA vs 1.5SMC24CA-E3/9AT |
| 1.5SMC24CA | Pulse Electronics Corporation | Check for Price | Trans Voltage Suppressor Diode, 1500W, 20.5V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AB, SMC, 2 PIN | 1.5SMC24CA vs 1.5SMC24CA |
| 1.5SMC24CAHE3/9AT | Vishay Semiconductors | Check for Price | DIODE 1500 W, BIDIRECTIONAL, SILICON, TVS DIODE, DO-214AB, ROHS COMPLIANT, PLASTIC, SMC, 2 PIN, Transient Suppressor | 1.5SMC24CA vs 1.5SMC24CAHE3/9AT |
| 1.5SMC24CA-E3 | Vishay Semiconductors | Check for Price | DIODE 1500 W, BIDIRECTIONAL, SILICON, TVS DIODE, DO-214AB, PLASTIC, SMC, 2 PIN, Transient Suppressor | 1.5SMC24CA vs 1.5SMC24CA-E3 |
| 1.5SMC24CAHM3/I | Vishay Intertechnologies | Check for Price | Trans Voltage Suppressor Diode, | 1.5SMC24CA vs 1.5SMC24CAHM3/I |
1.5SMC24CA Frequently Asked Questions (FAQ)
-
The recommended footprint and land pattern for the 1.5SMC24CA can be found in the Littelfuse application note AN9313, which provides guidelines for surface mount assembly of TVS diodes.
-
To ensure proper soldering, follow the recommended soldering profile and guidelines outlined in the Littelfuse application note AN9313. Additionally, use a solder with a melting point below 260°C to prevent thermal damage to the device.
-
The 1.5SMC24CA has an operating temperature range of -65°C to 150°C, but it's recommended to derate the device's power handling capability at higher temperatures to ensure reliable operation.
-
While the 1.5SMC24CA is primarily designed for transient voltage suppression, it can be used in high-frequency applications up to 1 GHz. However, the device's performance may degrade at higher frequencies due to parasitic inductance and capacitance.
-
To select the correct TVS diode, consider factors such as the maximum voltage, current, and power handling requirements of your application. Consult the Littelfuse TVS diode selection guide or consult with a Littelfuse application engineer for guidance.
