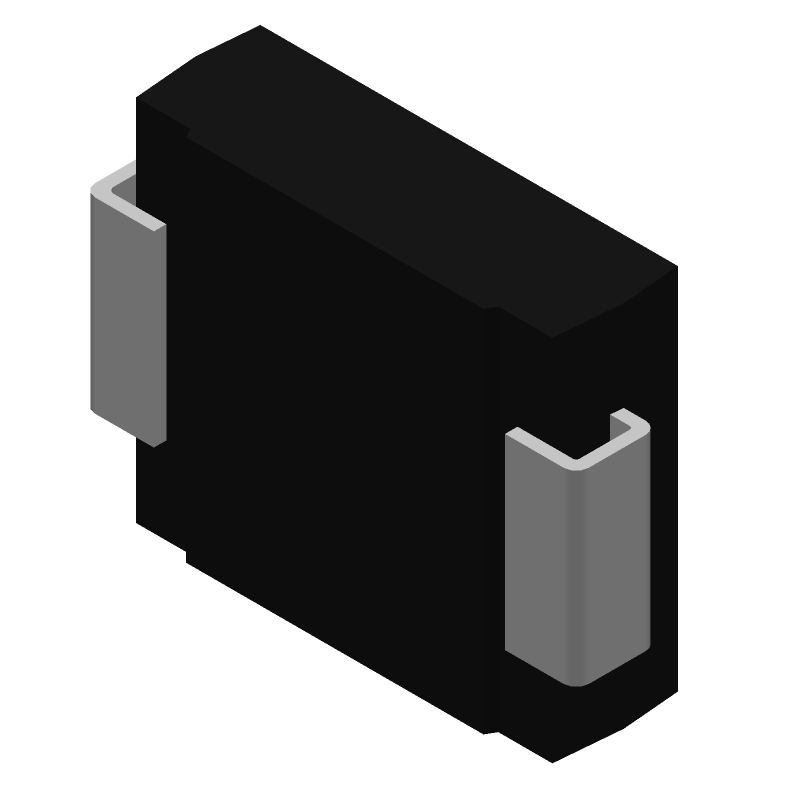

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 1.5SMC16A-E3/57T by Vishay Intertechnologies
Results Overview of 1.5SMC16A-E3/57T by Vishay Intertechnologies
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (10 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
1.5SMC16A-E3/57T Information
1.5SMC16A-E3/57T by Vishay Intertechnologies is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for 1.5SMC16A-E3/57T
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
57AJ0884
|
Newark | Tvs Diode, Unidir, 13.6V, Do-214Ab-2 Rohs Compliant: Yes |Vishay 1.5SMC16A-E3/57T RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 626 |
|
$0.3300 / $0.5630 | Buy Now |
|
DISTI #
78K1745
|
Newark | Transient Suppressor Diode, single, unidirectional,13.6V V(Rwm),do-214Ab/Smc Rohs Compliant: Yes |Vishay 1.5SMC16A-E3/57T RoHS: Compliant Min Qty: 1700 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.2600 / $0.3380 | Buy Now |
|
DISTI #
1.5SMC16A-E3/57T
|
Avnet Americas | 1.5KW,16V 5%,UNIDIR,SMC TVS - Tape and Reel (Alt: 1.5SMC16A-E3/57T) RoHS: Compliant Min Qty: 1700 Package Multiple: 850 Lead time: 9 Weeks, 0 Days Container: Reel | 0 |
|
$0.1532 / $0.1659 | Buy Now |
|
DISTI #
625-1.5SMC16A-E3
|
Mouser Electronics | ESD Protection Diodes / TVS Diodes 1500W 16V Unidirect RoHS: Compliant | 1485 |
|
$0.1660 / $0.4400 | Buy Now |
|
DISTI #
V72:2272_18784924
|
Arrow Electronics | TVS Diode Single Uni-Dir 13.6V 1.5KW 2-Pin SMC T/R Min Qty: 1 Package Multiple: 1 Lead time: 9 Weeks Date Code: 1817 Container: Cut Strips | Americas - 1668 |
|
$0.0808 / $0.1895 | Buy Now |
|
DISTI #
27560405
|
Verical | TVS Diode Single Uni-Dir 13.6V 1.5KW 2-Pin SMC T/R Min Qty: 39 Package Multiple: 1 Date Code: 1817 | Americas - 1668 |
|
$0.1599 / $0.1683 | Buy Now |
|
DISTI #
1.5SMC16A-E3/57T
|
TTI | ESD Protection Diodes / TVS Diodes 1500W 16V Unidirect pbFree: Pb-Free Min Qty: 1700 Package Multiple: 850 Container: Reel | Americas - 0 |
|
$0.2310 / $0.2500 | Buy Now |
|
DISTI #
1.5SMC16A-E3/57T
|
TME | Diode: TVS, 1.5kW, 15.2÷16.8V, unidirectional, SMC, reel,tape Min Qty: 1 | 0 |
|
$0.3090 / $0.3610 | RFQ |
|
DISTI #
1.5SMC16A-E3/57T
|
EBV Elektronik | 15KW16V 5UNIDIRSMC TVS - Tape and Reel (Alt: 1.5SMC16A-E3/57T) RoHS: Compliant Min Qty: 850 Package Multiple: 850 Lead time: 10 Weeks, 0 Days Container: Reel | EBV - 850 |
|
Buy Now |
Part Details for 1.5SMC16A-E3/57T
1.5SMC16A-E3/57T CAD Models
1.5SMC16A-E3/57T Part Data Attributes
|
|
1.5SMC16A-E3/57T
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
1.5SMC16A-E3/57T
Vishay Intertechnologies
Trans Voltage Suppressor Diode, 1500W, 13.6V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Reach Compliance Code | not_compliant | |
| Factory Lead Time | 9 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | EXCELLENT CLAMPING CAPABILITY | |
| Breakdown Voltage-Max | 16.8 V | |
| Breakdown Voltage-Min | 15.2 V | |
| Breakdown Voltage-Nom | 16 V | |
| Clamping Voltage-Max | 22.5 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JEDEC-95 Code | DO-214AB | |
| JESD-30 Code | R-PDSO-C2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Peak Rev Power Dis-Max | 1500 W | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -65 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | UNIDIRECTIONAL | |
| Power Dissipation-Max | 6.5 W | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 13.6 V | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | C BEND | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
Alternate Parts for 1.5SMC16A-E3/57T
This table gives cross-reference parts and alternative options found for 1.5SMC16A-E3/57T. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 1.5SMC16A-E3/57T, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 1.5SMC16A-E3/9AT | Vishay Intertechnologies | $0.3932 | Trans Voltage Suppressor Diode, 1500W, 13.6V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, | 1.5SMC16A-E3/57T vs 1.5SMC16A-E3/9AT |
| 1.5SMC16APBFREE | Central Semiconductor Corp | Check for Price | Trans Voltage Suppressor Diode, | 1.5SMC16A-E3/57T vs 1.5SMC16APBFREE |
| 1.5SMC16AR6G | Taiwan Semiconductor | Check for Price | Trans Voltage Suppressor Diode, 1500W, 13.6V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, GREEN, PLASTIC, SMC, 2 PIN | 1.5SMC16A-E3/57T vs 1.5SMC16AR6G |
| SMCJ1.5KE16AP | Micro Commercial Components | Check for Price | Trans Voltage Suppressor Diode, 1500W, 13.6V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, SMCJ, 2 PIN | 1.5SMC16A-E3/57T vs SMCJ1.5KE16AP |
| 1.5SMC16_R1_10001 | PanJit Semiconductor | Check for Price | Trans Voltage Suppressor Diode, | 1.5SMC16A-E3/57T vs 1.5SMC16_R1_10001 |
| SMCJ1.5KE16A-TP | Micro Commercial Components | Check for Price | Trans Voltage Suppressor Diode, 1500W, 13.6V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, SMCJ, 2 PIN | 1.5SMC16A-E3/57T vs SMCJ1.5KE16A-TP |
| 1.5SMC16T/R7 | PanJit Semiconductor | Check for Price | Trans Voltage Suppressor Diode, 1500W, 12.9V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, ROHS COMPLIANT, PLASTIC, SMC, 2 PIN | 1.5SMC16A-E3/57T vs 1.5SMC16T/R7 |
| 1.5SMC16R6G | Taiwan Semiconductor | Check for Price | Trans Voltage Suppressor Diode, 1500W, 12.9V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, GREEN, PLASTIC, SMC, 2 PIN | 1.5SMC16A-E3/57T vs 1.5SMC16R6G |
| 1.5SMCJ13-T3-LF | Won-Top Electronics Co Ltd | Check for Price | Trans Voltage Suppressor Diode, 1500W, 13V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, ROHS COMPLIANT, PLASTIC, SMC, 2 PIN | 1.5SMC16A-E3/57T vs 1.5SMCJ13-T3-LF |
| 1.5SMC16 | Taiwan Semiconductor | Check for Price | Trans Voltage Suppressor Diode, 1500W, 12.9V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, GREEN, PLASTIC, SMC, 2 PIN | 1.5SMC16A-E3/57T vs 1.5SMC16 |
1.5SMC16A-E3/57T Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for the 1.5SMC16A-E3/57T is between 250°C to 260°C for a maximum of 10 seconds.
-
Yes, the 1.5SMC16A-E3/57T is a high-reliability device, suitable for use in demanding applications such as aerospace, defense, and medical devices.
-
Yes, the 1.5SMC16A-E3/57T can be used in parallel to increase the current rating, but it's essential to ensure that the devices are properly matched and that the overall circuit design is suitable for parallel operation.
-
The typical lead time for the 1.5SMC16A-E3/57T can vary depending on the supplier and the quantity required, but it's usually around 8-12 weeks.
-
Yes, the 1.5SMC16A-E3/57T is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the European Union's directive on the restriction of certain hazardous substances in electrical and electronic equipment.
