Diodes / Transient Suppressors / 1.5SMC12A
Datasheets
1.5SMC12A by:

Trans Voltage Suppressor Diode, 1500W, 10.2V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, ROHS COMPLIANT, PLASTIC, SMC, 2 PIN

Part Details for 1.5SMC12A by PanJit Semiconductor

Results Overview of 1.5SMC12A by PanJit Semiconductor

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

1.5SMC12A Information

1.5SMC12A by PanJit Semiconductor is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Part Details for 1.5SMC12A

1.5SMC12A CAD Models

  • Part Symbol

    Part Symbol

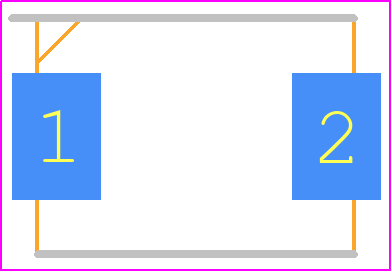

  • Footprint

    footprint

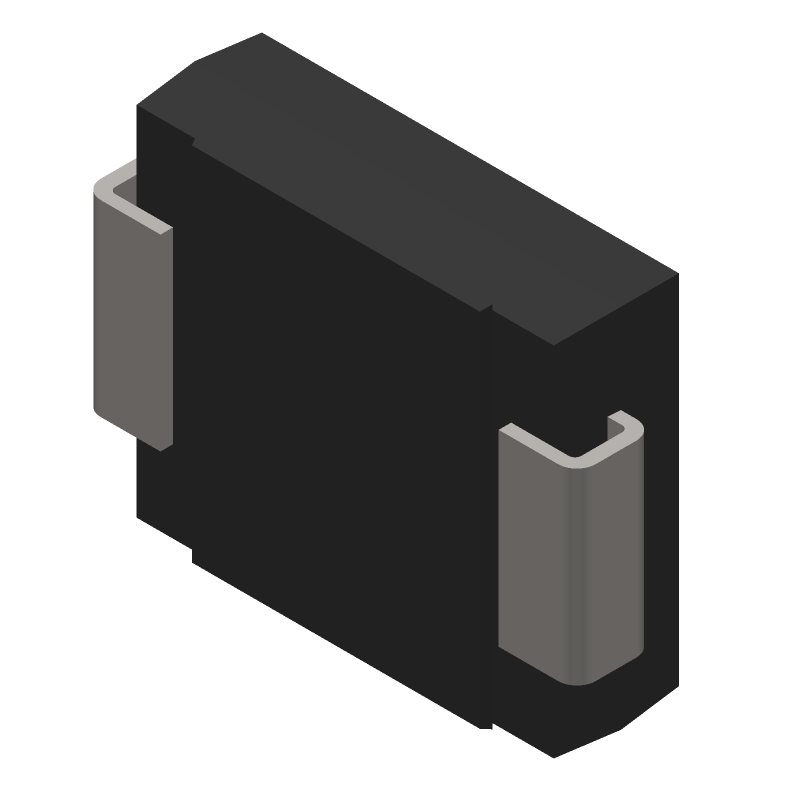

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

1.5SMC12A Part Data Attributes

Parametric Data
1.5SMC12A PanJit Semiconductor
Buy Now Datasheet
Compare Parts:
1.5SMC12A PanJit Semiconductor Trans Voltage Suppressor Diode, 1500W, 10.2V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, ROHS COMPLIANT, PLASTIC, SMC, 2 PIN
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer PANJIT INTERNATIONAL INC
Part Package Code DO-214AB
Package Description ROHS COMPLIANT, PLASTIC, SMC, 2 PIN
Pin Count 2
Reach Compliance Code not_compliant
ECCN Code EAR99
HTS Code 8541.10.00.50
Samacsys Manufacturer PANJIT
Breakdown Voltage-Max 12.6 V
Breakdown Voltage-Min 11.4 V
Breakdown Voltage-Nom 12 V
Clamping Voltage-Max 16.7 V
Configuration SINGLE
Diode Element Material SILICON
Diode Type TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 Code DO-214AB
JESD-30 Code R-PDSO-C2
Non-rep Peak Rev Power Dis-Max 1500 W
Number of Elements 1
Number of Terminals 2
Operating Temperature-Max 150 °C
Operating Temperature-Min -55 °C
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Polarity UNIDIRECTIONAL
Rep Pk Reverse Voltage-Max 10.2 V
Surface Mount YES
Technology AVALANCHE
Terminal Form C BEND
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED

Alternate Parts for 1.5SMC12A

This table gives cross-reference parts and alternative options found for 1.5SMC12A. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 1.5SMC12A, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
1.5SMC12A Bourns Inc $0.1919 Trans Voltage Suppressor Diode, 1500W, 10.2V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, SMC, 2 PIN 1.5SMC12A vs 1.5SMC12A
1.5SMC12T/R13 PanJit Semiconductor Check for Price Trans Voltage Suppressor Diode, 1500W, 9.72V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, ROHS COMPLIANT, PLASTIC, SMC, 2 PIN 1.5SMC12A vs 1.5SMC12T/R13
1.5SMC12R6 Taiwan Semiconductor Check for Price Trans Voltage Suppressor Diode, 1500W, 9.72V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, ROHS COMPLIANT, PLASTIC, SMC, 2 PIN 1.5SMC12A vs 1.5SMC12R6
1.5SMC12T/R7 PanJit Semiconductor Check for Price Trans Voltage Suppressor Diode, 1500W, 9.72V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, ROHS COMPLIANT, PLASTIC, SMC, 2 PIN 1.5SMC12A vs 1.5SMC12T/R7
SMCJ1.5KE12-TP Micro Commercial Components Check for Price Trans Voltage Suppressor Diode 1.5SMC12A vs SMCJ1.5KE12-TP
1.5SMC12A Motorola Semiconductor Products Check for Price Trans Voltage Suppressor Diode, 1500W, 10.2V V(RWM), Unidirectional, 1 Element, Silicon, CASE 403-03, SMC, 2 PIN 1.5SMC12A vs 1.5SMC12A
1.5SMC12 Taiwan Semiconductor Check for Price Trans Voltage Suppressor Diode, 1500W, 9.72V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, GREEN, PLASTIC, SMC, 2 PIN 1.5SMC12A vs 1.5SMC12
1.5SMC12AR7 Taiwan Semiconductor Check for Price Trans Voltage Suppressor Diode, 1500W, 10.2V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, ROHS COMPLIANT, PLASTIC, SMC, 2 PIN 1.5SMC12A vs 1.5SMC12AR7
1.5SMC12 SEMIKRON Check for Price Trans Voltage Suppressor Diode, 1500W, 9.72V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, PLASTIC, SMC, 2 PIN 1.5SMC12A vs 1.5SMC12
1.5SMC12AHE3/9AT Vishay Semiconductors Check for Price DIODE 1500 W, UNIDIRECTIONAL, SILICON, TVS DIODE, DO-214AB, ROHS COMPLIANT, PLASTIC, SMC, 2 PIN, Transient Suppressor 1.5SMC12A vs 1.5SMC12AHE3/9AT
Part Number Manufacturer Composite Price Description Compare
1.5KE12 Promax-Johnton Electronic Corporation Check for Price Trans Voltage Suppressor Diode, 1500W, 9.72V V(RWM), Unidirectional, 1 Element, Silicon, DO-201AE, PLASTIC PACKAGE-2 1.5SMC12A vs 1.5KE12
1N6273ABK Central Semiconductor Corp Check for Price Trans Voltage Suppressor Diode, 1500W, 10.2V V(RWM), Unidirectional, 1 Element, Silicon, DO-201, 1.5SMC12A vs 1N6273ABK
1.5KE12A Rugao Dachang Electronics Co Ltd Check for Price Trans Voltage Suppressor Diode, 1500W, 10.2V V(RWM), Unidirectional, 1 Element, Silicon, DO-27 1.5SMC12A vs 1.5KE12A
1.5SMC12A Vishay Intertechnologies Check for Price Trans Voltage Suppressor Diode, 1500W, 10.2V V(RWM), Unidirectional, 1 Element, DO-214AB, SMC, 2 PIN 1.5SMC12A vs 1.5SMC12A
1.5SMC12HV7G Taiwan Semiconductor Check for Price Trans Voltage Suppressor Diode, 1.5SMC12A vs 1.5SMC12HV7G
1.5KE12 Pulse Electronics Corporation Check for Price Trans Voltage Suppressor Diode, 10.2V V(RWM), Unidirectional, 1.5SMC12A vs 1.5KE12
1.5KE12A-BP Micro Commercial Components Check for Price Trans Voltage Suppressor Diode, 1500W, 10.2V V(RWM), Unidirectional, 1 Element, Silicon, DO-201AE, ROHS COMPLIANT, PLASTIC PACKAGE-2 1.5SMC12A vs 1.5KE12A-BP
1.5SMC12A-M3/9AT Vishay Intertechnologies Check for Price Trans Voltage Suppressor Diode, 1500W, 10.2V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, 1.5SMC12A vs 1.5SMC12A-M3/9AT
1.5KE12PRL STMicroelectronics Check for Price 1500W, UNIDIRECTIONAL, SILICON, TVS DIODE, PLASTIC, CB429, 2 PIN 1.5SMC12A vs 1.5KE12PRL
1.5KE12A-TP-HF Micro Commercial Components Check for Price Trans Voltage Suppressor Diode, 1500W, 10.2V V(RWM), Unidirectional, 1 Element, Silicon, DO-201AE, HALOGEN FREE AND ROHS COMPLIANT, PLASTIC PACKAGE-2 1.5SMC12A vs 1.5KE12A-TP-HF
