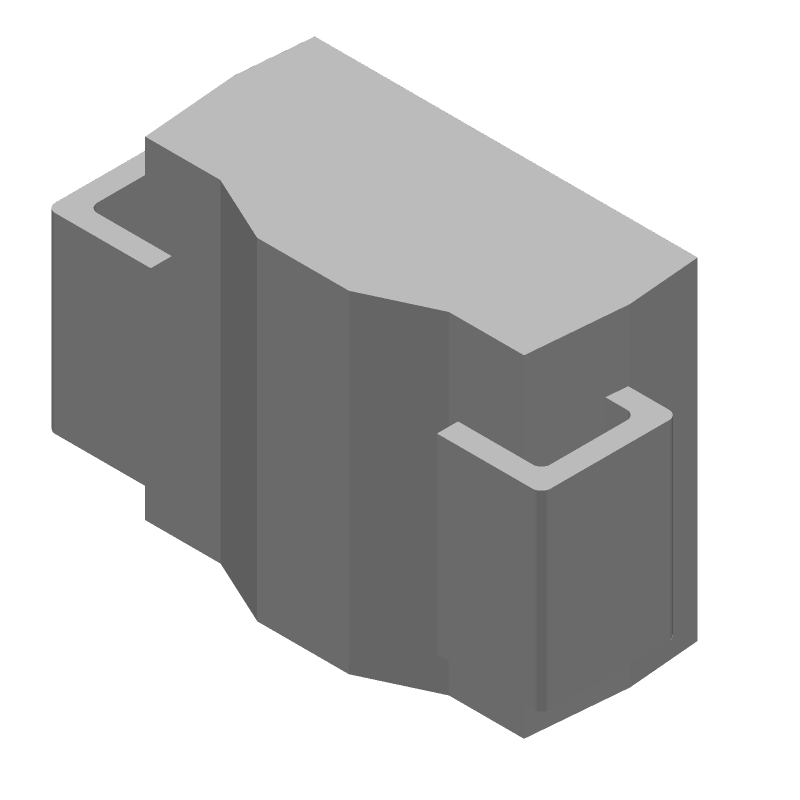

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 1.5SMBJ26A by Bourns Inc
Results Overview of 1.5SMBJ26A by Bourns Inc
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
1.5SMBJ26A Information
1.5SMBJ26A by Bourns Inc is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for 1.5SMBJ26A
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
26AK6947
|
Newark | Dio Tvs Vrwm 26V 1500W Unidir Smb /Tape & Reel - 13" Reel |Bourns 1.5SMBJ26A RoHS: Not Compliant Min Qty: 12000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.2260 / $0.2720 | Buy Now |
|
DISTI #
118-1.5SMBJ26ATR-ND
|
DigiKey | TVS DIODE 26VWM 42.1VC DO214AA Min Qty: 12000 Lead time: 16 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$0.2137 | Buy Now |
|
DISTI #
1.5SMBJ26A
|
Avnet Americas | Diode TVS Single Uni-Dir 26V 1500W 2-Pin DO-214AA (SMB) T/R - Tape and Reel (Alt: 1.5SMBJ26A) RoHS: Not Compliant Min Qty: 12000 Package Multiple: 3000 Lead time: 16 Weeks, 0 Days Container: Reel | 0 |
|
$0.2079 / $0.2289 | Buy Now |
|
DISTI #
652-1.5SMBJ26A
|
Mouser Electronics | ESD Protection Diodes / TVS Diodes DIO TVS VRWM 26V 1500W UNIDIR SMB RoHS: Compliant | 0 |
|
$0.2130 / $1.1000 | Order Now |
|
DISTI #
73793220
|
RS | DIO TVS VRWM 26V 1500W UNIDIR SMBTR13,Tape & Reel - 13 reel Min Qty: 12000 Package Multiple: 1 Lead time: 18 Weeks, 0 Days Container: Bulk | 0 |
|
$0.5500 / $0.6500 | RFQ |
|
|
Onlinecomponents.com | TVS Diode - 26Vrwm -1500W - Unidirectionsl - SMB RoHS: Compliant | 0 |
|
$0.2123 / $0.4446 | Buy Now |
|
DISTI #
1.5SMBJ26A
|
TTI | ESD Protection Diodes / TVS Diodes DIO TVS VRWM 26V 1500W UNIDIR SMB RoHS: Compliant pbFree: Pb-Free Min Qty: 12000 Package Multiple: 3000 Container: Reel | Americas - 0 |
|
$0.2120 | Buy Now |
|
DISTI #
1.5SMBJ26A
|
Avnet Abacus | Diode TVS Single UniDir 26V 1500W 2Pin DO214AA SMB TR - Tape and Reel (Alt: 1.5SMBJ26A) RoHS: Compliant Min Qty: 12000 Package Multiple: 3000 Lead time: 17 Weeks, 0 Days Container: Reel | Abacus - 0 |
|
Buy Now | |
|
|
Master Electronics | TVS Diode - 26Vrwm -1500W - Unidirectionsl - SMB RoHS: Compliant | 0 |
|
$0.2123 / $0.4446 | Buy Now |
Part Details for 1.5SMBJ26A
1.5SMBJ26A CAD Models
1.5SMBJ26A Part Data Attributes
|
|
1.5SMBJ26A
Bourns Inc
Buy Now
Datasheet
|
Compare Parts:
1.5SMBJ26A
Bourns Inc
Trans Voltage Suppressor Diode, 1500W, 26V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AA, SMB, 2 PIN
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | BOURNS INC | |
| Package Description | SMB, 2 PIN | |
| Reach Compliance Code | not_compliant | |
| Factory Lead Time | 16 Weeks | |
| Samacsys Manufacturer | Bourns | |
| Additional Feature | PRSM-MIN | |
| Breakdown Voltage-Max | 31.9 V | |
| Breakdown Voltage-Min | 28.9 V | |
| Breakdown Voltage-Nom | 30.4 V | |
| Clamping Voltage-Max | 42.1 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JEDEC-95 Code | DO-214AA | |
| JESD-30 Code | R-PDSO-C2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Peak Rev Power Dis-Max | 1500 W | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Polarity | UNIDIRECTIONAL | |
| Reference Standard | IEC-61000-4-2, 4-4, 4-5; UL RECOGNIZED | |
| Rep Pk Reverse Voltage-Max | 26 V | |
| Reverse Current-Max | 1 µA | |
| Reverse Test Voltage | 26 V | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | C BEND | |
| Terminal Position | DUAL |
