Diodes / Transient Suppressors / 1.5KE400CARL
Datasheets
1.5KE400CARL by: STMicroelectronics

1500 W, TVS in DO-201

Part Details for 1.5KE400CARL by STMicroelectronics

Results Overview of 1.5KE400CARL by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

1.5KE400CARL Information

1.5KE400CARL by STMicroelectronics is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Price & Stock for 1.5KE400CARL

Part # Distributor Description Stock Price Buy
DISTI # 06X1219
Newark Tvs Diode, Bidir, 706V, Do-201, Product Range:Transil 1.5Ke Series, Tvs Polarity:Bidirectional, Reverse Standoff Voltage:342V, Clamping Voltage Max:706V, Diode Case Style:Do-201, No. Of Pins:2Pins, Minimum Breakdown Voltage:380V Rohs Compliant: Yes |Stmicroelectronics 1.5KE400CARL RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 3203
  • 1 $1.4200
  • 10 $1.2000
  • 100 $0.9700
  • 500 $0.8500
  • 1,000 $0.7890
  • 3,800 $0.7270
  • 11,400 $0.6480
$0.6480 / $1.4200 Buy Now
DISTI # 497-6608-1-ND
DigiKey TVS DIODE 342VWM 706VC DO201 Min Qty: 1 Lead time: 25 Weeks Container: Cut Tape (CT), Tape & Reel (TR) 4092
In Stock
  • 1 $1.3300
  • 10 $0.9850
  • 100 $0.6910
  • 500 $0.5643
  • 1,900 $0.4610
$0.4610 / $1.3300 Buy Now
DISTI # 1.5KE400CARL
Avnet Americas Diode TVS Single Bi-Dir 342V 1.5KW 2-Pin DO-201 T/R - Tape and Reel (Alt: 1.5KE400CARL) RoHS: Compliant Min Qty: 1900 Package Multiple: 1900 Lead time: 25 Weeks, 0 Days Container: Reel 1900
  • 1,900 $0.3494
  • 3,800 $0.3256
  • 7,600 $0.3200
  • 11,400 $0.3144
  • 15,200 $0.3089
$0.3089 / $0.3494 Buy Now
DISTI # 06X1219
Avnet Americas Diode TVS Single Bi-Dir 342V 1.5KW 2-Pin DO-201 T/R - Bulk (Alt: 06X1219) RoHS: Compliant Min Qty: 5 Package Multiple: 5 Lead time: 111 Weeks, 0 Days Container: Bulk 56 Partner Stock
  • 1 $1.4700
  • 10 $1.1200
  • 100 $0.8210
  • 500 $0.6900
  • 1,000 $0.6510
$0.6510 / $1.4700 Buy Now
DISTI # 511-1.5KE400CARL
Mouser Electronics ESD Protection Diodes / TVS Diodes 1500W 400V Bidirect RoHS: Compliant 788
  • 1 $1.3300
  • 10 $0.9850
  • 100 $0.6910
  • 500 $0.5600
  • 1,000 $0.4820
  • 1,900 $0.4610
$0.4610 / $1.3300 Buy Now
STMicroelectronics 1500 W, 342 V TVS in DO-201 RoHS: Compliant Min Qty: 1 788
  • 1 $1.3000
  • 10 $0.9700
  • 100 $0.6800
  • 500 $0.5500
$0.5500 / $1.3000 Buy Now
Velocity Electronics Our Stock 1310
RFQ
DISTI # 1.5KE400CARL
Avnet Silica Diode TVS Single BiDir 342V 15KW 2Pin DO201 TR (Alt: 1.5KE400CARL) RoHS: Compliant Min Qty: 1900 Package Multiple: 1900 Lead time: 17 Weeks, 0 Days Silica - 3800
Buy Now
DISTI # 1.5KE400CARL
EBV Elektronik Diode TVS Single BiDir 342V 15KW 2Pin DO201 TR (Alt: 1.5KE400CARL) RoHS: Compliant Min Qty: 1900 Package Multiple: 1900 Lead time: 26 Weeks, 0 Days EBV - 0
Buy Now

Part Details for 1.5KE400CARL

1.5KE400CARL CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

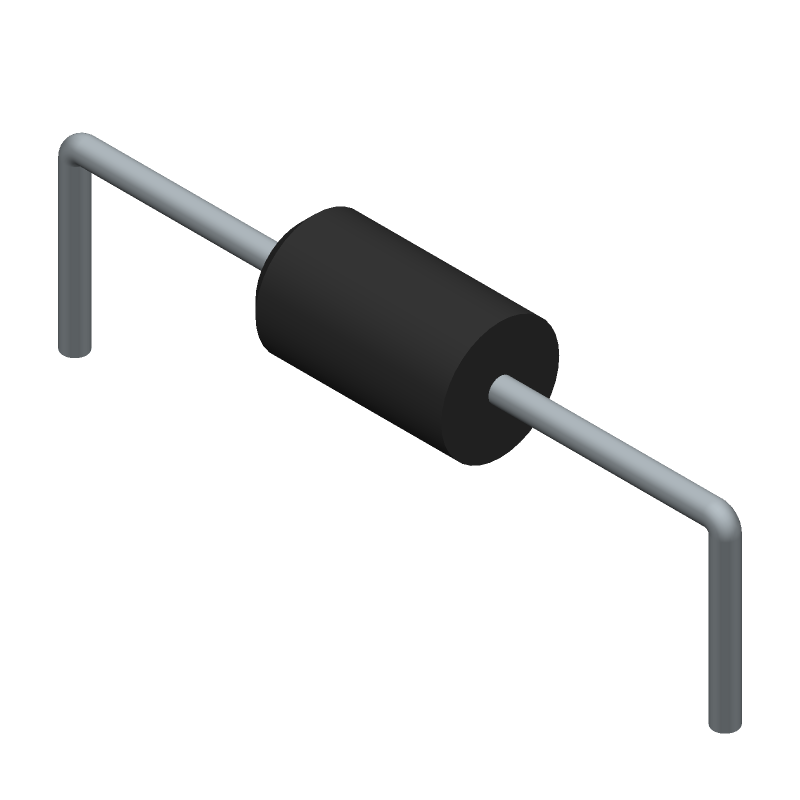

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

1.5KE400CARL Part Data Attributes

Parametric Data
1.5KE400CARL STMicroelectronics
Buy Now Datasheet
Compare Parts:
1.5KE400CARL STMicroelectronics 1500 W, TVS in DO-201
Part Life Cycle Code Active
Ihs Manufacturer STMICROELECTRONICS
Part Package Code DO-201
Package Description O-PALF-W2
Pin Count 2
Reach Compliance Code compliant
Factory Lead Time 25 Weeks
Samacsys Manufacturer STMicroelectronics
Additional Feature UL RECOGNIZED
Breakdown Voltage-Max 420 V
Breakdown Voltage-Min 380 V
Breakdown Voltage-Nom 400 V
Case Connection ISOLATED
Clamping Voltage-Max 706 V
Configuration SINGLE
Diode Capacitance-Min 195 pF
Diode Element Material SILICON
Diode Type TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 Code DO-201
JESD-30 Code O-PALF-W2
JESD-609 Code e3
Moisture Sensitivity Level NOT APPLICABLE
Non-rep Peak Rev Power Dis-Max 1500 W
Number of Elements 1
Number of Terminals 2
Operating Temperature-Max 175 °C
Package Body Material PLASTIC/EPOXY
Package Shape ROUND
Package Style LONG FORM
Peak Reflow Temperature (Cel) NOT SPECIFIED
Polarity BIDIRECTIONAL
Power Dissipation-Max 5 W
Qualification Status Not Qualified
Rep Pk Reverse Voltage-Max 342 V
Reverse Current-Max 5 µA
Surface Mount NO
Technology AVALANCHE
Terminal Finish MATTE TIN
Terminal Form WIRE
Terminal Position AXIAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED

Alternate Parts for 1.5KE400CARL

This table gives cross-reference parts and alternative options found for 1.5KE400CARL. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 1.5KE400CARL, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
1.5KE400CA/54 Vishay Semiconductors Check for Price Transient Suppressor, 1.5KE400CARL vs 1.5KE400CA/54
Part Number Manufacturer Composite Price Description Compare
1V5KE400CA Fairchild Semiconductor Corporation Check for Price Trans Voltage Suppressor Diode, 1500W, 342V V(RWM), Bidirectional, 1 Element, Silicon, DO-201AE, DO-201AE, 2 PIN 1.5KE400CARL vs 1V5KE400CA
1.5KE400CA-G Sensitron Semiconductors Check for Price Trans Voltage Suppressor Diode, 1500W, 342V V(RWM), Bidirectional, 1 Element, Silicon, DO-201AE, LEAD FREE, PLASTIC PACKAGE-2 1.5KE400CARL vs 1.5KE400CA-G
1.5KE400-G Sensitron Semiconductors Check for Price Trans Voltage Suppressor Diode, 1500W, 324V V(RWM), Unidirectional, 1 Element, Silicon, DO-201AE, LEAD FREE, PLASTIC PACKAGE-2 1.5KE400CARL vs 1.5KE400-G
1.5KE400C-G Sensitron Semiconductors Check for Price Trans Voltage Suppressor Diode, 1500W, 324V V(RWM), Bidirectional, 1 Element, Silicon, DO-201AE, LEAD FREE, PLASTIC PACKAGE-2 1.5KE400CARL vs 1.5KE400C-G
1.5KE400CAB Littelfuse Inc Check for Price Trans Voltage Suppressor Diode, 1500W, Bidirectional, 1 Element, Silicon, DO-201AD, PLASTIC, AXIAL PACKAGE-2 1.5KE400CARL vs 1.5KE400CAB
1.5KE400-T3 Sensitron Semiconductors Check for Price Trans Voltage Suppressor Diode, 1500W, Unidirectional, 1 Element, Silicon, DO-201AE, PLASTIC PACKAGE-2 1.5KE400CARL vs 1.5KE400-T3
1.5KE400CB Littelfuse Inc Check for Price Trans Voltage Suppressor Diode, 1500W, 342V V(RWM), Bidirectional, 1 Element, Silicon, DO-201, HALOGEN FREE AND ROHS COMPLIANT, PLASTIC PACKAGE-2 1.5KE400CARL vs 1.5KE400CB
1.5KE400-A Diodes Incorporated Check for Price 1500W, UNIDIRECTIONAL, SILICON, TVS DIODE 1.5KE400CARL vs 1.5KE400-A
1.5KE400C-B Littelfuse Inc Check for Price 1500W, BIDIRECTIONAL, SILICON, TVS DIODE, DO-201, HALOGEN FREE AND ROHS COMPLIANT, PLASTIC PACKAGE-2 1.5KE400CARL vs 1.5KE400C-B
1.5KE400C-A Diodes Incorporated Check for Price 1500W, BIDIRECTIONAL, SILICON, TVS DIODE 1.5KE400CARL vs 1.5KE400C-A
