Connectors / Combination Line Connectors / 1-640518-0
Datasheets

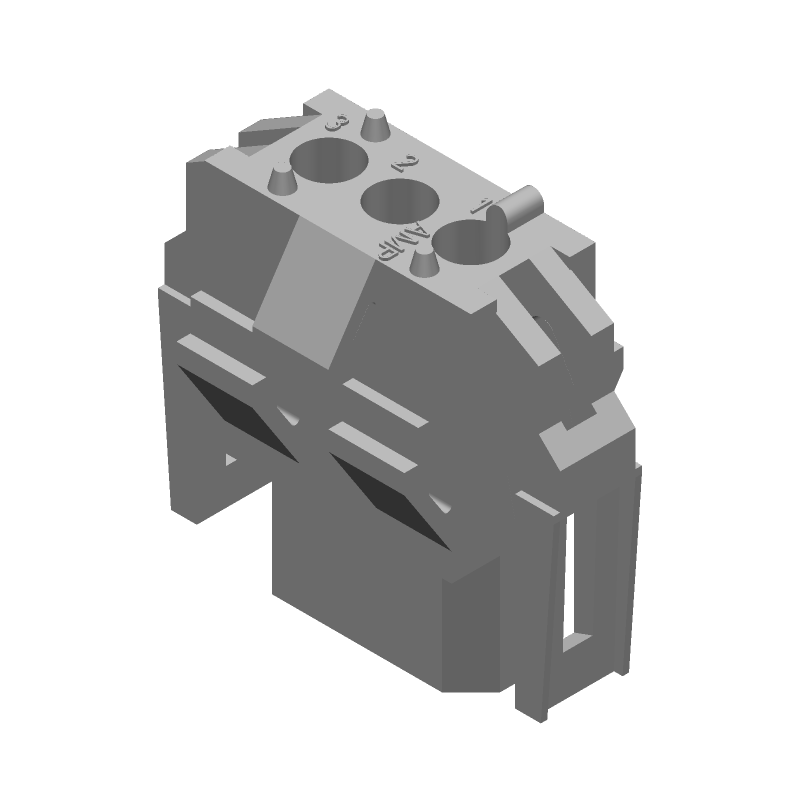

1-640518-0 by: TE Connectivity

03P MR II PLUG HSG V0 RED

Part Details for 1-640518-0 by TE Connectivity

Results Overview of 1-640518-0 by TE Connectivity

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

1-640518-0 Information

1-640518-0 by TE Connectivity is a Combination Line Connector.
Combination Line Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for 1-640518-0

Part # Distributor Description Stock Price Buy
DISTI # 89F2108
Newark Plug & Socket Housing, Plug, Nylon, Product Range:Mr Series, Gender:Plug, No. Of Positions:3Positions, Pitch Spacing:4.19Mm, For Use With:Miniature Rectangular Connectors, Colour:Red, Connector Mounting:Free Hanging, Material:Nylon Rohs Compliant: Yes |Amp Te Connectivity 1-640518-0 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 1826
  • 1 $2.3700
  • 10 $1.9100
  • 25 $1.8900
  • 50 $1.8700
  • 100 $1.8600
  • 500 $1.7600
$1.7600 / $2.3700 Buy Now
DISTI # A14111-ND
DigiKey CONN PLUG HSG 3POS 4.20MM Min Qty: 1 Lead time: 16 Weeks Container: Bulk 24965
In Stock
  • 1 $2.3700
  • 10 $2.0150
  • 25 $1.8884
  • 50 $1.7982
  • 100 $1.7124
  • 250 $1.6051
  • 500 $1.5285
  • 1,000 $1.4555
  • 2,500 $1.4511
$1.4511 / $2.3700 Buy Now
DISTI # 1-640518-0
Avnet Americas Connector Housing, MR, Receptacle, 3 Ways, 4.19 mm, Miniature Rectangular Connectors - Bulk (Alt: 1-640518-0) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 11 Weeks, 0 Days Container: Bulk 840
  • 1 $1.4695
  • 10 $1.4511
  • 30 $1.4280
  • 50 $1.3932
  • 100 $1.3658
$1.3658 / $1.4695 Buy Now
DISTI # 89F2108
Avnet Americas Connector Housing, MR, Receptacle, 3 Ways, 4.19 mm, Miniature Rectangular Connectors - Bulk (Alt: 89F2108) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 13 Weeks, 3 Days Container: Bulk 1826 Partner Stock
  • 1 $1.8100
  • 10 $1.6400
  • 25 $1.5900
  • 50 $1.5400
  • 100 $1.5000
$1.5000 / $1.8100 Buy Now
DISTI # 571-16405180
Mouser Electronics Pin & Socket Connectors 3CKT IN LINE PLUG RoHS: Compliant 5103
  • 1 $2.1300
  • 10 $1.8100
  • 25 $1.5700
  • 100 $1.4800
  • 250 $1.4500
$1.4500 / $2.1300 Buy Now
DISTI # E02:0323_02364076
Arrow Electronics Conn Housing PL 3 POS 4.19mm Crimp ST Panel Mount Black Box RoHS: Compliant Min Qty: 2000 Package Multiple: 1 Lead time: 22 Weeks Date Code: 2402 Europe - 2000
  • 2,000 $1.3718
  • 2,500 $1.3617
$1.3617 / $1.3718 Buy Now
DISTI # V36:1790_11746378
Arrow Electronics Conn Housing PL 3 POS 4.19mm Crimp ST Panel Mount Black Box RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 16 Weeks Date Code: 2426 Americas - 1790
  • 1 $1.9650
  • 10 $1.6990
  • 25 $1.4900
  • 50 $1.4770
  • 100 $1.4140
  • 500 $1.3670
$1.3670 / $1.9650 Buy Now
DISTI # 70083741
RS Connector Soft Shell 250 V 9 A (Max.) 3 Position, Nylon Brick Black In-Line Plug Min Qty: 1 Package Multiple: 1 Lead time: 4 Weeks, 0 Days Container: Bulk 2219
  • 1 $2.5100
  • 50 $2.2600
  • 100 $2.1300
  • 250 $2.0600
  • 500 $1.9800
$1.9800 / $2.5100 Buy Now
TE Connectivity 03P MR II PLUG HSG Connector Product Type: Housing Connector & Housing Type: Plug Mating Alignment: With Mating Alignment Type: Polarization Mating Retention: With Housing Plug With Polarization | Standard Rectangular Connector | Part Number: 1-640518-0 | Internal Number: 1-640518-0 | TE Connectivity RoHS: Compliant Min Qty: 1 24965
  • 1 $4.5000
  • 10 $4.3200
  • 25 $4.1400
  • 50 $3.9600
  • 100 $3.7800
$3.7800 / $4.5000 Buy Now
DISTI # AMP1-640518-0
Heilind Electronics 03P MR II PLUG HSG V0 BLK Americas - 10849 in Stock
31500 On Order
  • 1 $1.5484
  • 150 $1.3026
  • 350 $1.2625
  • 650 $1.2434
  • 1,250 $1.2249
$1.2249 / $1.5484 Buy Now
Onlinecomponents.com Connector Housing - MR Series - Receptacle - 3 Ways - 4.19 mm - Miniature Rectangular Connectors. RoHS: Compliant 15476 In Stock
  • 10 $2.0200
  • 100 $1.3300
  • 250 $1.2300
  • 500 $1.1600
  • 1,000 $1.1400
$1.1400 / $2.0200 Buy Now
DISTI # 51887816
Verical Conn Housing PL 3 POS 4.19mm Crimp ST Panel Mount Black Box RoHS: Compliant Min Qty: 30 Package Multiple: 10 Date Code: 1710 Americas - 15340
  • 30 $2.6260
  • 100 $1.7290
  • 250 $1.5990
  • 500 $1.5080
  • 1,000 $1.4820
$1.4820 / $2.6260 Buy Now
DISTI # 80317438
Verical Conn Housing PL 3 POS 4.19mm Crimp ST Panel Mount Black Box RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Date Code: 2402 Americas - 2000
  • 2,000 $1.6493
$1.6493 Buy Now
DISTI # 84986262
Verical Conn Housing PL 3 POS 4.19mm Crimp ST Panel Mount Black Box RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 2426 Americas - 1790
  • 5 $1.9650
  • 10 $1.6990
  • 25 $1.4900
  • 50 $1.4770
  • 100 $1.4140
  • 500 $1.3670
$1.3670 / $1.9650 Buy Now
DISTI # 11589202
Verical Conn Housing PL 3 POS 4.19mm Crimp ST Panel Mount Black Box RoHS: Compliant Min Qty: 26 Package Multiple: 1 Americas - 50
  • 26 $2.4400
$2.4400 Buy Now
Bristol Electronics   153
RFQ
Bristol Electronics   38
RFQ
Bristol Electronics   22
RFQ
Quest Components COMBINATION LINE CONNECTOR, 3 CONTACT(S), FEMALE, CRIMP TERMINAL, PLUG 320
  • 1 $4.0000
  • 69 $2.0000
  • 151 $1.8500
$1.8500 / $4.0000 Buy Now
Quest Components COMBINATION LINE CONNECTOR, 3 CONTACT(S), FEMALE, CRIMP TERMINAL, PLUG 30
  • 1 $2.8000
  • 3 $2.1000
  • 13 $1.7500
$1.7500 / $2.8000 Buy Now
Quest Components COMBINATION LINE CONNECTOR, 3 CONTACT(S), FEMALE, CRIMP TERMINAL, PLUG 22
  • 1 $2.2875
  • 3 $2.1045
  • 13 $1.8300
$1.8300 / $2.2875 Buy Now
Quest Components COMBINATION LINE CONNECTOR, 3 CONTACT(S), FEMALE, CRIMP TERMINAL, PLUG 3
  • 1 $2.4840
  • 3 $1.8630
$1.8630 / $2.4840 Buy Now
DISTI # 1-640518-0
TTI Pin & Socket Connectors 3CKT IN LINE PLUG RoHS: Compliant pbFree: Pb-Free Min Qty: 3 Package Multiple: 1 Container: Each Americas - 19005
In Stock
  • 3 $1.6700
  • 10 $1.5900
  • 50 $1.4100
  • 150 $1.3800
  • 250 $1.3200
  • 500 $1.2700
  • 1,000 $1.2500
$1.2500 / $1.6700 Buy Now
DISTI # 1-640518-0
IBS Electronics CONNECTOR SOFT SHELL 250 V 9 A (MAX.) 3 NYLON BRICK RED IN-LINE PLUG Min Qty: 30 Package Multiple: 1 15398
  • 30 $2.6260
  • 100 $1.7290
  • 250 $1.5990
  • 500 $1.5080
  • 1,000 $1.4820
  • 5,000 $1.7750
  • 10,000 $1.5875
  • 25,000 $1.3750
  • 50,000 $1.2875
$1.2875 / $2.6260 Buy Now
DISTI # AMP1-640518-0
Interstate Connecting Components 03P MR II PLUG HSG V0 BLK 1808
5250 On Order
  • 1 $1.5484
  • 150 $1.3026
  • 350 $1.2625
  • 650 $1.2434
  • 1,250 $1.2249
$1.2249 / $1.5484 Buy Now
Powell Electronics MR MIN CRCP CONN HSG Min Qty: 1 21
  • 1 $5.7044
  • 2,000 $3.9931
  • 5,000 $3.9242
  • 10,000 $3.5111
  • 25,000 $3.0292
$3.0292 / $5.7044 Buy Now
DISTI # 000000000000660234
Sager Pin & Socket Connectors 3CKT IN LINE PLUG Min Qty: 1 0
  • 1 $1.6100
  • 86 $1.5500
  • 215 $1.4900
  • 431 $1.4500
  • 861 $1.4300
$1.4300 / $1.6100 Buy Now
DISTI # 1-640518-0
Avnet Abacus Connector Housing MR Receptacle 3 Ways 419 mm Miniature Rectangular Connectors (Alt: 1-640518-0) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 24 Weeks, 0 Days Abacus - 0
Buy Now
DISTI # 1-640518-0
Avnet Abacus Connector Housing MR Receptacle 3 Ways 419 mm Miniature Rectangular Connectors (Alt: 1-640518-0) RoHS: Compliant Min Qty: 65 Package Multiple: 1 Lead time: 26 Weeks, 0 Days Abacus - 0
Buy Now
DISTI # 1-640518-0
FDH Electronics Connector Min Qty: 1 52
  • 1 $2.0730
  • 5 $1.9320
  • 10 $1.7270
  • 25 $1.7010
  • 50 $1.7010
  • 100 $1.6760
  • 250 $1.6290
  • 500 $1.5830
  • 1,000 $1.5620
  • 2,500 $1.5620
  • 10,000 $1.5620
$1.5620 / $2.0730 Buy Now RFQ
Master Electronics Connector Housing - MR Series - Receptacle - 3 Ways - 4.19 mm - Miniature Rectangular Connectors. RoHS: Compliant 15476 In Stock
  • 10 $2.0200
  • 100 $1.3300
  • 250 $1.2300
  • 500 $1.1600
  • 1,000 $1.1400
$1.1400 / $2.0200 Buy Now
New Advantage Corporation   RoHS: Compliant Min Qty: 1 Package Multiple: 1 191
  • 1 $2.9000
$2.9000 Buy Now

Part Details for 1-640518-0

1-640518-0 Part Data Attributes

Parametric Data
1-640518-0 TE Connectivity
Buy Now Datasheet
Compare Parts:
1-640518-0 TE Connectivity 03P MR II PLUG HSG V0 RED
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TE CONNECTIVITY LTD
Package Description ROHS COMPLIANT
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8536.69.40.30
Factory Lead Time 13 Weeks, 3 Days
Samacsys Manufacturer TE Connectivity
Additional Feature COMPATIBLE CONTACTS: 350968-1; 350968-1
Body Breadth 0.51 inch
Body Depth 0.51 inch
Body Length 0.84 inch
Body/Shell Style PLUG
Connector Type COMBINATION LINE CONNECTOR
Contact Design PREASSEM CONN
Contact Finish Mating NOT APPLICABLE
Contact Gender FEMALE
Contact Material NOT APPLICABLE
Contact Pattern RECTANGULAR
Contact Resistance 5 mΩ
Contact Style RND PIN-SKT
DIN Conformance NO
Durability 25 Cycles
EMI Shielded NO
Empty Shell YES
Filter Feature NO
IEC Conformance NO
Insertion Force-Max 4.448 N
Insulation Diameter-Min 0.115 inch
Insulation Resistance 100000000 Ω
Insulator Color BLACK
Insulator Material POLYAMIDE66
MIL Conformance NO
Mains Connector Rating 9A
Mating Contact Pitch 0.165 inch
Mating Contact Row Spacing 0.165 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts NO
Mounting Option 1 LOCKING
Mounting Option 2 LOCKING
Mounting Type PANEL
Number Of Connectors ONE
Number of Ports 1
Number of Rows Loaded 1
Operating Temperature-Max 85 °C
Operating Temperature-Min -55 °C
Option GENERAL PURPOSE
Panel Mount NO
Polarization Key POLARIZED HOUSING
Rated Current (Signal) 9 A
Rated Voltage 250 V
Reference Standard CSA, UL
Terminal Pitch 4.2 mm
Termination Type CRIMP
Total Number of Contacts 3
UL Flammability Code 94V-0
Wire Size-Max 18 AWG
Wire Size-Min 26 AWG
Withdrawl Force-Min 1.112 N

1-640518-0 Related Parts

1-640518-0 Frequently Asked Questions (FAQ)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals.

  • Yes, the connector is suitable for outdoor use, but it's recommended to use a sealant or conformal coating to protect it from environmental factors.

  • Yes, the connector is designed to withstand vibrations up to 10G (10 Hz to 2000 Hz) according to IEC 60068-2-6.

  • The maximum operating temperature range is -40°C to 125°C (-40°F to 257°F).

  • Yes, the connector is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant.
