1-172520-2 Information
1-172520-2 by TE Connectivity is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for 1-172520-2
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
16R9503
|
Newark | 12P 2.5Mm Mini Amp-In Hdr Hsg |Amp Te Connectivity 1-172520-2 RoHS: Not Compliant Min Qty: 16000 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$0.2160 | Buy Now |
|
DISTI #
1-172520-2
|
Avnet Americas | Conn Housing PL 12 POS 2.5mm Crimp ST Cable Mount - Bulk (Alt: 1-172520-2) RoHS: Compliant Min Qty: 16000 Package Multiple: 16000 Lead time: 111 Weeks, 0 Days Container: Bulk | 0 |
|
RFQ | |
|
|
Bristol Electronics | Min Qty: 3 | 1587 |
|
$0.6950 / $2.1060 | Buy Now |
|
|
Quest Components | BOARD CONNECTOR, 12 CONTACT(S), 1 ROW(S), MALE, STRAIGHT, CRIMP TERMINAL | 1269 |
|
$0.7722 / $2.8080 | Buy Now |
|
DISTI #
000000000000876470
|
Sager | Headers & Wire Housings HEADER HOUSING 12P 2.5MM | 0 |
|
Buy Now | |
|
DISTI #
1-172520-2
|
Avnet Abacus | Conn Housing PL 12 POS 25mm Crimp ST Cable Mount (Alt: 1-172520-2) RoHS: Compliant Min Qty: 8000 Package Multiple: 1 Lead time: 21 Weeks, 0 Days | Abacus - 0 |
|
Buy Now | |
|
DISTI #
1-172520-2
|
Avnet Abacus | Conn Housing PL 12 POS 25mm Crimp ST Cable Mount (Alt: 1-172520-2) RoHS: Compliant Min Qty: 16000 Package Multiple: 16000 Lead time: 19 Weeks, 0 Days | Abacus - 0 |
|
Buy Now |
Part Details for 1-172520-2

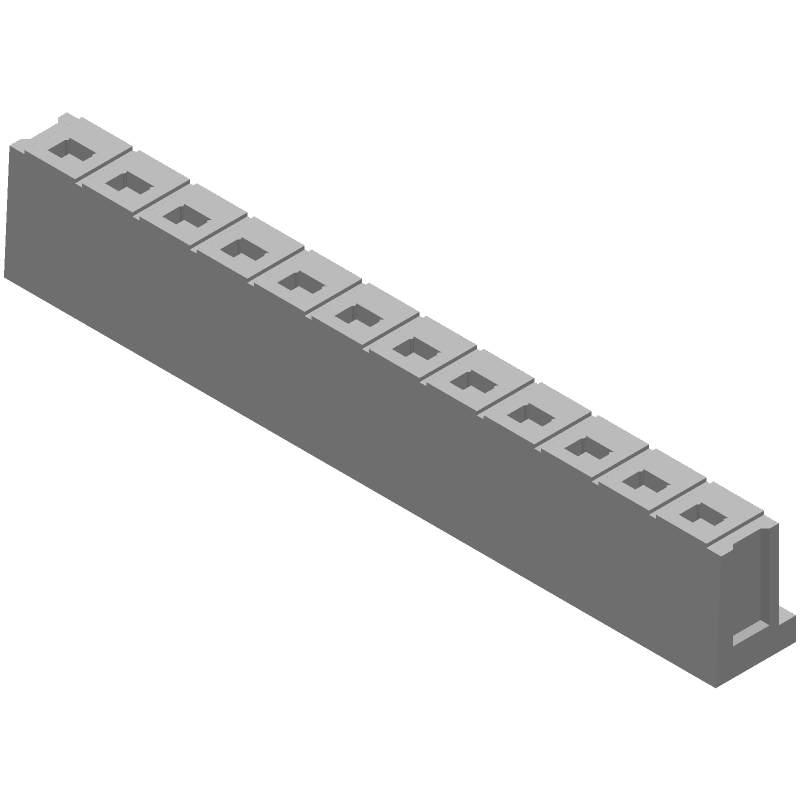

1-172520-2 CAD Models
1-172520-2 Part Data Attributes
|
|
1-172520-2
TE Connectivity
Buy Now
Datasheet
|
Compare Parts:
1-172520-2
TE Connectivity
12P 2.5MM MINI AMP-IN HDR HSG
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TE CONNECTIVITY LTD | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 111 Weeks | |
| Samacsys Manufacturer | TE Connectivity | |
| Additional Feature | LOW PROFILE | |
| Body Depth | 0.14 inch | |
| Body Length | 1.22 inch | |
| Body/Shell Style | PLUG | |
| Connector Type | BOARD CONNECTOR | |
| Contact Finish Mating | NOT SPECIFIED | |
| Contact Gender | MALE | |
| Contact Material | NOT SPECIFIED | |
| Contact Pattern | RECTANGULAR | |
| DIN Conformance | NO | |
| EMI Shielded | NO | |
| Empty Shell | YES | |
| Filter Feature | NO | |
| IEC Conformance | NO | |
| Insulator Color | NATURAL | |
| Insulator Material | POLYAMIDE66 | |
| MIL Conformance | NO | |
| Mains Connector Rating | 115/230VAC | |
| Mixed Contacts | NO | |
| Mounting Style | STRAIGHT | |
| Mounting Type | CABLE | |
| Number Of Connectors | ONE | |
| Number of Ports | 1 | |
| Number of Rows Loaded | 1 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Option | GENERAL PURPOSE | |
| Panel Mount | NO | |
| Rated Voltage | 250 V | |
| Reference Standard | UL | |
| Terminal Pitch | 2.5 mm | |
| Termination Type | CRIMP | |
| Total Number of Contacts | 12 | |
| UL Flammability Code | 94V-0 | |
| Wire Size-Max | 22 AWG | |
| Wire Size-Min | 30 AWG |
